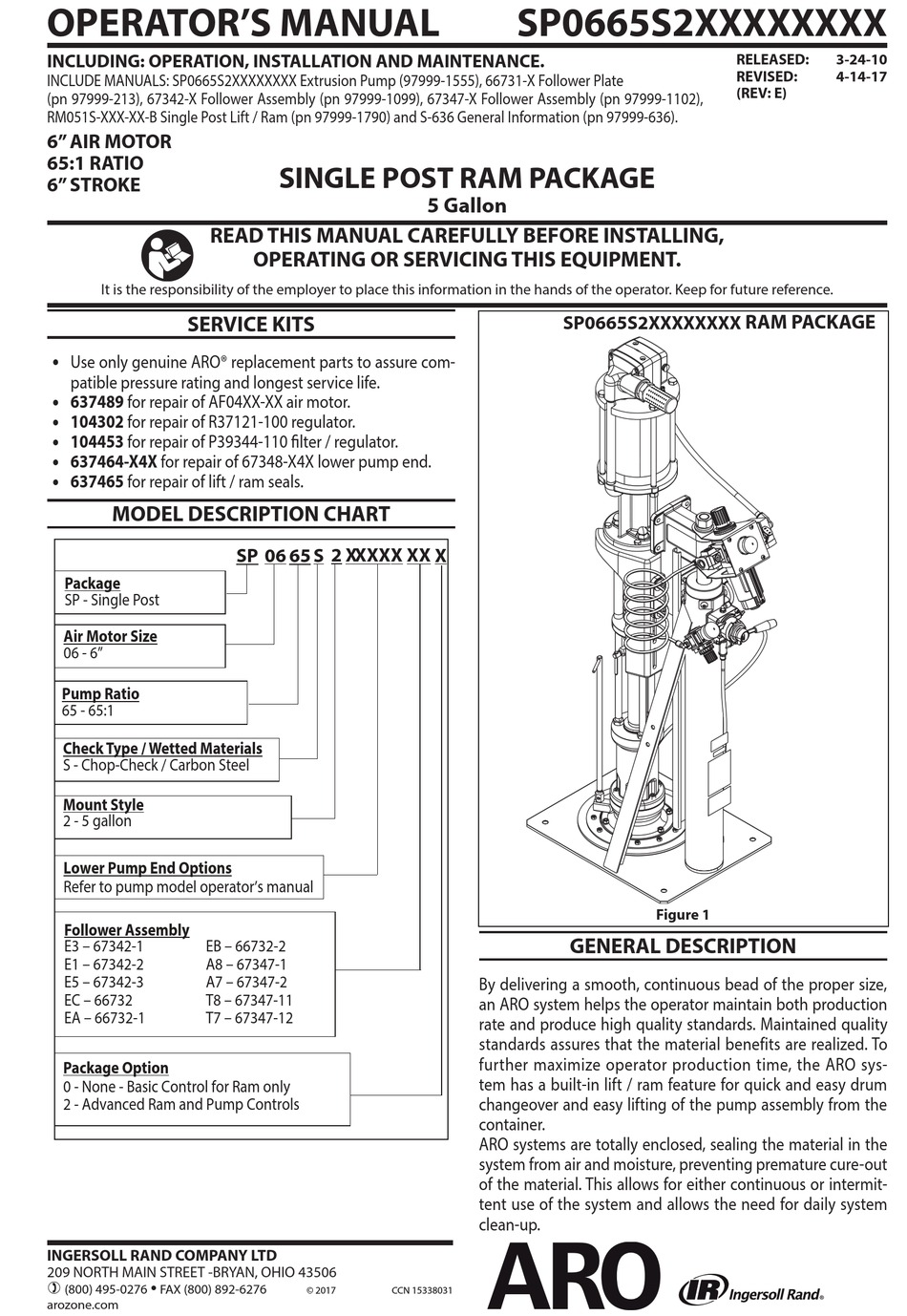

Ingersoll-Rand ARO SP0665S2 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE.
INCLUDE MANUALS: SP0665S2XXXXXXXX Extrusion Pump (97999-1555), 66731-X Follower Plate
(pn 97999-213), 67342-X Follower Assembly (pn 97999-1099), 67347-X Follower Assembly (pn 97999-1102),
RM051S-XXX-XX-B Single Post Lift / Ram (pn 97999-1790) and S-636 General Information (pn 97999-636).
6" AIR MOTOR
65:1 RATIO
6" STROKE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO® replacement parts to assure com-
y
patible pressure rating and longest service life.
637489 for repair of AF04XX-XX air motor.
y
104302 for repair of R37121-100 regulator.
y
104453 for repair of P39344-110 filter / regulator.
y
637464-X4X for repair of 67348-X4X lower pump end.
y
637465 for repair of lift / ram seals.
y
MODEL DESCRIPTION CHART
Package
SP - Single Post
Air Motor Size
06 - 6"
Pump Ratio
65 - 65:1
Check Type / Wetted Materials
S - Chop-Check / Carbon Steel
Mount Style
2 - 5 gallon
Lower Pump End Options
Refer to pump model operator's manual
Follower Assembly
E3 – 67342-1 EB – 66732-2
E1 – 67342-2 A8 – 67347-1
E5 – 67342-3 A7 – 67347-2
EC – 66732 T8 – 67347-11
EA – 66732-1 T7 – 67347-12
Package Option
0 - None - Basic Control for Ram only
2 - Advanced Ram and Pump Controls
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET -BRYAN, OHIO 43506


(800) 495-0276 FAX (800) 892-6276
arozone.com
SINGLE POST RAM PACKAGE
OPERATING OR SERVICING THIS EQUIPMENT.
06 S 2 X X X X X X
SP 65
© 2017 CCN 15338031
SP0665S2XXXXXXXX
5 Gallon
SP0665S2XXXXXXXX
X X

GENERAL DESCRIPTION

By delivering a smooth, continuous bead of the proper size,
an ARO system helps the operator maintain both production
rate and produce high quality standards. Maintained quality
standards assures that the material benefits are realized. To
further maximize operator production time, the ARO sys-
tem has a built-in lift / ram feature for quick and easy drum
changeover and easy lifting of the pump assembly from the
container.
ARO systems are totally enclosed, sealing the material in the
system from air and moisture, preventing premature cure-out
of the material. This allows for either continuous or intermit-
tent use of the system and allows the need for daily system
clean-up.
RELEASED:
REVISED:
(REV: E)
RAM PACKAGE
Figure 1
3-24-10
4-14-17
