INSTALLATION GUIDE
Switch System
Boardroom
Size: 3600mm x 1200mm

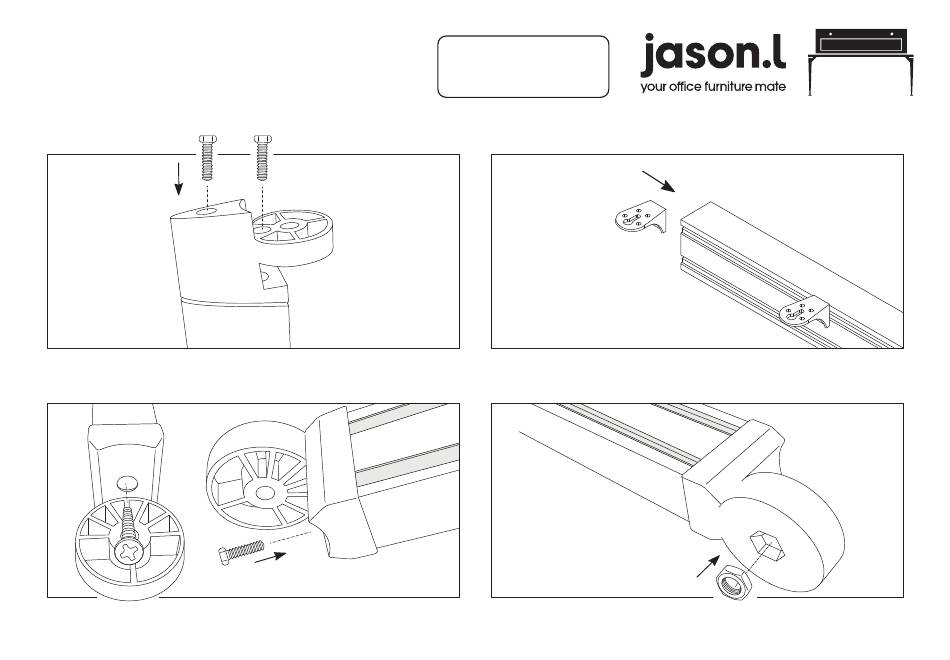

01
Join Leg Brackets to each Leg using screws to secure them, as follow.
03
Securely connect each Beam to each Beam Bracket. Screw to secure.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
02
Join 2 L-Bracket through each 800mm Beam
and 1 L-Bracket through each 1135mm and 970mm Beam.
04
Insert Hex Nut on each Beam Bracket.
Page 3 of 5
