ASSEMBLY INSTRUCTIONS

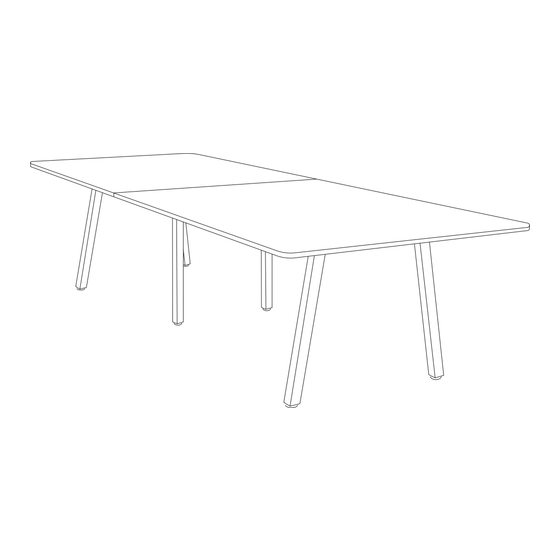

Quadro A
Boardroom table
Sizes:
3200x1100
Tools Required:
Power screwdriver; Allen key set (provided)
2 persons required for installation
Need help!
Call us on
1300 527 665
www.jasonl.com.au
1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quadro A and is the answer not in the manual?

Questions and answers

Related Manuals for Jason.L Quadro A

Summary of Contents for Jason.L Quadro A

  • Page 1 ASSEMBLY INSTRUCTIONS Quadro A Boardroom table Sizes: 3200x1100 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation www.jasonl.com.au Need help! 1 of 6 1300 527 665 Call us on...
