Summary of Contents for Jason.L ST SUPREME E23T

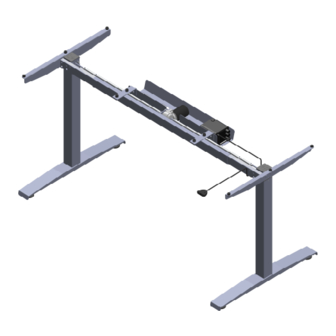

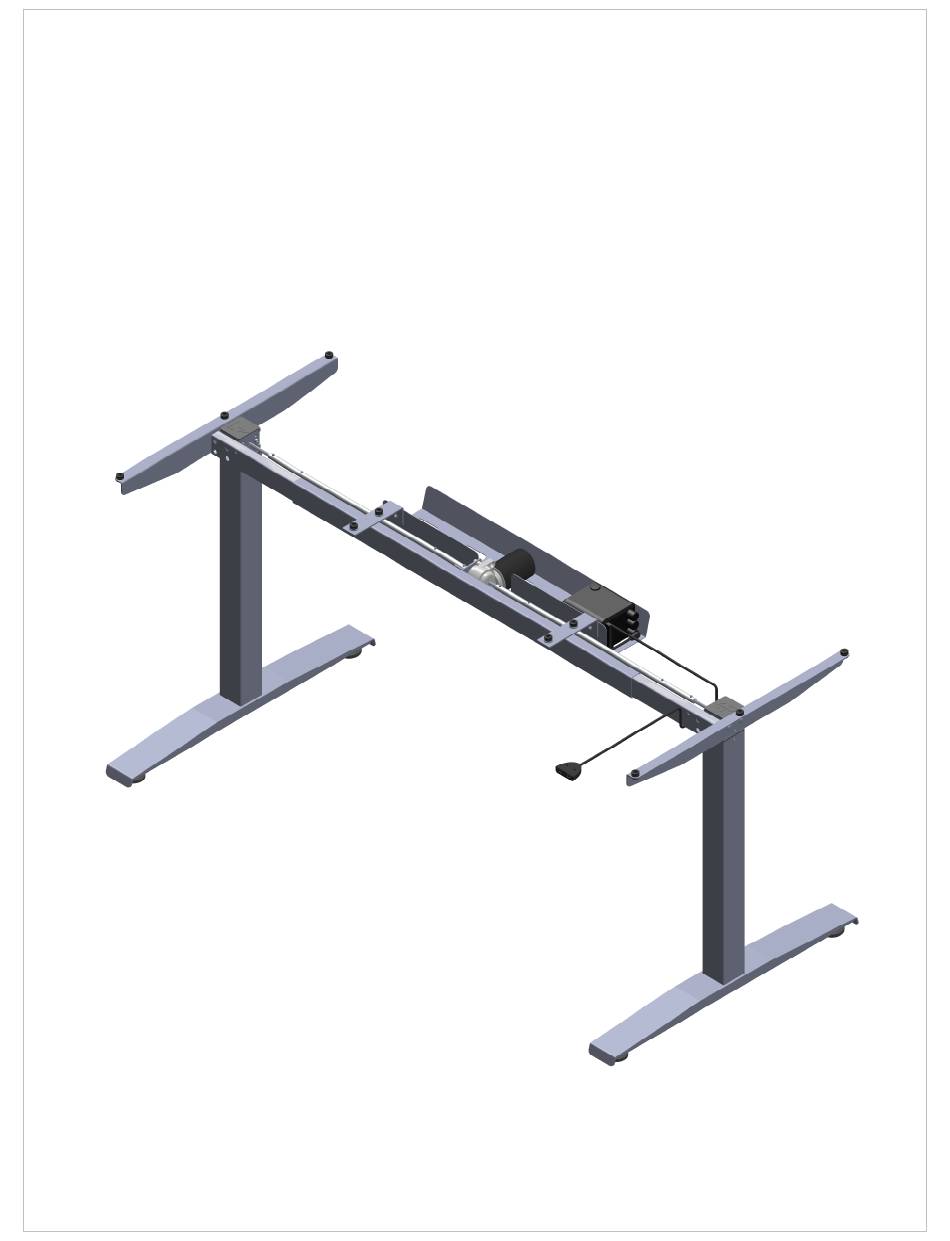

- Page 1 ASSEMBLY INSTRUCTION MODEL : ST SUPREME E23T Electric Height Adjustable Table Frame (4 to 6 Feet Length)
- Page 2 Component List - ST SUPREME E23T Left Column Right Column Foot FA-20-106-L-01 FA-20-106-ER-01 FA-10-315-02 Qty:1 Qty: 1 Qty: 2 Axle Drive L390mm Crossbar Assy. Left ET-00-309 CB-10-217B-01 Qty : 2 Qty: 1 Axle Drive L550mm ET-00-306 Qty : 2 Crossbar Assy. Right...
- Page 3 Assembly Instruction: Left Stand Assembly Step 1 : Install Leveling Base ITEM NO. DESCRIPTION QTY. Foot FA-10-315-02 Leveling Base STEP 2 : Install Foot ITEM NO. DESCRIPTION QTY. Left Column FA-20-106-L-01 Screw M6 XL16 STEP 3 : Install Crossbar Left Assy. ITEM NO.
- Page 4 Assembly Instruction: Right Stand Assembly Step 1 : Install Leveling Base ITEM NO. DESCRIPTION QTY. Foot FA-10-315-02 Leveling Base STEP 2 : Install Foot ITEM NO. DESCRIPTION QTY. Right Column FA-20-106-ER-01 Screw M6 XL16 STEP 3 : Install Crossbar Right Assy. ITEM NO.
- Page 5 Assembly Instruction: Integrate Left & Right Stand ITEM NO. DESCRIPTION QTY. Crossbar Motor Model CB-10-219 -00 Set Screw M6 (X4) Notes : 1.Please follow arrow left and right direction to adjust the frame length fixed table top size. 2.Tighten set screw M6(X4) after fixed frame length. (Recommanded length 115cm,145cm,175cm) Pg.3/11...
- Page 6 Assembly Instruction: Install Motor Assembly ITEM NO. DESCRIPTION QTY. Motor TGM1-2252-002 Screw M6 XL10 Pg.4/11...
- Page 7 Assembly Instruction: Axle Drive And Hex Shaft Assy. For Length 115cm to 145cm ITEM NO. DESCRIPTION QTY. Axle Drive L390mm ET-00-309 Hex Shaft L295mm ET-00-303 Hex Shaft L430mm ET-00-307 Set Screw M5(X8) PRESS DOWN PRESS DOWN Notes: 1.Before Insert Hex Shaft, make sure Left Stand &...
- Page 8 Assembly Instruction: Axle Drive And Hex Shaft Assy. For Length 145cm to 175cm ITEM NO. DESCRIPTION QTY. Axle Drive L550mm ET-00-306 Hex Shaft L295mm ET-00-303 Hex Shaft L430mm ET-00-307 Set Screw M5(X8) PRESS DOWN PRESS DOWN Notes: 1.Before Insert Hex Shaft, make sure Left Stand &...
- Page 9 Caution: Column Must Be At Lowest Position Before Install Hex Shaft Press down the column make sure it is at lowest postion. The marking O not appear means it is at lowest position refer to below diagram. Press Marking not seen (Means at lowest position) Marking partially seen...
- Page 10 Assembly Instruction: Install Side L Plate ITEM NO. DESCRIPTION QTY. Side L Plate FA-00-119-01 Screw M5 XL10 Pg.8/11...
- Page 11 Assembly Instruction: Install Cable Tray & Control Box & Handset ITEM NO. DESCRIPTION QTY. Install Cable Tray Cable Tray FA-00-220B-00 1 Screw M5 XL10 Notes : Step 1: Install Cable Tray Step 2: Lock with screw M5 ITEM NO. DESCRIPTION QTY.
- Page 12 Assembly Instruction: Plug Rubber Pad Type-T ITEM NO. DESCRIPTION QTY. Rubber Pad Type-T Plug Rubber Pad Type-T Before After V1.0 Pg.10/11...
- Page 13 Assembly Instruction: Reset The Desk Before Use 'UP BUTTON' 'DOWN BUTTON' Reset operation as below : 1.One time reset The first powered up, press and hold 'Down Button', the desk moving down to lowest position. After checking the signal motor constant, reset was completed and ready to use.
