ASSEMBLY INSTRUCTIONS
Echo modesty panel
with L-brackets

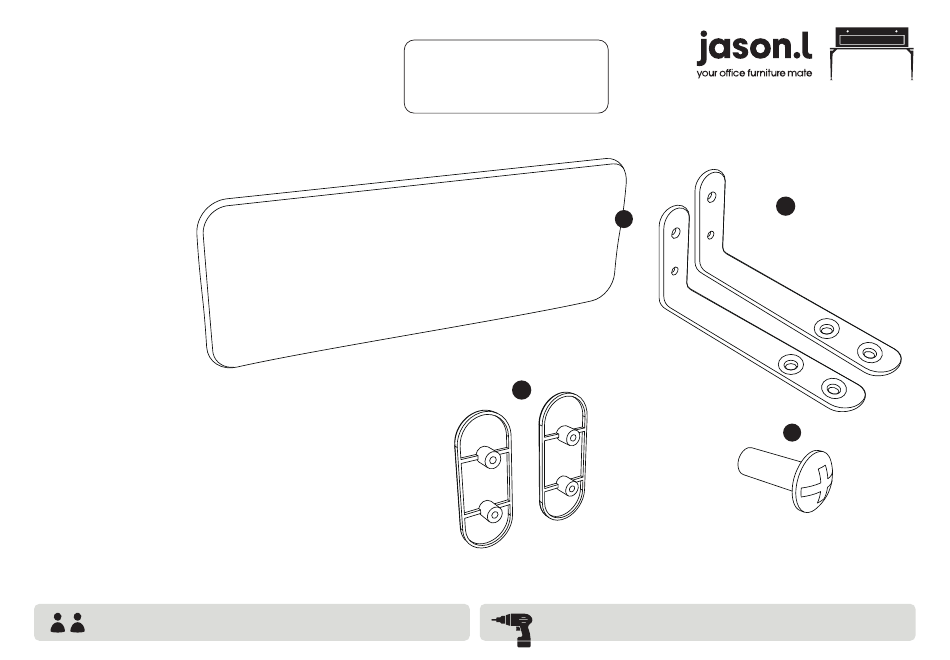

COMPONENTS
A
Echo Plate x 1
B
L Bracket x2
C
Clamps cover x2
D
Screws x4
E
Wood screws x 4
Experienced assembly is required. User will need to drill wood screws into underside of desk. No pre-drilled holes are provided for this system.
2 Persons required for installation *
www.jasonl.com.au
Need help!
Call us on
1300 527 665
C
Power Drill tool is required.
B
A
D
Page 2 of 4
Advertisement
Table of Contents
Related Manuals for Jason.L Echo modesty panel EMP3512LGB-L 170
Summary of Contents for Jason.L Echo modesty panel EMP3512LGB-L 170
- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Echo modesty panel Call us on with L-brackets 1300 527 665 COMPONENTS Echo Plate x 1 L Bracket x2 Clamps cover x2 Screws x4 Wood screws x 4 Experienced assembly is required. User will need to drill wood screws into underside of desk. No pre-drilled holes are provided for this system. 2 Persons required for installation * Power Drill tool is required.
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Echo modesty panel Call us on with L-brackets 1300 527 665 STEP 01 STEP 02 250 mm Assembe A plate with B bracket and tighten using 4 x screws provided Please drill two holes using 8mm drill bit having a 32.5 mm gap between screw holes.
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Echo modesty panel Call us on with L-brackets 1300 527 665 STEP 04 STEP 03 100 mm Please assemble Echo panel with desktop using L brackets. Please drill 4 x wood screws (E) into the underneath desk and tighten the L brackets on the desk.
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Echo modesty panel Call us on with L-brackets 1300 527 665 Page 1 of 4...
