Summary of Contents for Jason.L ST SUPREME E23T

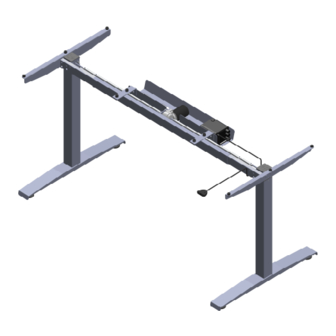

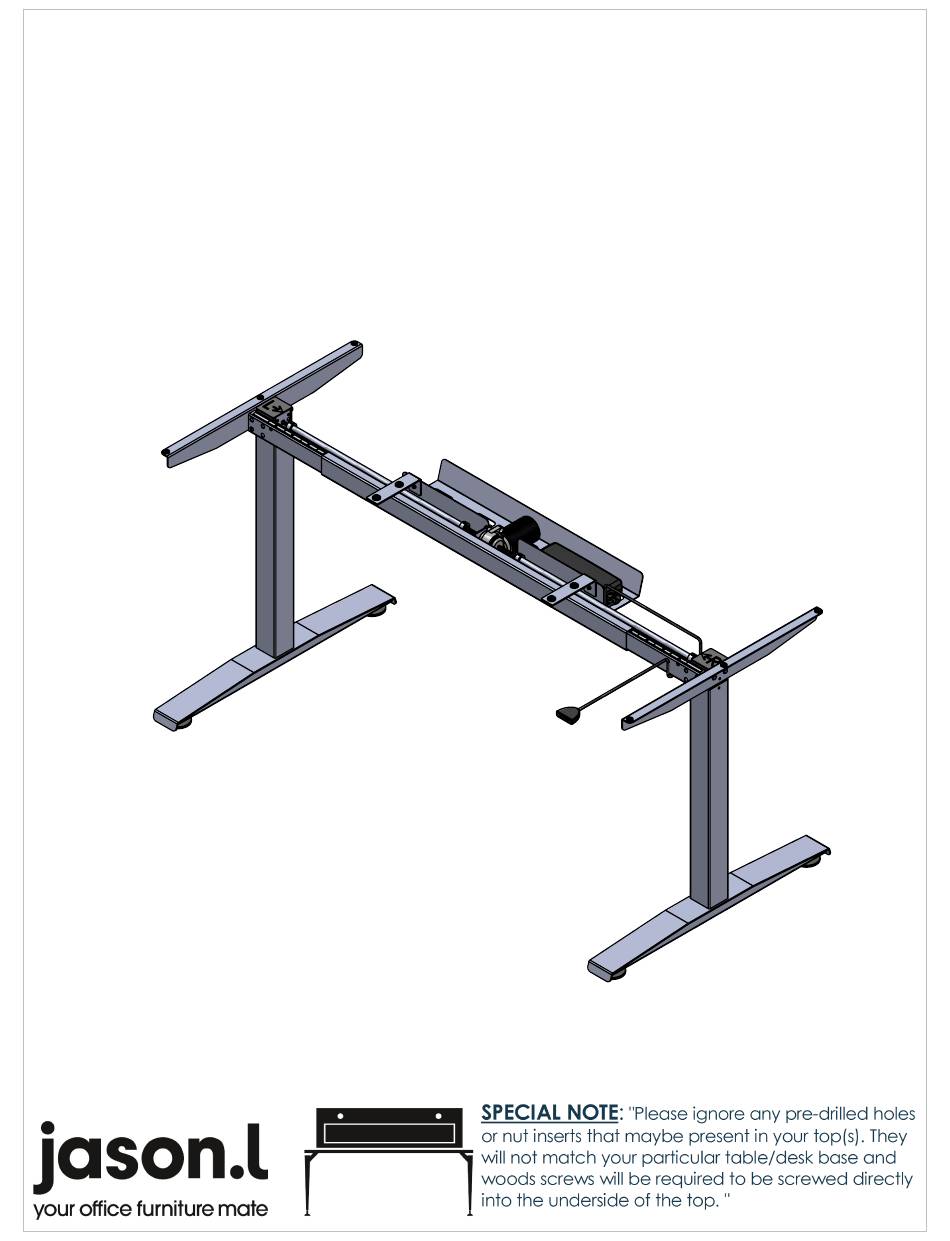

- Page 1 ASSEMBLY INSTRUCTION MODEL : ST SUPREME E23T Electric Straight Desk Frame (1200mm - 1800mm Length) V1.2...
- Page 2 Component List - ST SUPREME E23T_V1.2 Left Column Right Column Foot Qty:1 Qty: 1 Qty: 2 Axle Drive L400mm Qty : 2 Crossbar Assy. Left Qty: 1 Axle Drive L550mm Qty : 2 Crossbar Assy. Right Qty: 1 Hex Shaft L100mm Qty : 2 Side L Plate Hex Shaft L250mm...
- Page 3 Assembly Instruction: Left Stand Assembly Step 1 : Install Leveling Base ITEM NO. DESCRIPTION QTY. Foot Leveling Base STEP 2 : Install Foot ITEM NO. DESCRIPTION QTY. Left Column Screw M6 XL16 STEP 3 : Install Crossbar Left Assy. ITEM NO. DESCRIPTION QTY.
- Page 4 Assembly Instruction: Right Stand Assembly Step 1 : Install Leveling Base ITEM NO. DESCRIPTION QTY. Foot Leveling Base STEP 2 : Install Foot ITEM NO. DESCRIPTION QTY. Right Column Screw M6 XL16 STEP 3 : Install Crossbar Right Assy. ITEM NO. DESCRIPTION QTY.
- Page 5 Assembly Instruction: Integrate Left & Right Stand ITEM NO. DESCRIPTION QTY. Crossbar Motor Model Notes : 1.Please follow arrow left and right direction to adjust the frame length fixed table top size. 2.Tighten set screw M6(X4) after fixed frame length. (Recommended length 115cm,145cm,175cm) Set Screw M6 (X4)
- Page 6 Assembly Instruction: Install Motor Assembly ITEM NO. DESCRIPTION QTY. Screw M6 XL10 Motor TGM1-2252-003 V1.2 Pg.4/12...
- Page 7 Assembly Instruction: Axle Drive And Hex Shaft Assy. For Length 115cm ITEM NO. DESCRIPTION QTY. Axle Drive L400mm Hex Shaft L100mm Hex Shaft L250mm Remarks; Lock Bush Item No. 08 (Axle Drive L400mm) Lock Bush (X4) dismantle from (50~60) (50~60) Item No.
- Page 8 Assembly Instruction: Axle Drive And Hex Shaft Assy. For Length 145cm ITEM NO. DESCRIPTION QTY. Axle Drive L550mm Hex Shaft L100mm Hex Shaft L250mm Set Screw M6(x4) (50~60) (50~60) PRESS DOWN Figure No.2 PRESS DOWN Notes: 1.Before Insert Hex Shaft, make sure Left Stand &...
- Page 9 Assembly Instruction: Axle Drive And Hex Shaft Assy. For Length 175cm ITEM NO. DESCRIPTION QTY. Axle Drive L550mm Hex Shaft L250mm Set Screw M6(x4) PRESS DOWN (50~60) (50~60) Figure No.3 PRESS DOWN Notes: 1.Before Insert Hex Shaft, make sure Left Stand & Right Stand are at lowest position. Please see attachment caution ! (Refer Pg8/12).
- Page 10 Caution: Column Must Be At Lowest Position Before Install Hex Shaft Press down the column make sure it is at lowest postion. The marking O not appear means it is at lowest position refer to below diagram. Press Marking not seen (Means at lowest position) Marking partially seen...
- Page 11 Assembly Instruction: Install Side L Plate ITEM NO. DESCRIPTION QTY. Side L Plate Screw M5 XL10 V1.2 Pg.9/12...
- Page 12 Assembly Instruction: Install Cable Tray & Control Box & Handset ITEM NO. DESCRIPTION QTY. Install Cable Tray Cable Tray Screw M5 XL10 Notes : Step 1: Install Cable Tray 12 Step 2: Lock with screw M5 13 (x2) ITEM NO. DESCRIPTION QTY.
- Page 13 Assembly Instruction: Plug Rubber Type-A ITEM NO. DESCRIPTION QTY. Rubber Type-A Figure No.4 V1.2 Pg.11/12...
- Page 14 Assembly Instruction: Reset The Desk Before Use 'UP BUTTON' 'DOWN BUTTON' Caution! Make sure all cable are connected to control box before power up. Reset operation as below : 1. Initial reset For the first powered up, press and hold both 'UP' and 'DOWN' buttons simultaneously for more than 3 seconds until the desk moves down to lowest position.
