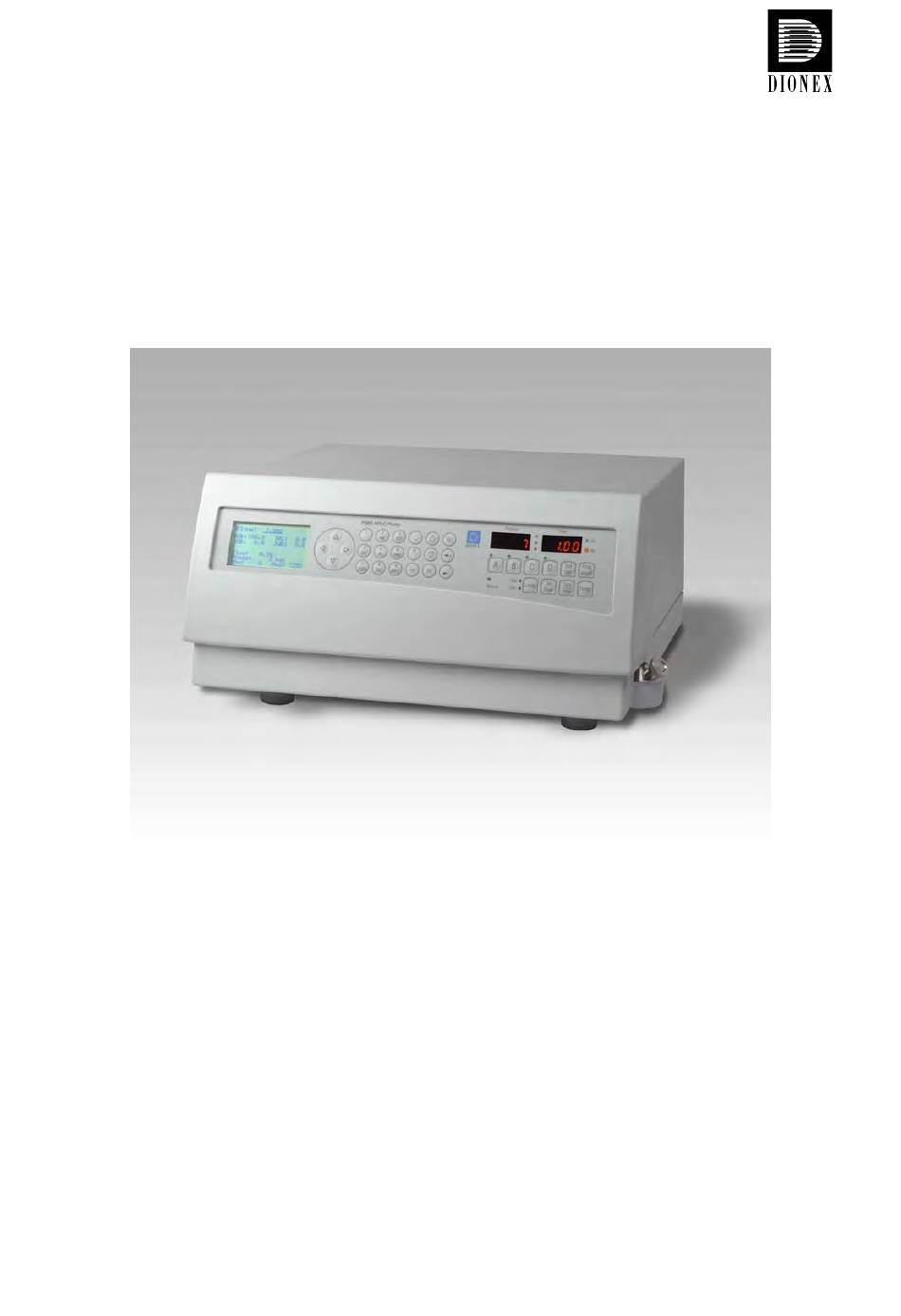

- Page 1 P680 HPLC Pump System Quick Installation Guide High Pressure Gradient Version June 2004 rev. 03 Page 1 © 2004 Dionex...
-
Page 2: Remove The Caution Label
This Quick Installation Guide explains the basic installation steps for a P680A HPG high- pressure gradient pump system. For additional information, please consult the operating instructions for the P680 HPLC Pumps. 1. Preparation Bring the pump to a moderate temperature for four hours to allow any condensation that might have occurred during transit to evaporate. -
Page 3: Connect The Eluent Tube To The Solvent Bottle
Therefore, exchange the solvents at regular intervals. Rinse the bottles thoroughly before using them again. Replace the frits as necessary. June 2004 rev. 03 Page 3 © 2004 Dionex... -
Page 4: Place The Sor-100 Solvent Rack On Top Of The Pump
The SOR-100A-4 is shipped with two 1-liter eluent bottles, two 2-liter eluent bottles, appropriate tubing, and bottle caps. The SOR-100 fits on top of the P680. Open the Pull the tray with the degassing chambers SOR-100 by tilting the front panel upward. - Page 5 Connect the respective inlet tubing of the P680 to the adjacent outlet of the degasser module. Push the tray back into the SOR-100 and tilt the front panel downward.
-
Page 6: Connect Drainage Tubing
7. Install the Active Rear-Seal Wash System The pictures below show the rear-seal wash system of a low-pressure gradient version of the P680. It is identical in the high-pressure gradient version of the pump. The pump is shipped with the active rear-... - Page 7 Please fill the reservoir only half full! This is to leave room for small amounts of eluent, which may leak through the piston seals when the seals start aging! June 2004 rev. 03 Page 7 © 2004 Dionex...
- Page 8 Please note: Fill the wash solution reservoir with approximately 50 mL of wash solution before turning on the pump for the first time. Please avoid to use the pump without rear-seal washing. June 2004 rev. 03 Page 8 © 2004 Dionex...
-
Page 9: Verify Correct Voltage Setting
Replace the fuses as appropriate. Important: Use only appropiate fuses (for 230 V setting: Fuse, 1 A, TT, 5 x 20 mm; for 115 V setting: Fuse, 2 A, TT, 5 x 20 mm). See the P680 Operating Instructions for details. Fuse cartridge Cover June 2004 rev. - Page 10 Reinstall the voltage selector board and the fuse cartridge. Verify once again that the voltage setting is appropriate (see the first picture in this section). Please note: For minimum interference, all modules should be connected to the same mains output (same phase). June 2004 rev. 03 Page 10 © 2004 Dionex...
-
Page 11: Connect Power Cable And Usb / Lan Connection
The length of the USB cable between the pump and a PC or a USB hub must not exceed 5 m. A special USB extension cable (Dionex part no. 8911.0004) is available if longer connections are required. Up to five extension cables may be connected in series. -
Page 12: Chromeleon Server Configuration
For TCP/IP setup, please refer to the P680 Operating Instructions. 10. Chromeleon Server Configuration You can now configure the P680 pump for software communication. If you need assistance with the software installation and/or configuration of the Chromeleon Server, please refer to the P680 Operating Instructions.
