Dionex P680 Quick Installation Manual

Hplc pump system. isocratic version
Hide thumbs Also See for P680:
Table of Contents

Advertisement

Quick Links

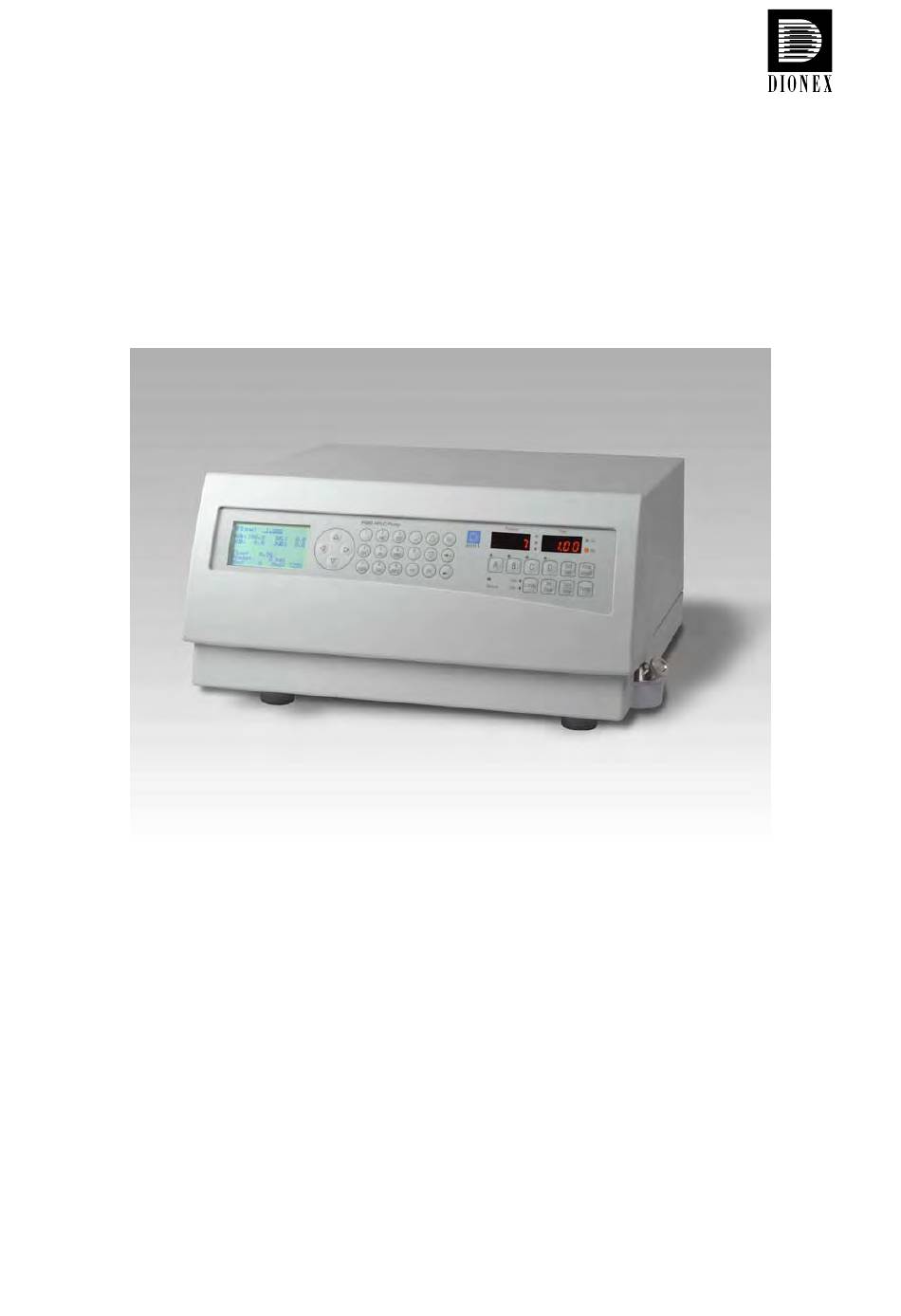

P680 HPLC Pump System
Quick Installation Guide
Isocratic Version
June 2004
rev. 03
Page 1
©
2004 Dionex

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P680 and is the answer not in the manual?

Questions and answers

Related Manuals for Dionex P680

Summary of Contents for Dionex P680

  • Page 1 P680 HPLC Pump System Quick Installation Guide Isocratic Version June 2004 rev. 03 Page 1 © 2004 Dionex...

  • Page 2: Remove The Caution Label

    This Quick Installation Guide explains the basic installation steps for a P680 ISO isocratic pump system. For additional information, please consult the Operating Instructions for the P680 HPLC Pumps. 1. Preparation Bring the pump to a moderate temperature for four hours to allow any condensation that might have occurred during transit to evaporate.
  • Page 3 Therefore, exchange the solvents at regular intervals. Rinse the bottles thoroughly before using them again. Replace the frits as necessary. June 2004 rev. 03 Page 3 © 2004 Dionex...

  • Page 4: Place The Sor-100 Solvent Rack On Top Of The Pump

    Please note: The pictures below show a 6-channel degasser. For a P680A ISO, an SOR-100-2 (part no. 5030.9210) with an integrated 2-channel degasser is sufficient. The SOR-100 fits on top of the P680. For Pull the tray with the degassing chambers safety reasons, always place the eluent bottles toward you.
  • Page 5 Connect the respective inlet tubing of the P680 to the adjacent outlet of the degasser module. Push the tray back into the SOR-100 and tilt the front panel downward.

  • Page 6: Connect Drainage Tubing

    The active rear-seal wash system consists of a peristaltic pump (tubing pump) and a wash solution reservoir with integrated sensors. Rear-seal washing is activated periodically once per hour and runs for five minutes. June 2004 rev. 03 Page 6 © 2004 Dionex...
  • Page 7 Please fill the reservoir only half full! This is to leave room for small amounts of eluent, which may leak through the piston seals when the seals start aging! June 2004 rev. 03 Page 7 © 2004 Dionex...
  • Page 8 Rear-seal wash solution reservoir from the rear side. Engaging mechanism of the rear-seal wash solution reservoir. Re-insert the rear-seal wash solution reservoir. June 2004 rev. 03 Page 8 © 2004 Dionex...

  • Page 9: Verify Correct Voltage Setting

    For further information about the active rear-seal wash system, please refer to the appropriate section in the P680 Operating Instructions. 8. Verify correct voltage setting Dionex instruments are factory-set for...
  • Page 10 Replace the fuses as appropriate. Important: Use only appropiate fuses (for 230 V setting: Fuse, 1 A, TT, 5 x 20 mm; for 115 V setting: Fuse, 2 A, TT, 5 x 20 mm). See the P680 Operating Instructions for details. Fuse cartridge Cover...

  • Page 11: Connect Power Cable And Usb / Lan Connection

    PC or a USB hub must not exceed 5 m. A special USB extension cable (Dionex part no. 8911.0004) is available if a longer connection is required. Up to five extension cables may be connected in series.

  • Page 12: Chromeleon Server Configuration

    For TCP/IP setup, please refer to the P680 Operating Instructions. 10. Chromeleon Server Configuration You can now configure the P680 pump for software communication. If you need assistance with the software installation and/or the configuration of the Chromeleon Server, please refer to the P680 Operating Instructions.

This manual is also suitable for:

P680 iso
