KI Extol Auditorium Seating Disassembly Instructions

Disassembly Instructions

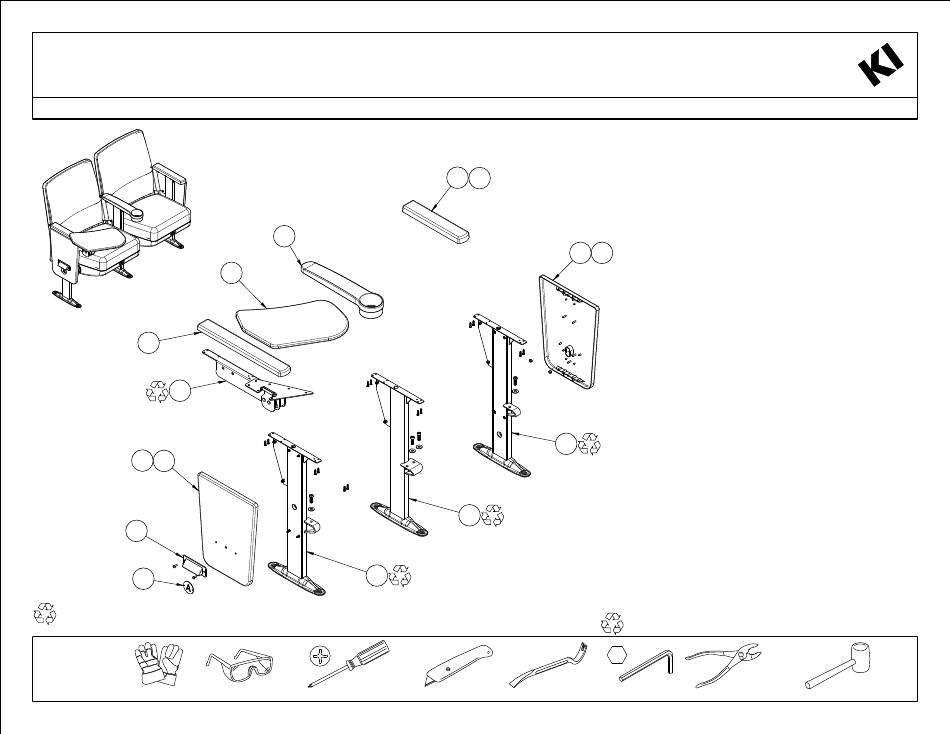

Extol Auditorium Seating
Material Type: A .Steel
B
A
C B
B
G
All fasteners not explicity tagged or
shown are Material Type A: Steel
Required
Tools
Gloves Safety Glasses
KI · 1330 Bellevue Street · P.O. Box 8100 · Green Bay, WI 54308-8100 · 1-800-424-2432 · www.ki.com
B. Plastic C. Wood
B
C
A
Philips Screwdriver
D. Foam E. Fabric
B C
B C
A
A
Pry Bar
Utility Knife
©2015 Krueger International, Inc. All Rights Reserved · P0033-0106
F. Cast Iron
Procedure:
1. Remove seat pivot caps to remove the screw, washer and
nut holding each side of the seat to the seat support column
and remove the seat assembly.
2. Remove the screws and nuts holding the backrest onto the
back supports and remove the backrest assembly.
3. Remove the screws holding the arm cap, cup holder and or
tablet onto the top of the seat support column and remove
the arm cap, cup holder and or tablets.
4. Remove the nuts holding the column onto the floor and
remove the column.
(Continued next page)
General Notes:
1. Disassembly time: 15-30 minutes
2. This procedure assumes basic familiarity with hand tools and
furniture terminology: no specialized training is required
3. All materials removed and disassembled shall be sorted and
segregated with like materials and disposed of or recycled
according to recycling availability or waste acceptance
4. For items to be recycled, refer to KI's End of Life Recycling
Matrix and KI's End of Life Recovery Options Matrix, available
at www.ki.com
Allen Wrench
Pliers
G. Brass
Rubber Mallet
Rev. 0 Page 1 of 2
