PICTURE PATTERN
When "Left" or "Right" is selected in MUTI PICTURE, this selects the size of the picture.
AUTO: Shows 2 screens based on the INPUT RESOLUTION and EXPANSION settings for the priority (adjustable)
screen selected in MULTI PICTURE.
CENTER: Splits 2 screens divided evenly from the center.
When "Main" or "Sub" is selected in MUTI PICTURE, this selects the position of the sub-screen.
LEFT: The sub-screen's start position is bottom-left side of the screen.
RIGHT: The sub-screen's start position is bottom-right side of the screen.
PICTURE SIZE
Selects SMALL, MIDDLE or LARGE for the size of the sub-picture used in Picture-In-Picture mode.
PICTURE POSITION
Determines where the sub-screen appears on the screen.

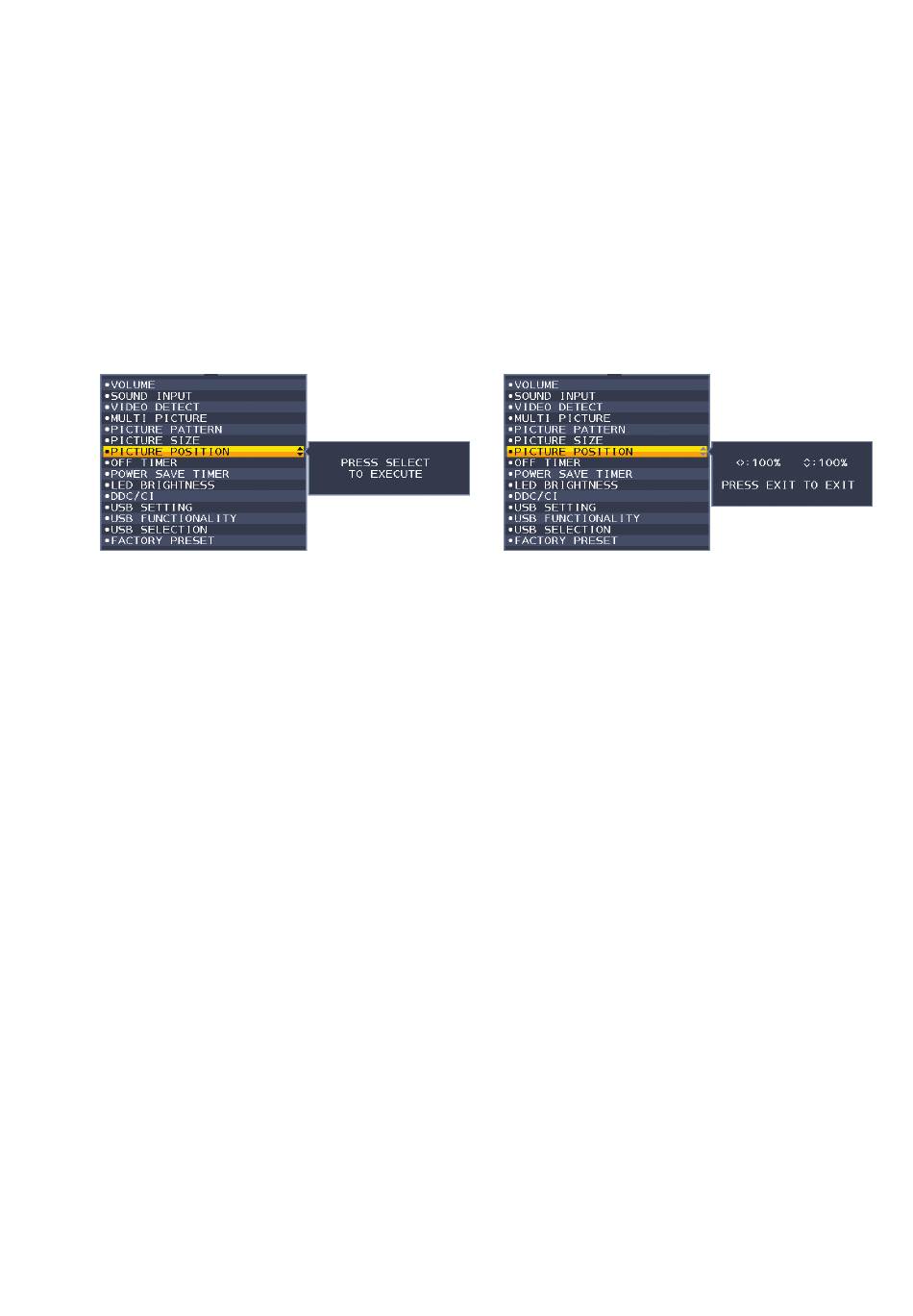

Touch the SELECT key to enter the PICTURE POSITION mode (Figure 1).
Using LEFT, RIGHT, UP and DOWN keys controls the horizontal and vertical position of the sub-screen within the
boundaries of the side where the sub-screen is located (Figure 2).
Figure 1
OFF TIMER
The monitor will automatically power off after a period of time has passed, which you can set.
Before powering off, a message will appear on the screen asking if you want to delay the turn off time by 60 minutes.
Touch any OSD key to delay the power-down time.
POWER SAVE TIMER
POWER SAVE TIMER allows the monitor to turn off automatically after 2 consecutive hours in power save mode.
LED BRIGHTNESS
Adjusts the blue LED brightness.
DDC/CI
This function turns the DDC/CI function ON or OFF.
USB SETTING
Selects a transfer speed of USB-C.
USB2.0: The maximum supported resolution is 3840 x 2160 (60 Hz). The maximum transfer speed is equivalent to
USB 2.0.
USB3.1: The maximum supported resolution is 3840 x 2160 (30 Hz). The maximum transfer speed is equivalent to
USB 3.1.
NOTE: To avoid data loss, before changing the setting, ensure that no USB storage devices are in use by the
operating system.
USB FUNCTIONALITY
Selects how power through the USB Type-A port and USB Type-C port, input signal from USB-C, and external
communication of USB are enabled in relation to the Monitor's power status.
AUTO: Depending on the monitor's power condition.
ON: Always working even when the monitor is in power save mode or power OFF.
OFF: All USB functions (include USB Type-C video signal) are disabled.
NOTE: Actual power consumption depends on the connected USB device even when the monitor's power is off.
To avoid data loss, before changing the setting, ensure that no USB storage devices are in use by the
operating system.
