Mount Flexible Arm
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions in how to
2. Using 4 screws that meet the specifications listed below, attach the arm to the monitor (Figure F.1).
Spring washer
Flat washer
CAUTION: • Only use 4 M4 sized screws when mounting to avoid damage to the monitor and stand.
• To fulfill the safety requirements, the monitor must be mounted to an arm, which guaranties the necessary
stability under consideration for the weight of the monitor. The LCD monitor should only be used with an
approved arm (e.g. TUEV GS mark).
• Tighten all screws (recommended Fasten Force: 98 - 137N•cm).
A loose screw may cause the monitor to fall off the arm.
• Attaching the flexible arm should be done by two or more people if the monitor cannot be placed face down on
a flat surface for installation.
Remove Monitor Stand for
12 mm
100 mm
100 mm

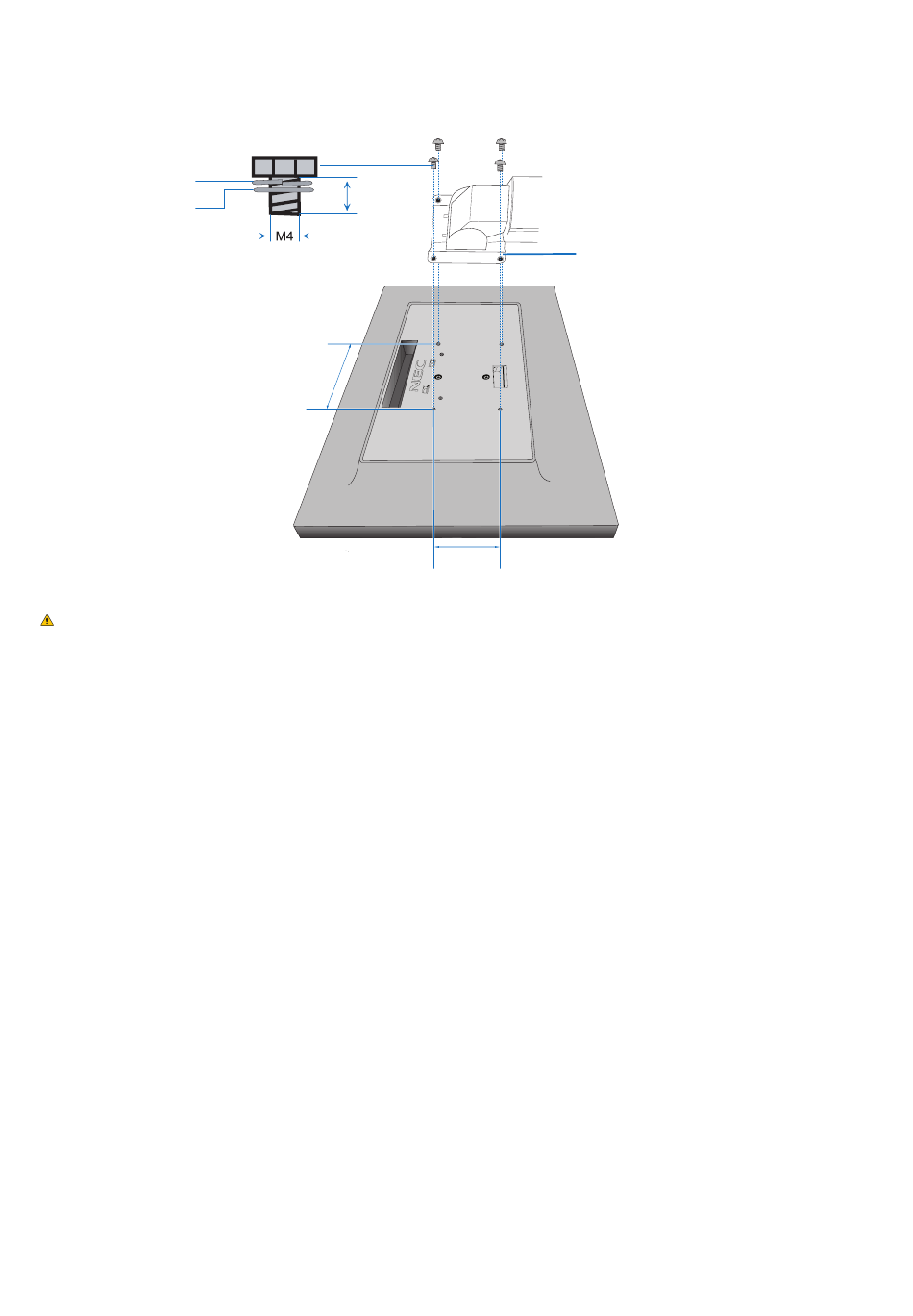

Figure F.1
English-10
Mounting.
Thickness of Bracket (Arm)
2.0~3.2 mm
