ControlSync
ControlSync simultaneously controls all sub-monitors connected to a master monitor. It can also individually control a single sub-
monitor using the INDIVIDUAL ADJUST function (see
Controlling all connected sub-monitors (Synchronized control):
•

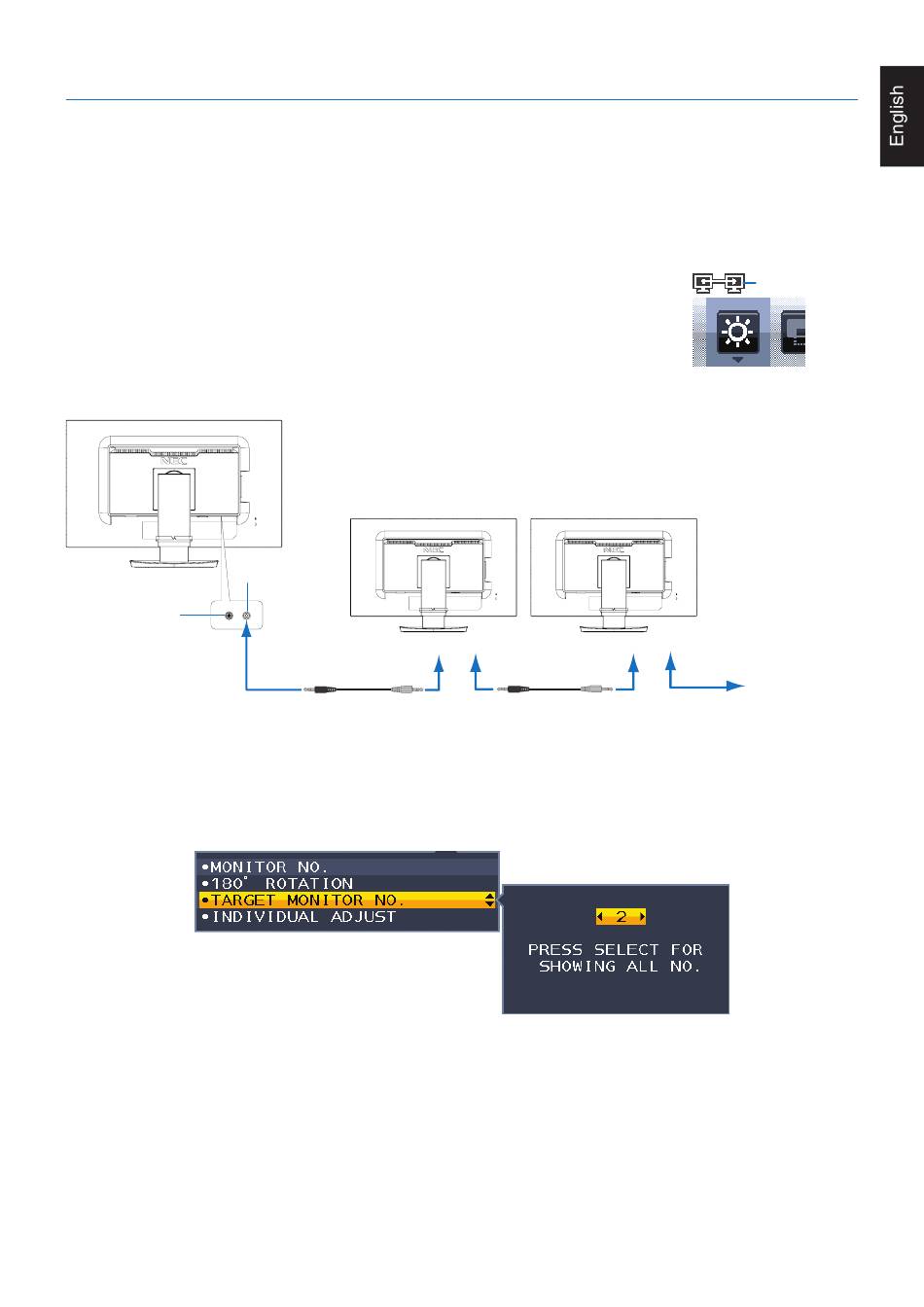

Connect a ControlSync cable (ø 2.5) to the master monitor's ControlSync OUT port and into a sub-monitor's ControlSync IN
port. Up to 8 monitors can be daisy-chained together by connecting the monitors to each other via the ControlSync OUT to
IN ports on the monitors.
•
Follow the steps for DATA COPY (see
the connected sub-monitor(s) automatically.
NOTE:
The ControlSync icon will appear on the upper left of the OSD menu in the sub-monitors.
Do not connect the ControlSync ports IN-to-IN or OUT-to-OUT. The monitors'
ControlSync ports must be connected OUT-to-IN.
Do not make a "loop" connection by connecting the last monitor in the chain back to the
master monitor.
Turn off the power and disconnect the power cables for all monitors. Connect the
ControlSync cables, then connect the power cables, and then turn on the power for each monitor.
Master Monitor
OUT (Black)
IN (Gray)
Controlling a target monitor (Individual Adjust)
1. Touch the MENU/EXIT key to open the OSD menu on the master monitor.
2. Touch the DOWN/UP key to select TARGET MONITOR NO. When the cursor is on "TARGET MONITOR NO.", a sub-monitor
number menu opens. Use the LEFT/RIGHT keys to select the sub-monitor number.
If you touch the INPUT/SELECT key, each sub-monitor displays its monitor number.
3. Touch the DOWN/UP key to select INDIVIDUAL ADJUST and then set it to ON.
Control the sub-monitor's OSD using the master monitor's control keys.
NOTE:
To disable INDIVIDUAL ADJUST, touch the SELECT and EXIT keys simultaneously.
page
21).
page
20). When a setting for the master monitor is adjusted, it will be copied and sent to
Sub-Monitor 1
IN
OUT
(Black)
(Gray)
ControlSync cable
English-11
Sub-Monitor 2
IN
OUT
(Black)
(Gray)
ControlSync cable
ControlSync icon
Up to 8 sub-monitors
Next monitor
