Power supply

The IXrouter3 must be powered by a IEC/UL/EN/60950-1 certified Limited Power Supply
(LPS) or for the United States a Class 2 power supply. The LPS power supply is not included
in this package.
Power supply
Internal voltage protection
Input protection
Isolation

Wiring

Proper grounding and wiring of all electrical equipment is important to help ensure the
optimum operation of the IXrouter3 and to provide additional electrical noise protection
for your application.

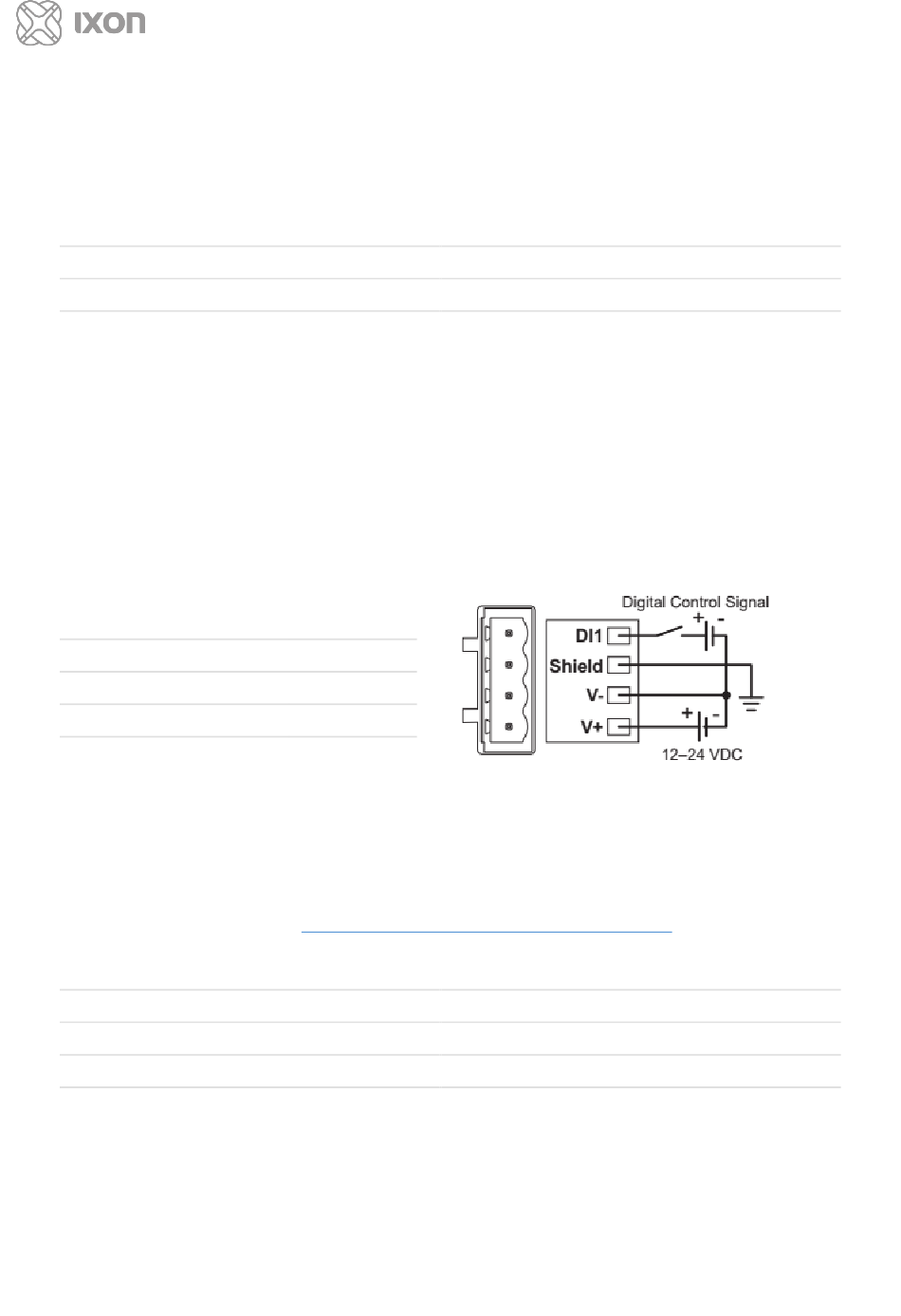

The IXrouter3 comes with a female 4-pin plug-in connector with screw connection (type:
Weidmuller BL 5.08/04/180 SN BK BX). The optimal wire diameter is 1.5mm² (16AWG -
12AWG).
Wire size range
Wire strip length
Terminal screw torque
Max wire length
Min ground conductor

Digital input

By default the Digital Input is not configured and doesn't need to be wired. The digital
input provides a way to locally manage the IXrouter3's VPN connection (ON/OFF). The
wiring is depicted in the image above. View our online article for information on how to
configure the Digital Input: support.ixon.cloud/hc/articles/360002554011.
Type
Voltage range
Voltage range (OFF state)
Voltage range (ON state)
Current voltage (ON state)

Shield

Connect the Shield pin of the IXrouter with the protective earth conductor (PE), min. core
diameter Cu 1.5 mm².
12-24 VDC +/- 20% LPS 2A
29V max
Protected against polarity inversion
1.5 kV
18 – 12 AWG
7 mm
0.4 N m
3 m
16 AWG
Optocoupler
0-29 VDC
0-3 VDC
7-29 VDC
2-5 mA (typically)
