Summary of Contents for Ixon IXrouter2
-
Page 1: Installation Guide
IXrouter2 Installation guide January 2017... -
Page 2: Table Of Contents
Contents Chapter 1: Overview ........................2 Introduction ........................2 Package contents ......................2 Hardware overview ....................... 3 Chapter 2: Specifications ......................4 Chapter 3: Installation ........................6 Guidelines for installing the IXrouter ................6 Installation and removal procedures ................6 Wiring ........................... -
Page 3: Chapter 1: Overview

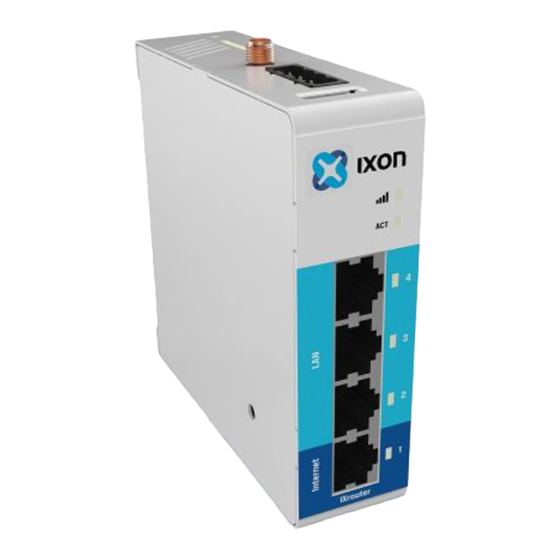

Chapter 1: Overview 1.1 Introduction Thank you for purchasing the IXrouter2. The IXrouter is the standard and best supported hardware for the IXON IXplatform. The IXrouter makes it very convenient to remotely connect to your equipment. The built-in firewall keeps your equipment safe from outside threats. -
Page 4: Hardware Overview
1.3 Hardware overview... -
Page 5: Chapter 2: Specifications
Chapter 2: Specifications IXrouter2 general specifications Power supply voltage 12-24 VDC +/- 20% Max input power 15 VA max. Operating temperature 0°C to +55°C Relative humidity 10 to 95% non-condensing Operating altitude Up to maximum 2000m Storage temperature -20°C to +70°C... - Page 6 3G model additional specifications Protocols and frequencies UMTS/HSPA+ - 800, 850, 900, 1900,2100 MHz GSM/GPRS/EDGE - 850, 900, 1800, 1900 MHz Class 5 bands GPRS/EDGE Class 12 Speed HSPA+ - Max.14.4Mbps (DL)/Max.5.76Mbps (UL) UMTS - Max.384Kbps (DL)/Max.384Kbps (UL) EDGE - Max.236.8Kbps (DL)/Max.236.8Kbps (UL) GPRS - Max.85.6Kbps (DL)/Max.85.6Kbps (UL) CSD - 14.4Kbps SIM size...
-
Page 7: Chapter 3: Installation
25 mm above and below the device. Also, allow at least 25 mm of depth between the front of the device and the inside of the enclosure. 3.2 Installation and removal procedures Dimensions (in mm) Note that the IXrouter2 Ethernet 5-ports (IX2103) had its height increased by 16mm. - Page 8 Install and remove from DIN rail The IXrouter can be easily installed on a standard DIN rail. Hang the device on the rail and push the unit down until you feel a click. To remove the unit, pull/rotate the device up and off the rail. Install the SIM card The SIM card slot suits a standard SIM size (2FF).
-
Page 9: Wiring
3.3 Wiring Proper grounding and wiring of all electrical equipment is important to help ensure the optimum operation of the IXrouter and to provide additional electrical noise protection for your application. Power Supply The IXrouter is supplied with 12 or 24 VDC from an external power source. Be sure you use a safety Low Power Supply (LPS) in accordance with clause 2.5 of UL/IEC 60950-1 Ed2. -
Page 10: Label
Shield Connect the Shield pin of the IXrouter with the protective earth conductor (PE), min. core diameter Cu 1.5 mm². Antenna The antenna connector is a standard SMA screw connector. Contact your sales agent for optional external antennas. The product complies with the R&TTE directive, the FCC, the IC and Japan regulations related to the GSM modems. -
Page 11: Chapter 4: Operation
Chapter 4: Operation 4.1 Configuration The configuration can be easily done by inserting a USB memory stick, which contains your configuration file, into the IXrouter's USB port. Generate the configuration from the Tools menu in your IXplatform account. 4.2 LED indicators Signal led Color Mode... -
Page 12: Factory Reset
Status led (ACT) Long pulses are always prefaced with one short pulse so you know they are long. Color Mode Description Constant Booting or not registered Blinking 1 short pulse Waiting for internet access · Blinking 3 short pulses LAN/WAN conflict (see note 1) ·... -
Page 13: Chapter 5: Compliance
Chapter 5: Compliance The IXrouter complies with the CE, R&TTE directives and the FCC regulations related to the wireless modems. The IXrouter belongs to class A Information Technology Equipment (ITE). In a domestic environment this product may cause radio interference in which case the user may be required to take appropriate measures. -
Page 14: Chapter 6: Technical Support
We are happy to help with any issues that may occur and make your experience as pleasant as possible. Please contact us by filling in the form or start a live chat at www.ixon.co/support. You can also send an e-mail directly at support@ixon.co. We will process your request as soon as possible. - Page 15 IXON B.V. and the authors of this guide are not liable for any errors it may contain, nor can they be held accountable for any eventual consequences. All trademarks, service marks, product names and logos are the property of their respective owners.
