Cole Parmer SPEX SAMPLEPREP 2010 GENO/GRINDER Quick Start Manual

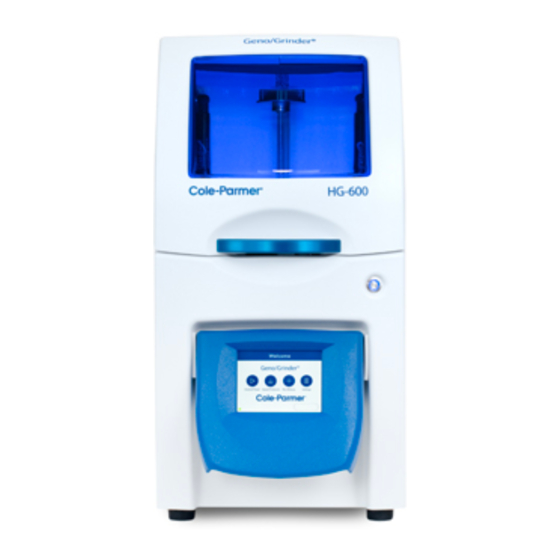

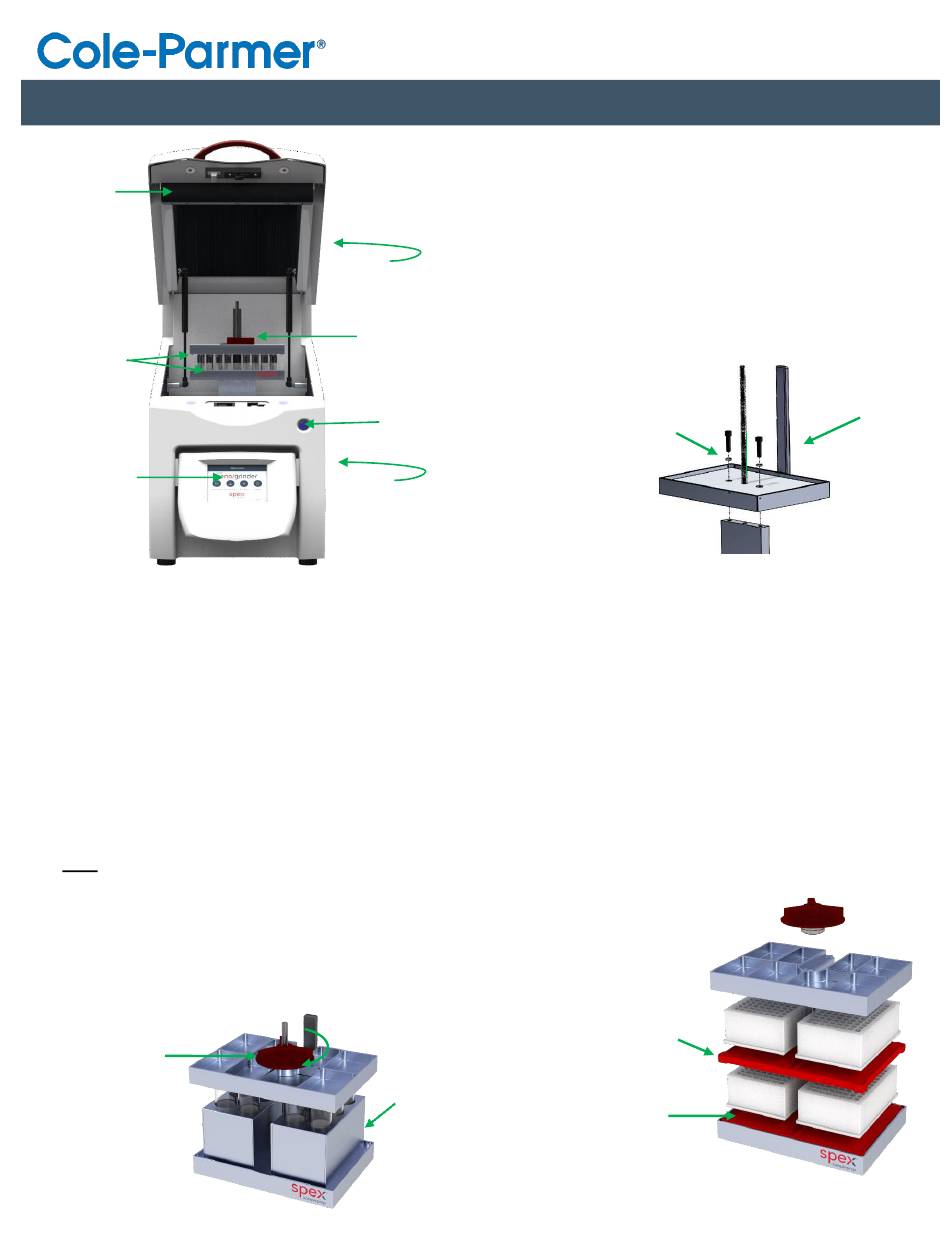

SPEX SAMPLEPREP 2010 GENO/GRINDER® QUICK START GUIDE
Lid
2012
Clamp
Touchscreen
Display
Step 1. Connect the powercord to the AC Inlet located in the back of the unit. Do not plug mill into
GFCI outlet. Power On the 2010 GG.
software loads followed by the Home Screen.
Step 2. Load samples into the clamp (titer plates or vials). When using 4 or 6 titer plates, place a nesting
tray between them. If using vials (2ml or 5ml), vial holders can be stacked to maximize throughput.
Step 3. Position the clamp lid above the threaded rod with the guide on the upright at the rear of the clamp,
press and hold button on the locking knob while sliding down the threaded rod.
Step 4. Turn knob to tighten (finger tight) and check that the button has popped out.
Note: The threaded rod and knob assembly of the 2012 clamp are considered wear parts and may need to be
replaced after repeated usage.
A) Slide the clamp lid on top
of the vials. Screw down
the locking knob on the
threaded rod.
coleparmer.com
Manual Lid
Release Latch
Knob
Assembly
On/Off
button
AC Inlet
Do not plug into GFCI outlet
(Ground Fault Circuit Interrupter)
"
B) Turn knob clockwise to
tighten (finger tight).
C) Make sure that vial
holders are secure
and cannot be
moved from side
to side.
How To Operate 2010 Geno/Grinder®
Set up the Geno/Grinder® in a well ventilated,
unconfined space. The unit should be operated on a
flat, hard, stable benchtop due to the vigorous motion
and vibration generated during operation.
To install the clamp, use the 3/16 in Allen wrench
(supplied with power cord and manual). Raise lid and
attach clamp using the lock washers and bolts to the
top of the shaft.
Secure clamp base to shaft
using bolts and lock washers
supplied with clamp
"
Please Wait appears on the screen during start-up as the
Double-sided
nesting tray
Single-sided
nesting tray
(bottom only)
1300-87055QSG-1G, REV 4
Upright must be
at rear of unit
Stacking Titer Plates
