Mounting Options

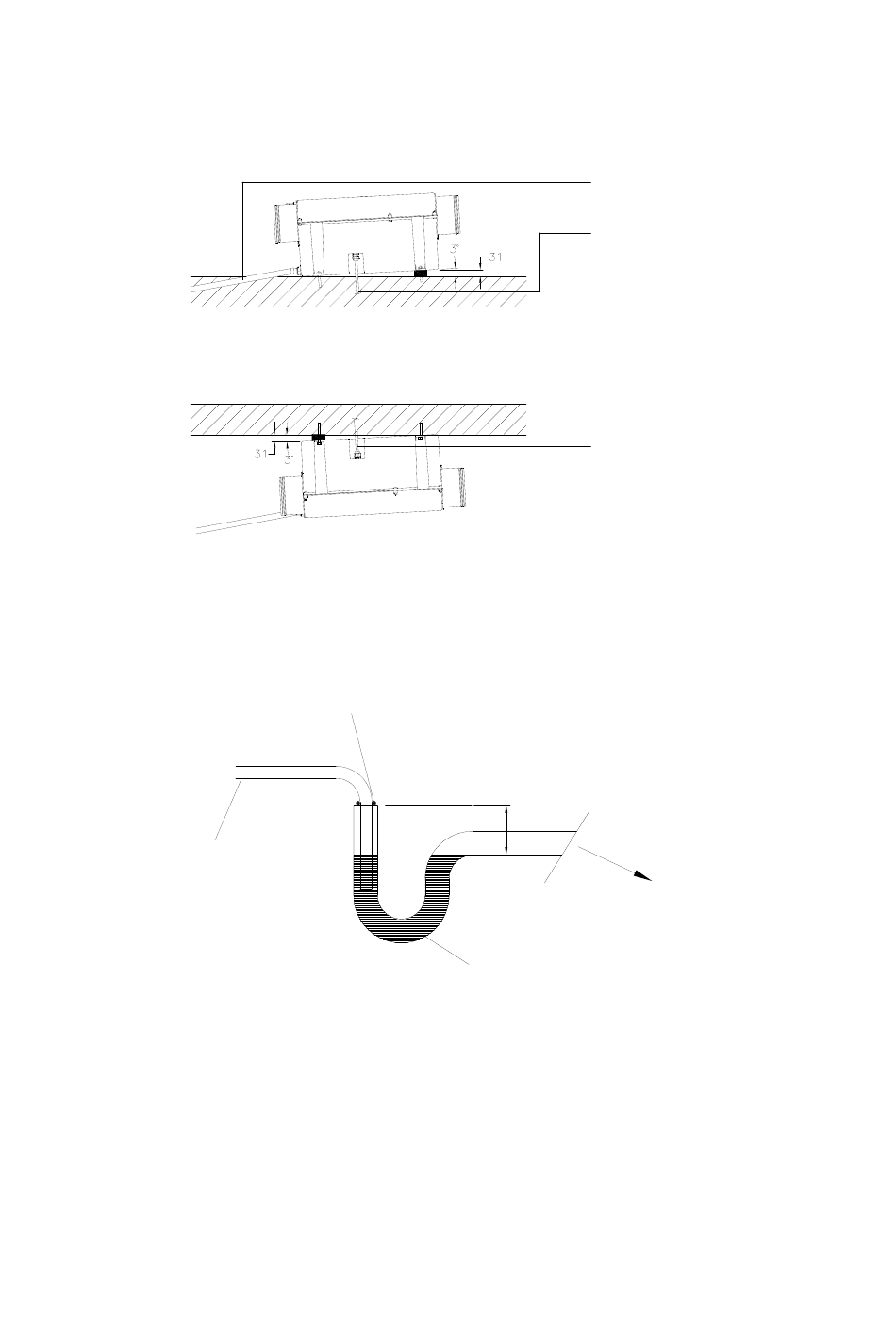

Fig 3a. Mounted on joists
Fig 3b. Ceiling mounted
Fig 4. Water trap details
CONDENSATION
DRAIN FROM UNIT
NOTE:
INSTALL THE CONDENSATE DRAINAGE TUBING IN
ACCORDANCE WITH THE DIAGRAM.
ENSURE THE WATER TRAP IS BELOW THE DRAIN
ELBOW OUT LET "A"
SILICON SEALER
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 3° TOWARDS
THE CONDENSATE DRAIN)
8 CORE CONTROLLER CABLE
8 CORE CONTROLLER CABLE
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 3° TOWARDS
THE CONDENSATE DRAIN)
FALL TOWARDS
A
THE BUILDINGS
DRAINAGE SYSTEM
WATER TRAP
Page 5 of 12
