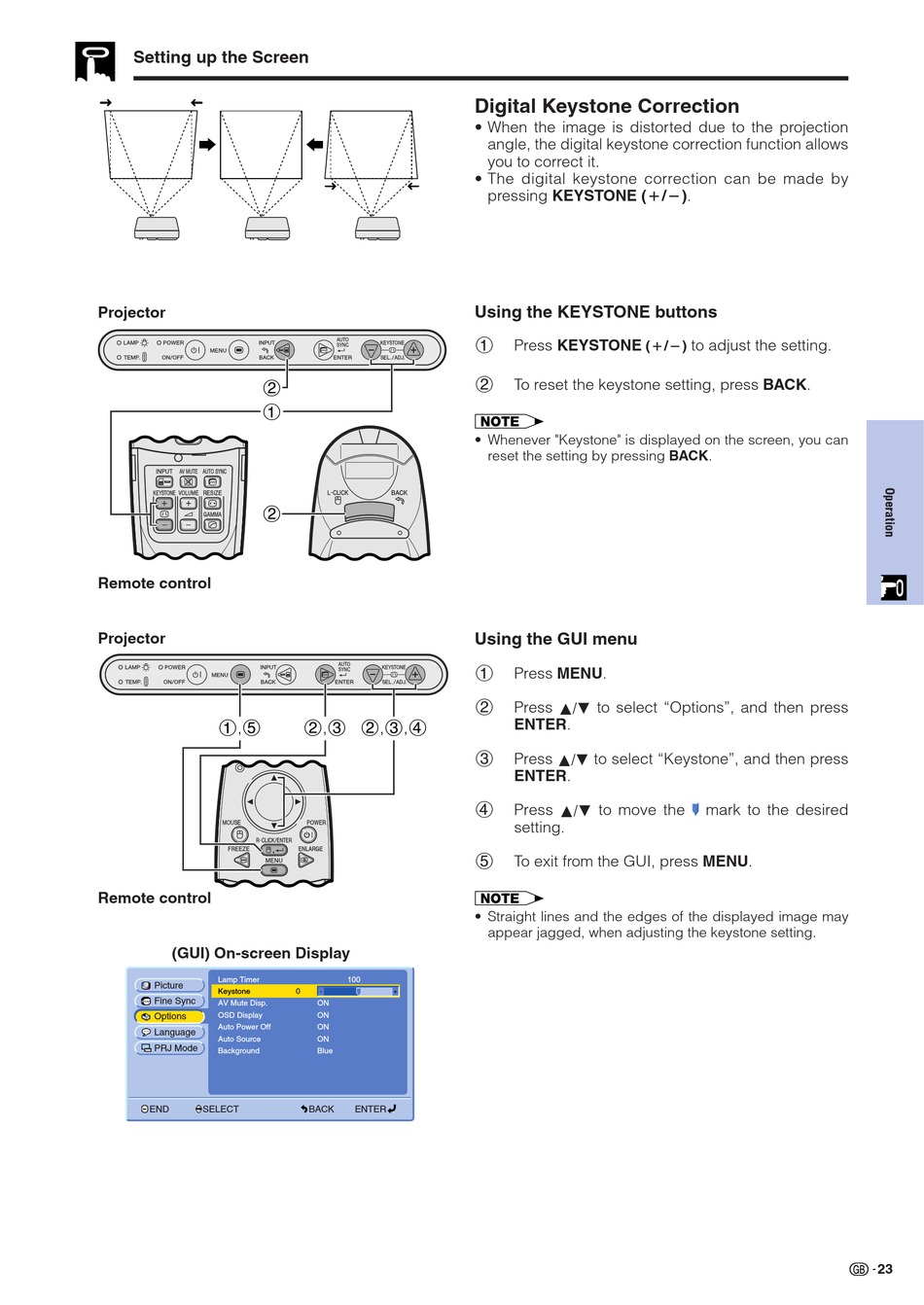

Digital Keystone Correction - Sharp Notevision PG-M15X Operation Manual

Setting up the Screen
Projector
2
1
2
Remote control
Projector
1,5
Remote control
(GUI) On-screen Display
Lamp Timer
Keystone
Fine Sync
AV Mute Disp.
OSD Display
Options
Auto Power Off
Language
Auto Source
PRJ Mode
Background
END SELECT
2,3 2,3,4
100
0
ON
ON
ON
ON
Blue
BACK ENTER

Digital Keystone Correction

• When the image is distorted due to the projection
angle, the digital keystone correction function allows
you to correct it.
• The digital keystone correction can be made by
pressing KEYSTONE ( / ).
Using the KEYSTONE buttons
1
Press KEYSTONE
( / )
2
To reset the keystone setting, press BACK.
• Whenever "Keystone" is displayed on the screen, you can
reset the setting by pressing BACK.
Using the GUI menu
1
Press MENU.
2
Press to select "Options", and then press
∂/ƒ
ENTER.
3
Press to select "Keystone", and then press
∂/ƒ
ENTER.
4
Press to move the
∂/ƒ
setting.
5
To exit from the GUI, press MENU.
• Straight lines and the edges of the displayed image may
appear jagged, when adjusting the keystone setting.
to adjust the setting.
mark to the desired
23
