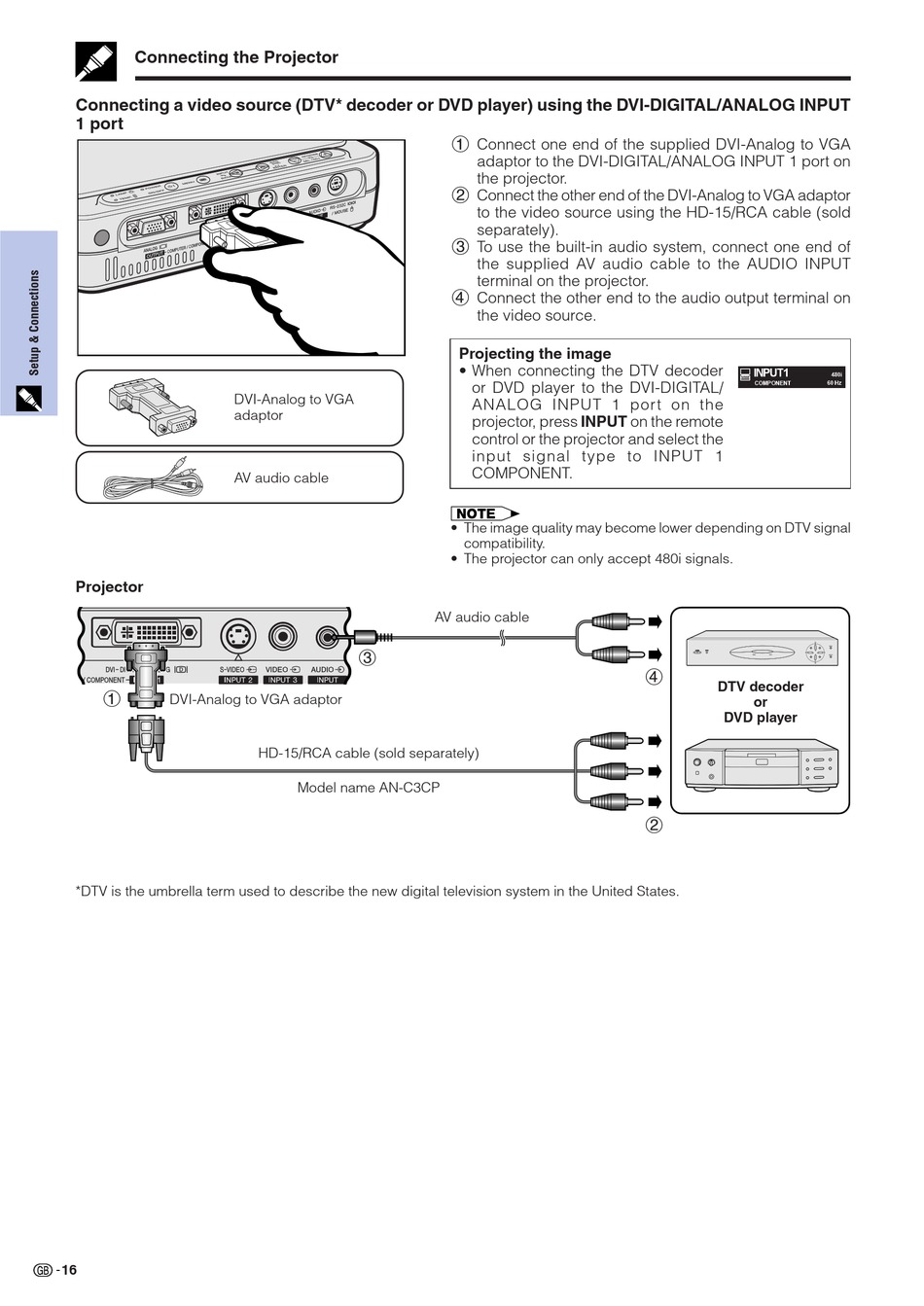

Connecting the Projector
Connecting a video source (DTV* decoder or DVD player) using the DVI-DIGITAL/ANALOG INPUT
1 port
DVI-Analog to VGA
adaptor
AV audio cable
Projector
1
DVI-Analog to VGA adaptor
*DTV is the umbrella term used to describe the new digital television system in the United States.
16
3
HD-15/RCA cable (sold separately)
Model name AN-C3CP
1 Connect one end of the supplied DVI-Analog to VGA
adaptor to the DVI-DIGITAL/ANALOG INPUT 1 port on
the projector.
2 Connect the other end of the DVI-Analog to VGA adaptor
to the video source using the HD-15/RCA cable (sold
separately).
3 To use the built-in audio system, connect one end of
the supplied AV audio cable to the AUDIO INPUT
terminal on the projector.
4 Connect the other end to the audio output terminal on
the video source.
Projecting the image
• When connecting the DTV decoder
or DVD player to the DVI-DIGITAL/
ANALOG INPUT 1 port on the
projector, press INPUT on the remote
control or the projector and select the
input signal type to INPUT 1
COMPONENT.
• The image quality may become lower depending on DTV signal
compatibility.
• The projector can only accept 480i signals.
AV audio cable
