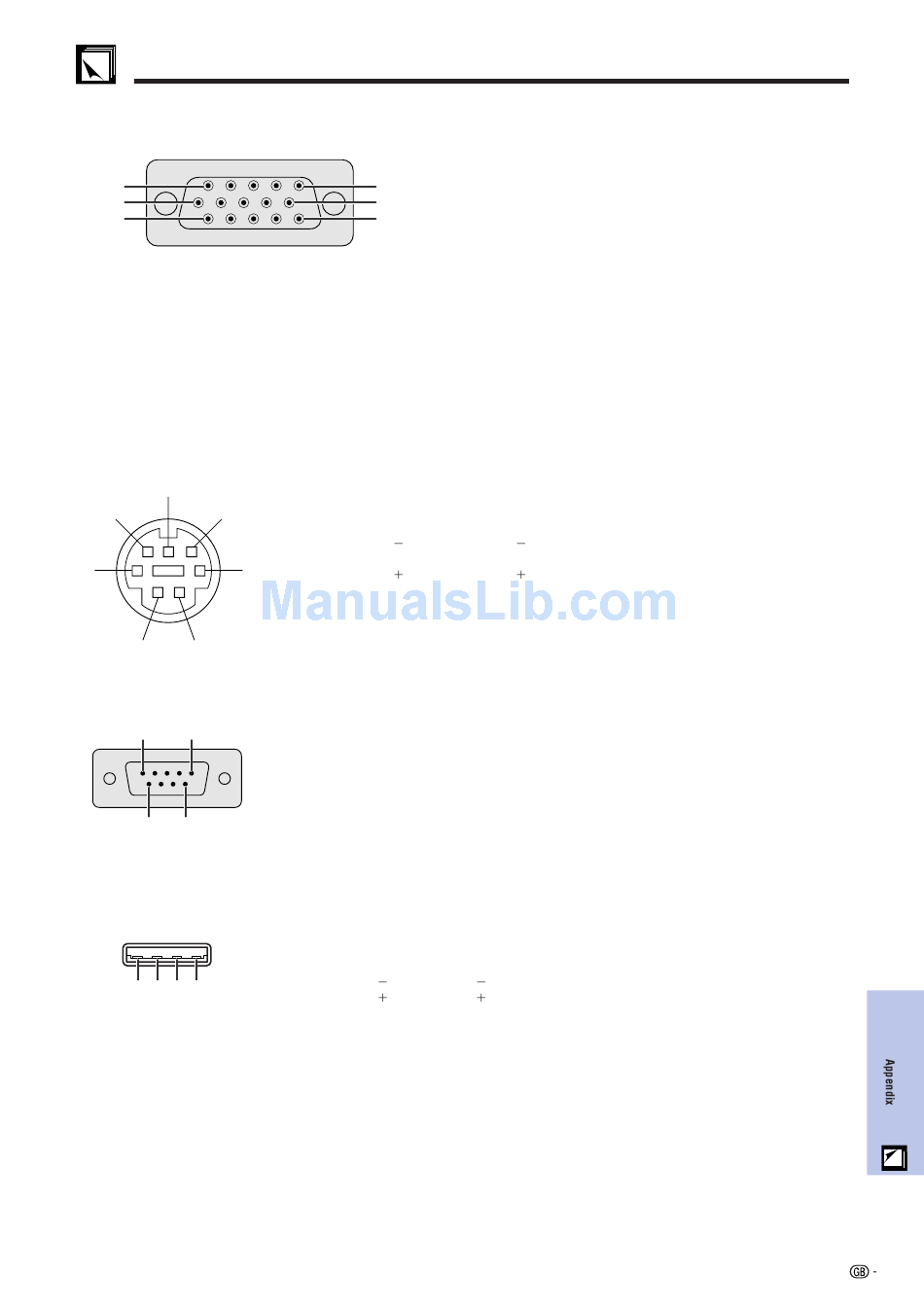

Connection Pin Assignments
OUTPUT (INPUT 1) Signal Port: 15-pin Mini D-sub female connector
11
6
1
RS-232C Terminal: 7-pin Mini DIN female connector
6
5
7
4 3
2 1
RS-232C Port: 9-pin D-sub male connector of the DIN-D-sub RS-232C cable
1 5
6 9
USB connector: 4-pin USB connector of the USB mouse control cable
4 3 2 1
RGB output
Analog
15
10
5
10 GND
11 GND
12 Not connected
13 Horizontal sync signal
14 Vertical sync signal
15 Not connected
Pin No. Signal Name
1 VCC (USB) USB Power
2 RD Receive Data
3 SD Send Data
4 USB ( ) USB Data ( )
5 GND Signal Ground
6 USB ( ) USB Data ( )
7 NC (Reserved)
Pin No. Signal Name
1 CD
2 RD Receive Data
3 SD Send Data
4 ER
5 SG Signal Ground
6 DR Data Set Ready
7 RS Request to Send
8 CS Clear to Send
9 CI
Pin No. Signal Name
1 VCC USB Power
2 USB USB Data
3 USB USB Data
4 SG Signal Ground
1 Video output (red)
2 Video output
(green/sync on green)
3 Video output (blue)
4 Not connected
5 Not connected
6 Earth (red)
7 Earth (green/sync on green)
8 Earth (blue)
9 Not connected
COMPONENT output
Analog
1 P (C )
R R
2 Y
3 P (C )
B B
4 Not connected
5 Not connected
6 Earth (P )
R
7 Earth (Y)
8 Earth (P )
B
9 Not connected
10 Not connected
11 Not connected
12 Not connected
13 Not connected
14 Not connected
15 Not connected
