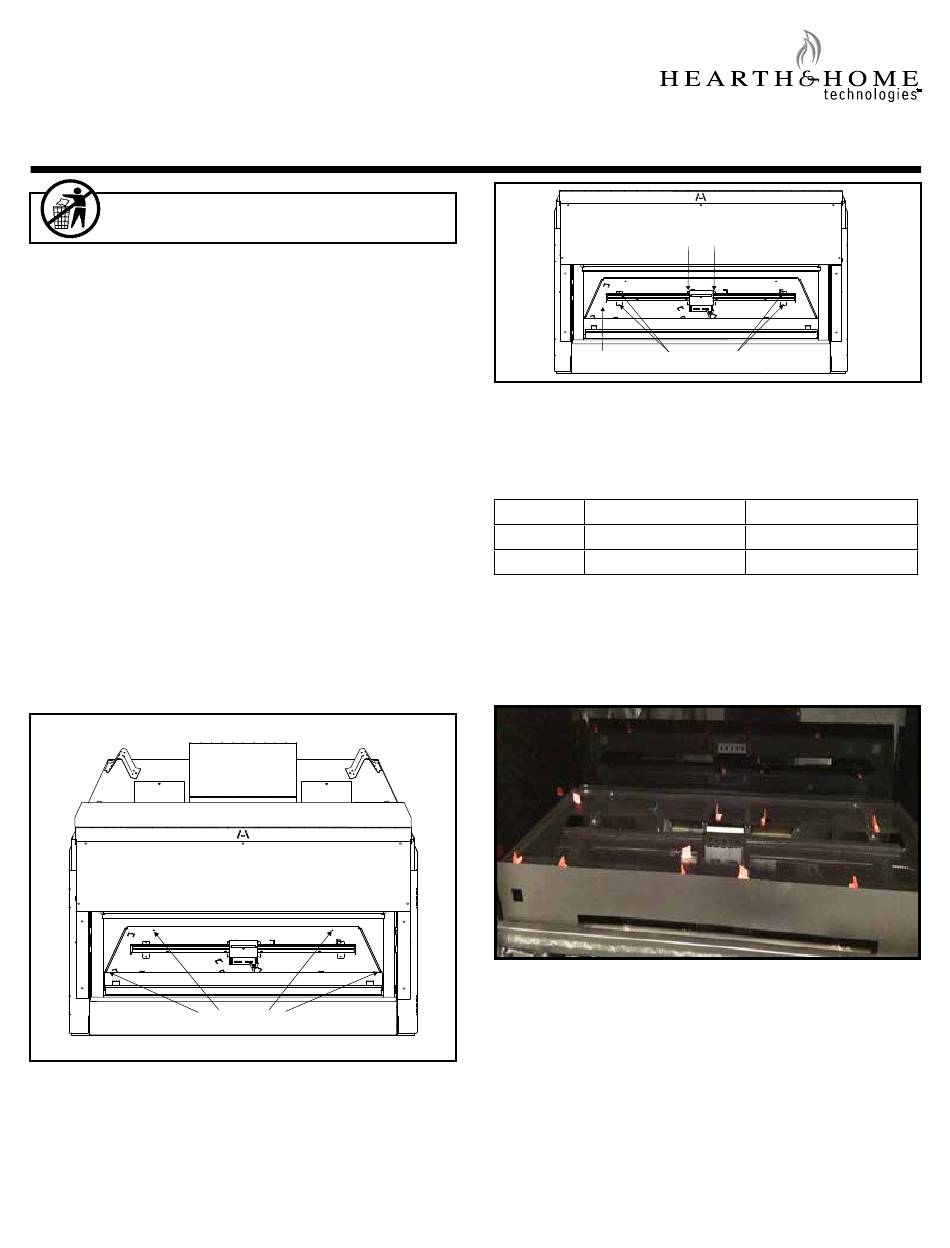

Hearth & Home XLR-LOGS Installation Instructions

Leave this manual with party responsible for use and
operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
CAUTION: Logs are fragile.

Kit Components:

• Log Burner Assembly
• Ceramic Logs (6)
• Lava Rock (1 bag)
• Instructions

INSTALLATION

Note: ULPG gas is only approved for appliances in Europe,
Australia and New Zealand.
1. Remove fixed glass assembly by unlatching the top left
and right spring latches. Allow the fixed glass assembly
to tilt away from the fireplace and lift the fixed glass as-
sembly up and out of the opening.
2. Remove the media tray by removing four screws
located on the front and rear edges edge. See Figure
1.
REMOVE 4 SCREWS
Figure 1. Remove Media Tray
3. Remove base pan by removing 4 screws. Remove
burner assembly by removing two screws that secure
the burner to the pilot assembly bracket. See Figure 2.
Hearth & Home Technologies • XLR-LOGS Installation Instructions • 2198-930 Rev. i • 6/16
XLR-LOGS
MODEL: XLR-PLUS-AU, XLR-PLUS-AUB
• Installation Instructions •
REMOVE 2 SCREWS
BASE PAN
REMOVE 4 SCREWS
Figure 2. Base Pan and Burner Assembly Removal
4. Adjust shutter setting on new burner. See Table 1 or 2.
Table 2 - Shutter Settings: XLR-PLUS
AU
NG 13 mm
ULPG Full Open
5. Replace standard burner with log burner that is included
with log kit by securing the burner to the pilot bracket
with two screws. Re-install base pan with 4 screws.
Figure 4. Log Tabs
7. Locate log tabs in the media tray and bend them out to
90º angle. See Figures 4.
8. Reinstall media tray and secure with four screws.
NZ
13 mm
Full Open
1
