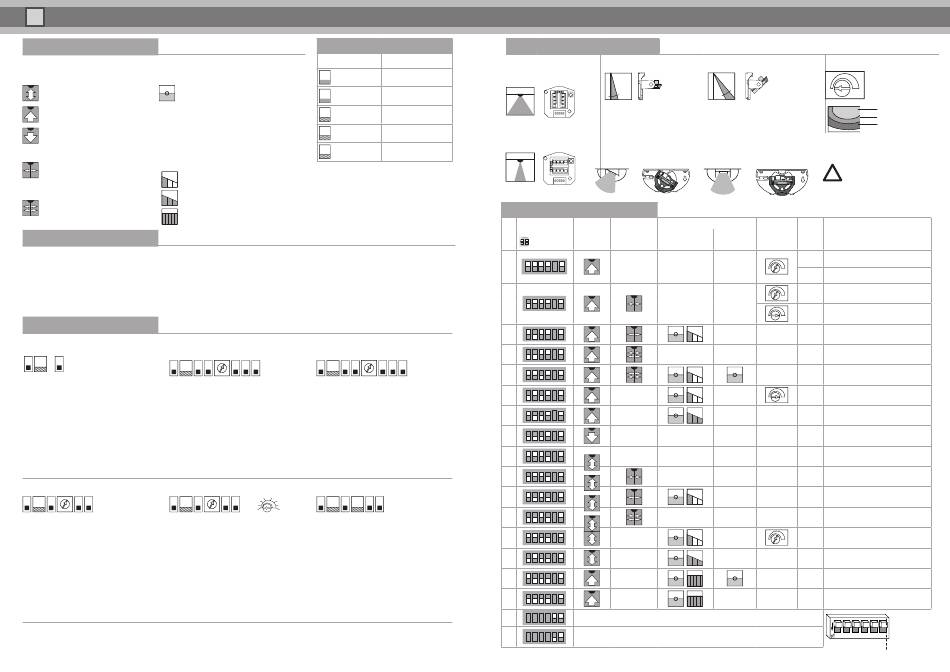

Pepperl+Fuchs RMS-D Brief Instructions page 2

RMS-D / RMS-D-RC / RMS-D-NA / RMS-D-RC-NA
Detection Capabilities
Direction Detection Slow Motion (Turtle Mode)
Detection of the smallest movements
Door closed setting (green LED)
No direction detection
Door opens when a slow-moving object
approaches that would not be detected
With direction detection
with standard detection
forward (toward the radar)
Door open setting (red LED)
With direction detection
The door closes if no movement is detect-
backward (away from the radar)
ed within the set monitoring time.
Cross-traffic suppression
Low cross-traffic (1...5)
Monitoring time/sensitivity
Door remains closed with low
1 second/decreasing
cross-traffic
3 seconds/decreasing
Heavy cross-traffic (6...10)
Door remains closed with heavy
5 seconds/
cross-traffic
constant maximum sensitivity
Commissioning
After applying the operating voltage, the hardware and software are initialized. This process takes 10 seconds. The LED flashes red/green.
Configure the radar. Check the settings by walking within range of the radar. You can only configure additional functions during the initialization period.
DIP switch 1: Fall time setting (output)
DIP switch 2: Immunity setting
DIP switch 3 + 1: Setting for size of detection area, slow motion (turtle mode) — door open
DIP switch 3 + 2: Setting for size of detection area, slow motion (turtle mode) — door closed
Additional Functions
Switching on the Mode Size of Detection Area for Slow Motion
(Turtle Mode) Door Open
5 5
G
5 3 1
G
...
During the initialization period you can switch on 1. Switch DIP switch 5.
the additional functions mode. The LED flashes green.
To do this, switch DIP switch 5. The LED flashes 2. Switch DIP switch 3.
green. Configure additional function and reset 3. Switch DIP switch 1.
DIP switch 5. 4. Change the size of the detection area using
DIP switch 6 must be in the UP position. the potentiometer.
5. Reset DIP switch 1.
Remember the position of the potentiometer 6. Reset DIP switch 3.
so that you can reset it to the original setting The settings are saved.
if required. 7. Reset DIP switch 5.
Immunity (1...7) Fall Time (Output)
5 2 2 5 5 1
G G
1. Switch DIP switch 5. 1. Switch DIP switch 5.
The LED flashes green. The LED flashes green.
2. Switch DIP switch 2. 2. Switch DIP switch 1.
3. Change the sensitivity of the immunity using 3. Change the fall time of the relay using
the potentiometer. the potentiometer. The relay will then be
The LED indicates the set immunity. continually opened and closed with the set
4. Reset DIP switch 2. fall time. The LED changes from green to red
The settings are saved. accordingly.
5. Reset DIP switch 5. 4. Reset DIP switch 1.
The settings are saved.
5. Reset DIP switch 5.
Use with swing doors:
The sensor can be used on swing doors. Install the sensor approx. 20 – 30 cm above the door edge on the door hinge side and activate the cross-traffic
suppression. The closing door leaf is then not detected.
LED Status Indicator
Color Indicator Status
Device ready for
G
Green
operation
R Red Detection active
G
Green flashing Command received
R
Red flashing Fault
Red/green Initialization
R/G
flashing after switching on
Immunity (1...7)
Immunity can be used to minimize interference
such as rain, vibrations, and reflections.
1 = Low immunity
7 = High immunity
DIP switch 4: Restore factory settings (RESET)
DIP switch 5: Activation of additional functions menu
DIP switch 6: Must always be in the ON position
Size of Detection Area for Slow Motion
(Turtle Mode) Door Closed
1 3 5 5 3 2 2 3 5
G
1. Switch DIP switch 5.
The LED flashes green.
2. Switch DIP switch 3.
3. Switch DIP switch 2.
4. Change the size of the detection area using
the potentiometer.
5. Reset DIP switch 2.
6. Reset DIP switch 3.
The settings are saved.
7. Reset DIP switch 5.
Restoring Factory Settings
1,5 s 2,0 s
1 5 5 4 4 5
G R
1,0 s 3,0 s
0,5 s 4,0 s
0,2 s 5,0 s
1. Switch DIP switch 5.
The LED flashes green.
2. Switch DIP switch 4.
The LED flashes red.
3. Reset DIP switch 4.
The radar is reset to the factory settings and
restarted.
4. Reset DIP switch 5 after the end of the
initialization period.
Detection Field Settings
Antenna Characteristics Inclination Angle
Wide (standard)
Width: 4.50 m / depth: 2.00 m
0 degrees
The position can be changed in 10° steps. To do so, hold the PCB at the side,
turn toward the front and move to the required position. The factory setting is 15°.
Narrow (turn antenna 90°)
Width: 2.00 m / depth: 4.50 m Inclined Detection Area
The PCB can be turned in 5° steps so that it is inclined by +/-30°.
DIP Switch Settings
Check the Setting by Walking Within Range of the Sensor
Slow motion (Turtle Mode)
Cross-
DIP
Direction traffic
=DIP switch
¨
No. Detection Suppression Door Open
1 2 3 4 5 6
1 –
2
3
4
5
6 –
7 –
8 –
9 –
10
11
12
13 –
14 –
15 –
16 –
Relay contact is active during detection (N.O.)
Relay contact is passive in the event of detection (N.C.)
Detection Area Size
min. max.
40 degrees
1 = Smallest detection area
16 = Largest detection area
!
Some installation situations
may limit the adjustment options
and the functions of the sensor.
Door Detection Fall
Closed Area Size Time Application Example
1 s Standard
– –
0.2 s Porch
0.5 s Pavement
– –
1 s High mounting (optional, wide area)
–
– –
– 1.5 s Supermarket (optional, wide area)
–
– –
– –
– –
–
– –
– 2 s Retirement home (optional, wide area)
–
–
1 2 3 4
DIP 6 is only available in RC versions
The potentiometer can
be used to change the
size of the detection area.
Min. (1)
50 %
Max. (16)
5 6
