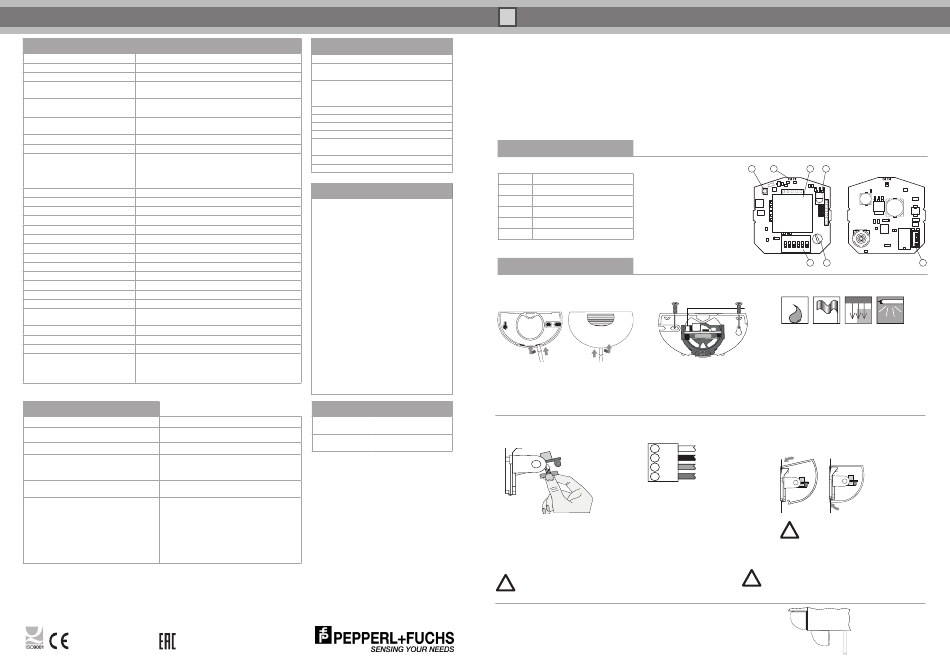

Pepperl+Fuchs RMS-D Brief Instructions

Technical Data
Functional principle Microwave module
Min. 0.1 m/s
Detection speed
CE
Marking
Inclination angle Vertical: 0° – 90° in 10° steps
Horizontal: -30° – +30° in 5° steps
Detection range at installation height Narrow (standard): 2000 x 4500 mm (WxD)
Wide: 4500 x 2000 mm (WxD)
of 2200 mm and 30° inclination angle
24.15 GHz – 24.25 GHz K band
Operating frequency
NA version (FCC/IC): 24.075 GHz – 24.175 GHz K band
Operating mode Radar motion sensor
Red/green LED
Function indicator
Operating elements DIP switch for selecting the mode of operation:
Direction detection, cross-traffic suppression,
slow motion, switching mode, size of detection area,
adjuster for fall time
12 – 36 VDC/12 – 28 VAC
Operating voltage
< 50 mA at 24 VDC
No-load current
Power consumption < 1.2 W at 24 V DC / < 1.7 W at 36 V DC
Switching mode Active/passive
Relay, 1 NO contact/NC contact
Signal output
Max. 48 VAC / 48 VDC
Switching voltage
Switching current Max. 0.5 AAC/1 ADC
Max. 24 W/60 VA
Switching power
0.2 s – 5 s, adjustable
Fall time
Ambient temperature -20° C to 60° C/253 – 333 K
Relative humidity Max. 90 % without condensation
Max. 4000 mm
Mounting height
Degree of protection IP 54
Connection 5 m connection cable with plug, 4-pin
(cable is included in the scope of delivery)
Housing material Polycarbonate (PC), ABS
130 g
Mass
< 20 dBm
Transmitting power (EIRP)
Dimensions excluding securing parts 123 mm (w) x 65 mm (h) x 57 mm (d)
Troubleshooting
Fault Corrective action
Door is detected. Decrease the size of the detection area.
Change inclination angle.
LED not lit up.
No power supply, device not functioning.
Sensor reacts to the slightest influences
Increase immunity,
such as rain, vibrations, or reflections.
decrease the size of the detection area.
Door opens for no apparent reason.
Potentiometer does not respond Operation with remote control is switched on.
Set DIP switch 6 to the UP position.
Remote control does not respond Operation with the DIP switch and potentiometer
is switched on. Set DIP switch 6 to the DOWN
position.
Device is locked. Switch the operating voltage
off and on again. The sensor can now be config-
ured without a code for 30 minutes.
Check the remote control battery.
Pepperl+Fuchs GmbH is certified according to ISO 9001.
for RMS-D-RC
for RMS-D; RMS-D-RC
Factory Settings
Setting
Function
DIP switches Switch 1 – 5: up
Switch 6: down
Detection area size Potentiometer:
Center position
Remote control: 9
Inclination angle 15°
Direction detection Forward
Fall time 1 s
Relay contact Active
Cross-traffic Potentiometer: off
suppression Remote control: 1
Immunity 1
Slow motion Off
Conformity with Standards
EU conformity: Pepperl+Fuchs GmbH hereby
declares that the radio system types RMS-D
and RMS-D-RC comply with Directive 2014/53/
EU.
The full declaration of conformity is available at
www.pepperl-fuchs.com.
US conformity: The products RMS-D-NA and
RMS-D-RC-NA are compliant with Part 15 of the
FCC regulations.
Canada conformity: The products RMS-D-NA
and RMS-D-RC-NA contain an IC-approved
component.
IMPORTANT! The EU-compliant devices must
not be marketed in the United States/Canada
and the US/Canada-compliant devices must not
be marketed in Europe!
Accessories
RMS Remote control
Remote Control
Mounting set and weather
RMS Weather Cap
protective cover
World Headquarters
Pepperl+Fuchs GmbH Lilienthalstr. 200
68307 Mannheim . Germany
Email: FA-info@de.pepperl-fuchs.com
USA Headquarters
Pepperl+Fuchs Inc . Twinsburg . USA
Email: FA-info@us.pepperl-fuchs.com
Asia Pacific Headquarters
Pepperl+Fuchs Pte Ltd . Singapore 139942
Email: FA-info@sg.pepperl-fuchs.com
www.pepperl-fuchs.com
DOCT-1544G
Item no. 215075 02/2018
RMS-D / RMS-D-RC / RMS-D-NA / RMS-D-RC-NA
Brief Instructions: Radar Motion Sensor for Detecting Persons at Automatic Doors
General Information for Your Safety
This device must be installed and maintained only by qualified, trained personnel.
Observe the safety requirements of EN 60950-1. Operate the sensor only with an SELV supply with a limited
output of up to 100 W. Use a T2.5 A fuse, for example, to reliably limit the power output.
Product Information
Scope of Delivery
Operating Elements
Quantity Designation  LED (red/green)
‚ IR receiver
1 Sensor RMS-D...
ƒ IR transmitter
1 Connection cable with plug
„ DIP switches
1 Self-adhesive drilling template
… Potentiometer
2 Screws for mounting
† Connecting plug
1 Mounting instructions
‡
Antenna
Installation
Opening the Device Mounting the Device
Important: Do not open the housing from the top.
Open the housing from below: 1. Attach the self-adhesive template
Insert the screwdriver into the opening provided and drill according to the markings on the
and carefully push open the cover. template.
Fold up and remove the cover. 2. Pull the cable through the opening provided.
3. Fasten the base plate using the screws
(screws are in the housing).
Turning the Antenna Connecting the Radar
to change the antenna characteristics Connect the cable with the connecting plug:
1
2
3
4
Connector Assignment for RMS-D/RMS-D-RC:
 AC/DC supply (white)
‚
AC/DC supply (black)
ƒ Relay contact 1 (red)
1. Select the shape of the detection area
„ Relay contact 2 (green)
(narrow or wide).
2. Remove the antenna carefully using two
Connector Assignment for RMS-D-NA/RMS-D-RC-NA:
fingers.

3. Turn the antenna through 90° and re-attach. AC/DC supply (red)
‚
AC/DC supply (black)
Do not touch any electronic components. ƒ Relay contact 1 (white)
!
Do not use any metallic tools. „ Relay contact 2 (green)
Mounting options - Wall mounting with base plate
- Wall mounting with weather cap using base plate
- Ceiling mounting with base plate
English
3 1 7 2
1 2 3 4 5 6
OPEN
4 5 6
Installation Information
• Protect the radar from rain*.
• Avoid placing moving objects in the detection
field (fans, plants, trees, flags).
• Do not cover the radar. Only install the radar be-
hind appropriate covers. Mechanically operated
drive components may affect the radar.
• Avoid fluorescent lights in the detection field.
* Installation of the RMS Weather Cap is
recommended (see accessories).
Closing the Device
Attach the cover on the top and press down until it
snaps into place.
Before switching on the device,
remove all objects from the door area that
!
do not normally belong there.
To meet UL508 requirements, a 2.5 A slow-blow fuse
!
should be used between the device and the power
supply.
