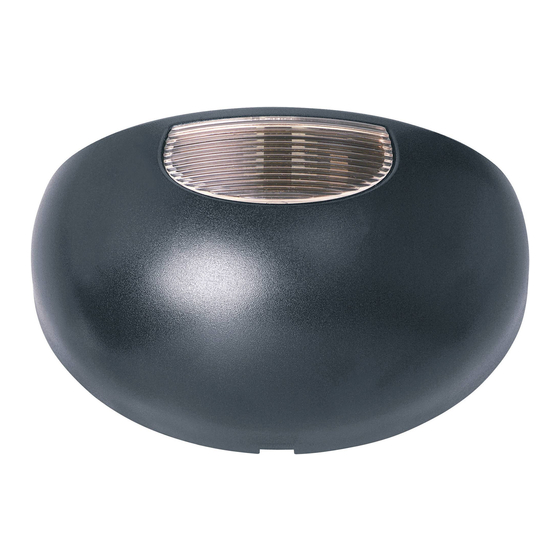

- Page 1 FACTORY AUTOMATION HANDBUCH / MANUAL / MANUAL / MANUALE HANDBUCH / MANUAL / MANUAL / MANUALE Radar-Bewegungsmelder Radar Motion Sensor Avisador de movimientos radar Rilevatori di movimento radar RMS-D, RMS-D-RC, RMS-D BROAD RMS-D-NA, RMS-D-RC-NA...
- Page 2 Inhalt / Content / Contenido / Indice Deutsch............. . . 3 English .
-
Page 3: Table Of Contents
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Table of contents Introduction ..............32 Warranty . -
Page 4: Introduction
No warranty received or granted here shall apply to products that • Have been repaired or modified or tampered with, unless it was done by or with the approval of Pepperl+Fuchs • Have not been maintained in accordance with the instructions for operation and handling provided by Pep- perl+Fuchs •... - Page 5 In no case shall Pepperl+Fuchs be liable for consequential, concrete, or indirect damages, secondary damages or fines, or for lost profits and sales or lost data, even if Pepperl+Fuchs had been made aware of this possibility.
-
Page 6: Declaration Of Conformity
Product family standard: Electromagnetic Compatibility (EMC for light industry and industry) The declaration of conformity for this product can be requested from the manufacturer. Pepperl+Fuchs GmbH in D-68301 Mannheim has a certified quality assurance system in conformity with ISO 9001. 0682... -
Page 7: Safety
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Safety Safety Symbols Used Safety-related symbols Danger! This symbol identifies an immediate and present danger. Failure to observe this warning may result in personal injury or even death. Warning! This symbol warns of a possible malfunction or hazard. -
Page 8: General Safety Instructions
Use only recommended original accessories. If you cannot eliminate malfunctions, take the device out of service. Secure the device against accidental operation. Return the device to Pepperl+Fuchs for repair. Independent interventions and modifications are potentially hazardous, and will void any guarantee and manufacturer's liability. -
Page 9: Description Of Product
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Description of Product Description of Product Radar sensors operate on the Doppler effect, which is analagous to what is experienced in highway traffic: the frequency of emergency or police vehicle sirens in oncoming traffic first increases (tone rises) until the vehicle is at close proximity, then decreases (tone falls) as the vehicle moves away in the other direction. -
Page 10: Indicators And Controls
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Description of Product Indicators and Controls Figure 4.1: Indicators and controls Model number Model number Model number Antenna Screw terminals IR receiver (RC version only) Potentiometer DIP switches IR transmitter (RC version only) LED red/green Table 4.2... -
Page 11: Scope Of Delivery
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Description of Product Operation with RMS Remote Control LED red/green Description Flashes green Command received from remote control. Error LED red/green Description Flashes red Sensor has detected an error. Scope of Delivery Included in the delivery package: •... -
Page 12: Installation
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Installation Installation Storage and Transport Place the device in a shock-resistant container for storage and transport and protect it against humidity. The original packaging provides optimum protection. Observe permissible ambient conditions. -
Page 13: Set-Up
The pin assignment of the screw terminals is as follows: WH/1 ~/0 V ~/+UB BK/2 RD/3 GN/4 Figure 5.1: Connection layout Set-up Make certain when switching on the RMS-D that all objects that do not belong in the normal environment of the door are removed. -
Page 14: Operation
Turn on the power supply. Wait until the red / green LED on the sensor is no longer flashing (10 seconds) Set the desired size and position of the sensing area on the RMS-D. Check the settings by walking through the sensing area. -
Page 15: Setting With Dip Switches And Potentiometer
Setting with DIP switches and Potentiometer Detection mode, Turtle mode, cross-traffic masking and the relay output mode can be adjusted with the DIP switches. Sensitivity can be adjusted with the potentiometer. (for RMS-D-RC, DIP switch 6 must also be UP (ON)) - Page 16 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation 7.2.1 Legend for Table / Radar Configuration Detection properties Without direction detection With direction detection Cross-traffic masking Low or high cross-traffic masking, respectively, is enabled Turtle mode door open 1 second decreasing When the door is open, the smallest movements are detected.
- Page 17 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation Turtle mode door closed If an object has approached so slowly that it was not cap- tured by normal motion detection, the door still opens when the object moves close to the door.
- Page 18 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation...
-
Page 19: Setting Additional Functions
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation Active, relay contact closes during detection (N. O.) Passive, relay contact opens during detection (N. C.) Setting Additional Functions If the position of DIP switch 5 is changed during the initialization time (after power-up), the Additional functions menu is activated. - Page 20 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation 7.3.1 Setting the Output Hold Time To set the hold time (OFF delay) of the relay to the required time, follow these steps: During the initialization time (time after the sensor's power-up when, the LED is flashing red/green), change the position of DIP switch 5.
- Page 21 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation To set the immunity of the RMS-D, follow these steps: During the initialization time (time after sensor's power-up when, the LED is flashing red/ green), change the position of DIP switch 5. The LED flashes green.
- Page 22 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation 7.3.4 Setting Field Variable for Turtle Mode Closed To set the field variable for Turtle mode closed, follow these steps: During the initialization time (time after sensor's power-up when, the LED is flashing red/ green), change the position of DIP switch 5.
-
Page 23: Settings With Rms Remote Control
The programming can be checked immediately. To activate the mode, for the RMS-D-RC DIP switch 6 must be in the "DOWN (OFF)" position! When used with the remote control, the sensor's potentiometer and DIP switch 5 have no function. - Page 24 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation 7.4.3 Adjusting the Sensor (See Section 10.3 for Factory Default settings) RMS-D-RC sensitivity sensitivity sensitivity sensitivity read value read value 1 minim. detection mode 1 minim. 1 minim. output hold time relay contact fade out cross traff.
- Page 25 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation Field Turtle mode door open 1 - 10 Smallest sensing area Largest sensing area Field Turtle mode door closed 1 - 10 Smallest sensing area Largest sensing area Immunity 1 - 7...
- Page 26 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Operation RMS-D-RC RMS-D-RC repeat code enter code access with code field door open lock access field door closed standardprofiles access without code reset code stop connection Select "Code" Select "Access with code" Enter 4-digit code Repeat 4-digit code 7.4.5...
-
Page 27: Maintenance And Repair
If safe operation is no longer possible, the sensor system must be taken out of service and protected against accidental use. Return the device to Pepperl+Fuchs for repair. Independent interventions and modifications are potentially hazardous, and void any guarantee and manufacturer's liability. -
Page 28: Appendix
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Appendix Troubleshooting Source of error Remedy Door is detected Reduce sensitivity, position sensing field further forward LED does not light up No voltage or device is damaged Sensor responds to very slight influences... - Page 29 Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Appendix Sensitivity adjuster Controls 12 ... 36 V DC , 12 ... 28 V AC Operating voltage ≤ 50 mA at 24 V DC Current Consumption ≤ 1 W Power consumption Active (N.O.) / Passive (N.C.)
-
Page 30: Dimensional Drawing
Radar motion sensors RMS-D, RMS-D-RC, RMS-D BROAD, RMS-D-NA, RMS-D-RC-NA Appendix IP54 Protection degree Plug-in screw terminals, 4-pin, 3 m connection cable included in the delivery package Connection ABS, anthracite Housing material 120 g Weight 10.2 Dimensional Drawing 56.33 64.63 10.3... - Page 31 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
- Page 32 USA Headquarters Pepperl+Fuchs Inc. · Twinsburg · USA E-mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd · Singapore E-mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com DOCT-1549 Part No. 211189 Subject to reasonable modifications due to technical advances • Copyright PEPPERL+FUCHS • Printed in Germany 07/2008...
