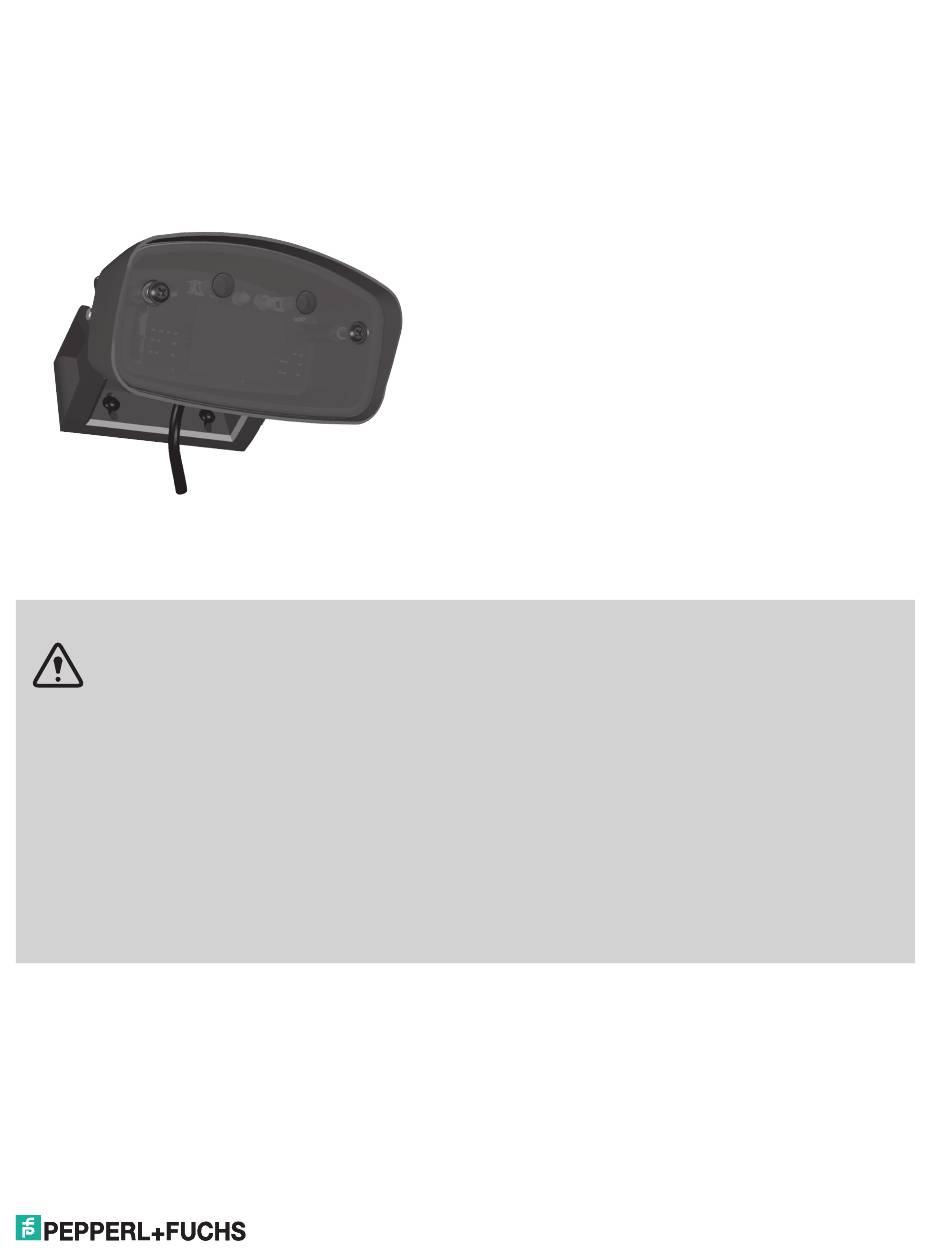

RAVE-D-NA Quick Start Guide
RAVE-D-NA
Quick Start Guide

Safety Information

To meet the safety requirements of EN60950-1 and UL508, the sensor must be operated from a SELV
supply that is reliably limited to an output of 100 W�
The output can be limited using a T2�5 A fuse�
This device must be installed and maintained only by qualified, trained personnel.
The device must be operated and maintained in compliance with the most current version of the North
American National Standards Institute document
A156�10 or A156�19 (whichever is applicable)�
The device must be operated in compliance with any applicable building and/or fire codes.
Pepperl+Fuchs recommends inspection, maintenance, and operation of the device and system in accor-
dance with guidelines of the American Association of Automatic Door Manufacturers (AAADM)�
If the device is deemed unsafe or is not operating properly, repairs must be made immediately by quali-
fied, trained personnel in accordance with the above stated standards and guidelines. If repairs cannot be
made immediately, the device must be disabled and appropriate measures must be taken to secure the
door in a safe position�

Table of Contents

Safety Information ����������������������������������������������������� 1
Installation ����������������������������������������������������������������� 2
Installing the Mounting Bracket ��������������������������������� 2
Securing the Sensor ������������������������������������������������� 2
Connecting the Cable ����������������������������������������������� 2
Power Up �������������������������������������������������������������������� 3
Operating and Display Elements ������������������������������ 3
Detection Field Settings ������������������������������������������� 3
Swivel Angle ������������������������������������������������������������� 3
Tilt Angle ������������������������������������������������������������������ 4
Operation ������������������������������������������������������������������� 4
Vehicle Detection ������������������������������������������������������ 4
Relay Function ���������������������������������������������������������� 4
LED Status Display ��������������������������������������������������� 4
Application Examples ����������������������������������������������� 5
Sensor Settings �������������������������������������������������������� 6
Adjustable Parameters ��������������������������������������������� 8
Troubleshooting �������������������������������������������������������� 9
Conformities �������������������������������������������������������������� 9
Technical Specifications ����������������������������������������� 10
Included with Delivery ��������������������������������������������� 10
Accessories ������������������������������������������������������������ 10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAVE-D-NA and is the answer not in the manual?

Questions and answers

Summary of Contents for Pepperl+Fuchs RAVE-D-NA

  • Page 1: Table Of Contents

    The device must be operated in compliance with any applicable building and/or fire codes. � Pepperl+Fuchs recommends inspection, maintenance, and operation of the device and system in accor- � dance with guidelines of the American Association of Automatic Door Manufacturers (AAADM)�...
  • Page 2: Installation

    RAVE-D-NA Quick Start Guide Installation Installing the Mounting Bracket Pepperl+Fuchs recommends mounting the bracket without the sensor attached� It is also possible to mount the bracket with the sensor secured in place� To do this, swivel the sensor up or down by 90° before attaching the mounting bracket�...
  • Page 3: Power Up

    RAVE-D-NA Quick Start Guide Installation Information Avoid placing moving objects in the detection field (fans, plants, trees, flags, etc.) � Do not cover the sensor� � Note Mechanically operated drive components may affect the radar. � Avoid fluorescent lights in the detection field.
  • Page 4: Tilt Angle

    RAVE-D-NA Quick Start Guide Tilt Angle Installing the mounting bracket at a tilt has the following effects on the detection field: Operation Vehicle Detection The sensor distinguishes between vehicles and people� This distinction is dependent on the settings of the "vehicle detec- tion,"...
  • Page 5: Application Examples

    RAVE-D-NA Quick Start Guide Application Examples Example 1: Vehicle recognition at a door Example 2: Door with vehicle recognition and separate Door control with one switching input� entrance for people Output function for "vehicle forward" vehicle-detection relay� Door control with two switching inputs (vehicle-detection relay and person-detection relay)�...
  • Page 6: Sensor Settings

    RAVE-D-NA Quick Start Guide Sensor Settings Program the sensor using the MENU and VALUE buttons. When one of these buttons is pressed, the flash code is inter- rupted. The set value is output in accordance with the below table. Once the final menu item has been reached, the next press of a button calls up the first menu item again.
  • Page 7: Adjustable Parameters

    RAVE-D-NA Quick Start Guide Adjustable Parameters Check the settings by walk-testing the sensor� For more information on settings, see the "Troubleshooting" section� Generic Remote Remote Description Adjustment Range Factory Manual Setting (Function) (Value) Setting Start parameterization mode—unlock [Function] [Value] Exit parameterization mode exit—lock green Sensitivity—field size *)
  • Page 8 RAVE-D-NA Quick Start Guide Generic Remote Remote Description Adjustment Range Factory Manual Setting (Function) (Value) Setting Switching output 1 = relay n�o� [Function 7] 1, 2 2 = relay n�c� red LED 7x Responsiveness *) 1 = fast [Function 8]...
  • Page 9: Troubleshooting

    Reduce the sensitivity� Conformities US conformity: The product RAVE-D-NA is compliant with Part 15 of the FCC regulations� EU conformity: The product RAVE-D, RAVE-D-GB is compliant with Directive 2014/53/EU, device class 1 and the harmonized standards EN 62311, EN 60950-1, EN 301489-1, EN 301489-3, EN 300440-2�...
  • Page 10: Technical Specifications

    Accessories Included with Delivery Remote control: RADAR RC 1 RAVE-D-NA, incl� connection cable 2 Screws for installation 1 Mounting instructions USA Headquarters Pepperl+Fuchs, Inc. · Twinsburg, OH · USA Email: FA-info@us.pepperl-fuchs.com www.pepperl-fuchs.com Subject to modifications © Pepperl+Fuchs · TDOCT-B216_ENG 01/19...
