SOMFY RTS Receiver for SDN Operating Instructions

DESCRIPTION
The RTS Receiver for SDN allows RTS communication along Somfy's Digital
Network. Using this device, window treatments can be operated locally by
hand-held transmitters.
Each RTS Receiver can memorize up to 5 transmitters / channels.
Each RTS Receiver can store up to 5 group addresses for SDN.
The order in which the motors are programmed will correspond to the SDN
group address. IE; the first transmitter will be group address 1, the 2nd,
group address 2, etc.
It is recommended that the RTS Receiver is mounted away from any sur-
rounding metal with the antenna pointing up for best reception.

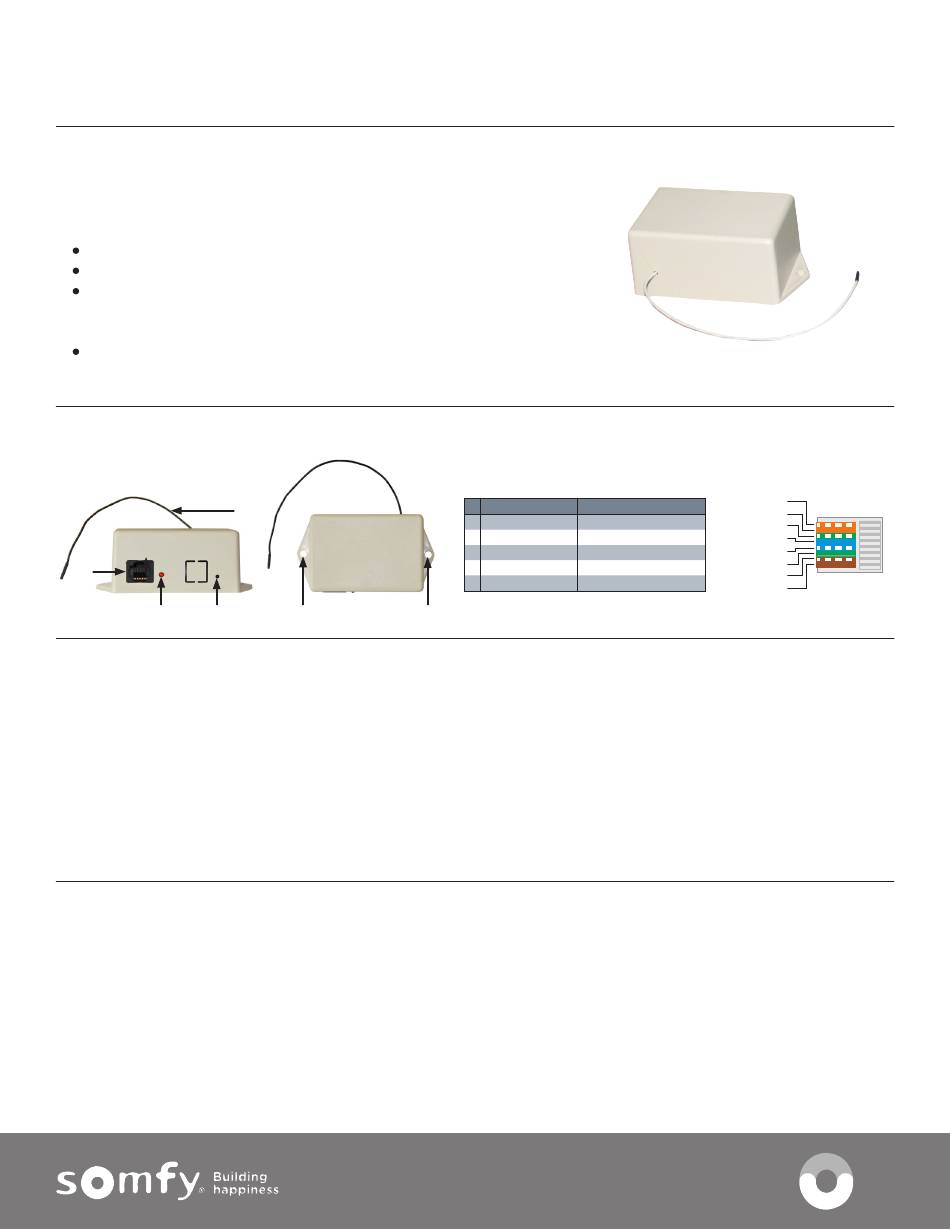

CONNECTION DIAGRAM
4
1
2 3
INITIAL SET UP - RTS
1. Connect the RTS Receiver to the power port of the bus power supply. It should be the only device on the SDN busline during setup.
2. Once the RTS Receiver is connected, the LED will be lit until a transmitter is programmed.
3. Press and hold the program button on the telis transmitter until the LED on the receiver turns off. Release the program button and
the LED will light again. Press and release the program button on the same transmitter again and the LED will turn off and remain off.
This transmitter is now memorized.
4. Connect a PC using a USB to RS485 converter (90152160) to the data port of the bus power supply. Somfy's configuration software
should be running. It can be downloaded from: https://www.somfysystems.com/support/tools/configuration-tools-software.
ASSIGN ADDRESS - SDN
1. Select the correct COM port.
2. Click on CONNECT.
3. Click on "Get MTR Addr." The transmitter address will be displayed. This address should be recorded as it is needed to access the
control once connected to the Somfy Digital Network.
4. Up to 5 group addresses can also be assigned at this time in locations 1 through 5. It must be a 6 digital hexadecimal numeral
(digits 0 - 9, and characters A - F).
5. Click on "Set". Allow 10 seconds for data transfer between PC and Receiver.
6. Click on "Get" under GROUP ADDRESSES and verify the addresses have been updated.

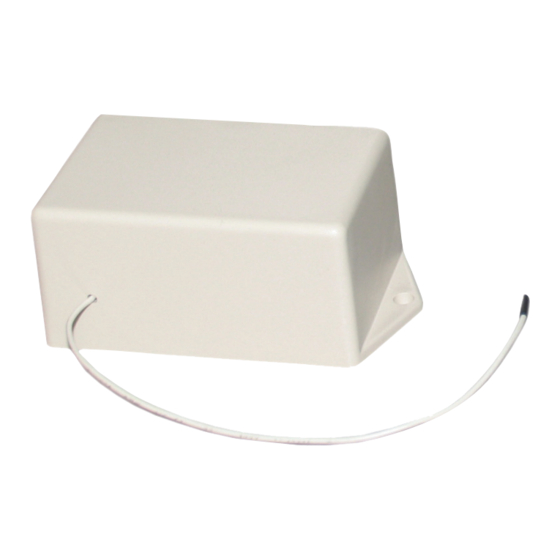

RTS RECEIVER FOR SDN

Installation and Operating Instructions

1
2
3
4
5
5 5
Part Number: 1822294
ELEMENT FUNCTION
SDN Input
RJ45 port for SDN input
LED
LED Indicator
Master Reset
Factory Reset
RTS Antenna
RTS Antenna
Mounting Bracket
Mounting Bracket
SDN Input
1 - Data +
2 - Data -
3 – N/A
4 - Power +
5 - Power +
6 – N/A
7 - Ground -
8 - Ground -
