INSTALLATION
1
Characteristics:
2
Installation:
Before connecting the unit, you must read the instructions carefully.

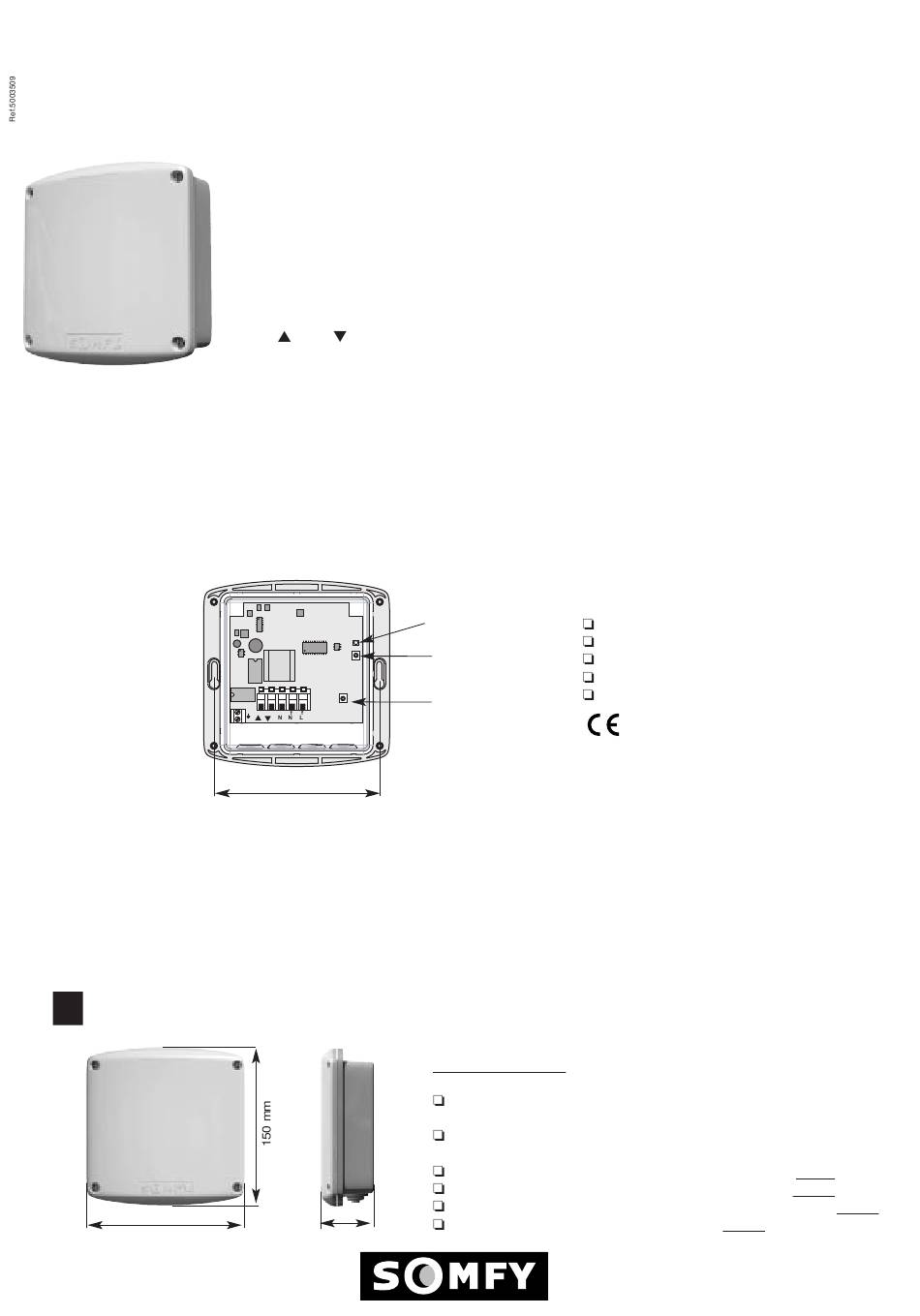

Mounting of the CENTRALIS receiver RTS 2 :
A
150 mm
inteo
CENTRALIS receiver RTS 2
The CENTRALIS receiver RTS is a radio receiver for awnings compatible with all the
RTS controls and the INIS RT.
Commands are transmitted by radio (frequency 433.42 MHz).
With an INIS RT, the functioning of the CENTRALIS receiver RTS is a trip switch type :
, stop,
, stop,...
LED
Built-in manual
security control
133 mm
Recommendations :
wards to avoid water infiltration.
(it could affect the radio transmission).
40 mm
Mains supply : 220-240 V~ 50/60 Hz
Protection index: IP 44
Programming
Operating temperature: -20°C to +50°C
button
Class II product once installed
Normally polluted environment
Install the CENTRALIS receiver RTS with the cables entry pointing down-
Do no install the CENTRALIS receiver RTS against a metallic part
minimum distance between the receiver and the floor : 1,5 m.
minimum distance between the receiver and the roof : 30 cm.
minimum distance between the receiver and the transmitter : 30 cm.
minimum distance between two receivers : 20 cm.
®
guide
Hereby, SOMFY, declares that this equipment is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web
address www.somfy.com Heading CE
