Useful adjustment settings

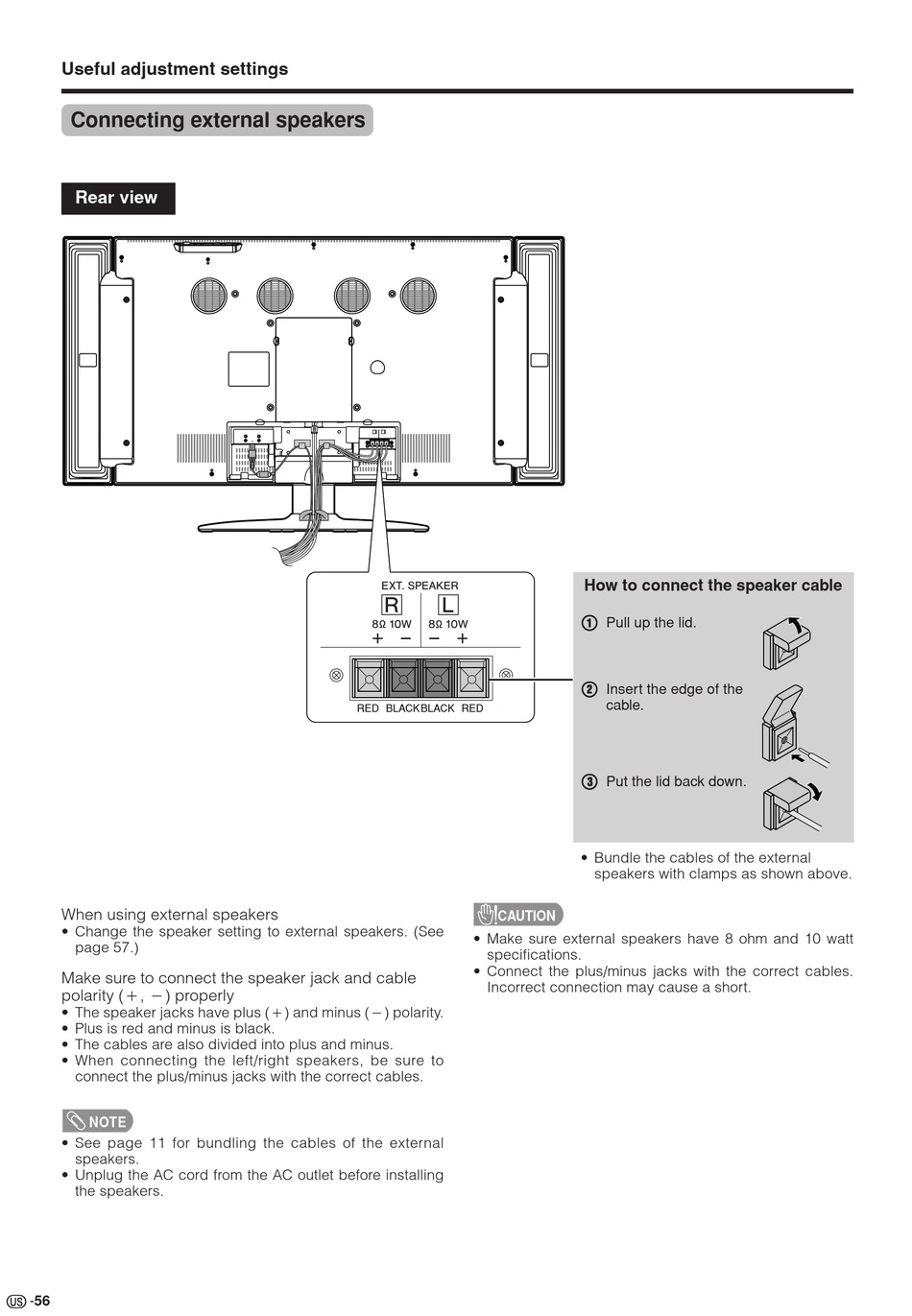

Connecting external speakers

Rear view
When using external speakers
• Change the speaker setting to external speakers. (See
page 57.)
Make sure to connect the speaker jack and cable
polarity (L, +) properly
• The speaker jacks have plus (L) and minus (+) polarity.
• Plus is red and minus is black.
• The cables are also divided into plus and minus.
• When connecting the left/right speakers, be sure to
connect the plus/minus jacks with the correct cables.
NOTE
• See page 11 for bundling the cables of the external
speakers.
• Unplug the AC cord from the AC outlet before installing
the speakers.
56
RED BLACKBLACK RED
CAUTION
• Make sure external speakers have 8 ohm and 10 watt
specifications.
• Connect the plus/minus jacks with the correct cables.
Incorrect connection may cause a short.
How to connect the speaker cable
Pull up the lid.
1 1 1 1 1
Insert the edge of the
2 2 2 2 2
cable.
Put the lid back down.
3 3 3 3 3
• Bundle the cables of the external
speakers with clamps as shown above.
