Remote Control Unit - Sharp Aquos LC 37HV4U Operation Manual

Part names

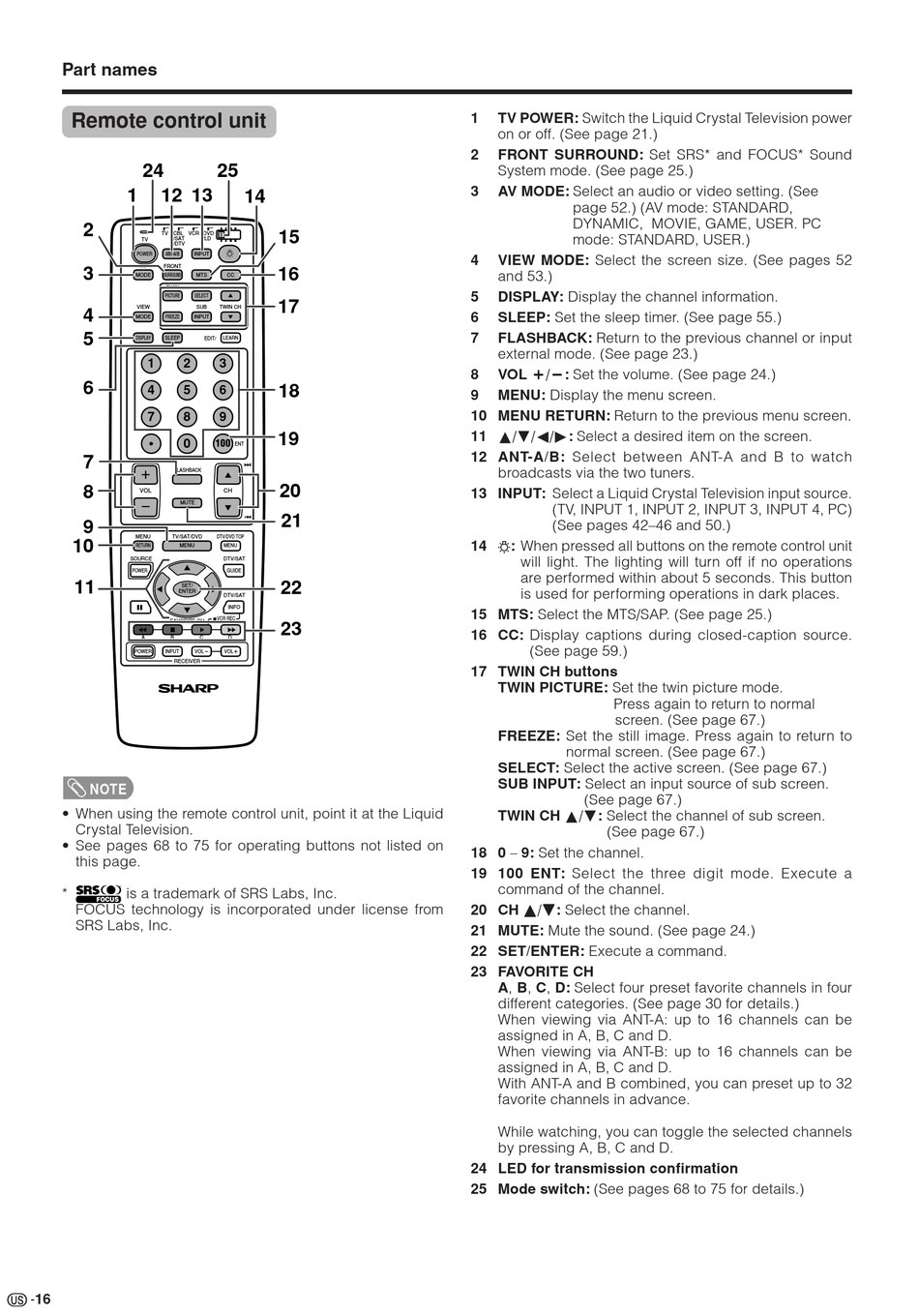

Remote control unit

24
1 12 13
2
TV CBL VCR DVD
/SAT /LD
TV
/DTV
ANT-A/B
POWER INPUT
AV FRONT
3
MODE SURROUND MTS
TWIN
PICTURE SELECT
VIEW SUB
4
MODE FREEZE INPUT
5
DISPLAY SLEEP EDIT/
1 2
6
4 5
7 8
0
7
FLASHBACK
8
VOL
MUTE
9
MENU TV/SAT/DVD
10
RETURN MENU
SOURCE
POWER
11
SET/
ENTER
FAVORITE CH
A B C
POWER INPUT VOL
RECEIVER
NOTE
• When using the remote control unit, point it at the Liquid
Crystal Television.
• See pages 68 to 75 for operating buttons not listed on
this page.
* is a trademark of SRS Labs, Inc.
FOCUS technology is incorporated under license from
SRS Labs, Inc.
16
25
14
15
16
CC
17
TWIN CH
LEARN
3
18
6
9
19
100
ENT
20
CH
21
DTV/DVD TOP
MENU
DTV/SAT
GUIDE
22
DTV/SAT
INFO
VCR REC
23
D
VOL
1 TV POWER: Switch the Liquid Crystal Television power
on or off. (See page 21.)
2 FRONT SURROUND: Set SRS* and FOCUS* Sound
System mode. (See page 25.)
3 AV MODE: Select an audio or video setting. (See
page 52.) (AV mode: STANDARD,
DYNAMIC, MOVIE, GAME, USER. PC
mode: STANDARD, USER.)
4 VIEW MODE: Select the screen size. (See pages 52
and 53.)
5 DISPLAY: Display the channel information.
6 SLEEP: Set the sleep timer. (See page 55.)
7 FLASHBACK: Return to the previous channel or input
external mode. (See page 23.)
8 VOL k k k k k /l l l l l : Set the volume. (See page 24.)
9 MENU: Display the menu screen.
10 MENU RETURN: Return to the previous menu screen.
11 a/b/c/d: Select a desired item on the screen.
12 ANT-A/B: Select between ANT-A and B to watch
broadcasts via the two tuners.
13 INPUT: Select a Liquid Crystal Television input source.
(TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, PC)
(See pages 42–46 and 50.)
14 : When pressed all buttons on the remote control unit
will light. The lighting will turn off if no operations
are performed within about 5 seconds. This button
is used for performing operations in dark places.
15 MTS: Select the MTS/SAP. (See page 25.)
16 CC: Display captions during closed-caption source.
(See page 59.)
17 TWIN CH buttons
TWIN PICTURE: Set the twin picture mode.
Press again to return to normal
screen. (See page 67.)
FREEZE: Set the still image. Press again to return to
normal screen. (See page 67.)
SELECT: Select the active screen. (See page 67.)
SUB INPUT: Select an input source of sub screen.
(See page 67.)
TWIN CH a/b: Select the channel of sub screen.
(See page 67.)
18 0 – 9: Set the channel.
19 100 ENT: Select the three digit mode. Execute a
command of the channel.
20 CH a a a a a /b b b b b : Select the channel.
21 MUTE: Mute the sound. (See page 24.)
22 SET/ENTER: Execute a command.
23 FAVORITE CH
A, B, C, D: Select four preset favorite channels in four
different categories. (See page 30 for details.)
When viewing via ANT-A: up to 16 channels can be
assigned in A, B, C and D.
When viewing via ANT-B: up to 16 channels can be
assigned in A, B, C and D.
With ANT-A and B combined, you can preset up to 32
favorite channels in advance.
While watching, you can toggle the selected channels
by pressing A, B, C and D.
24 LED for transmission confirmation
25 Mode switch: (See pages 68 to 75 for details.)
