Preparation

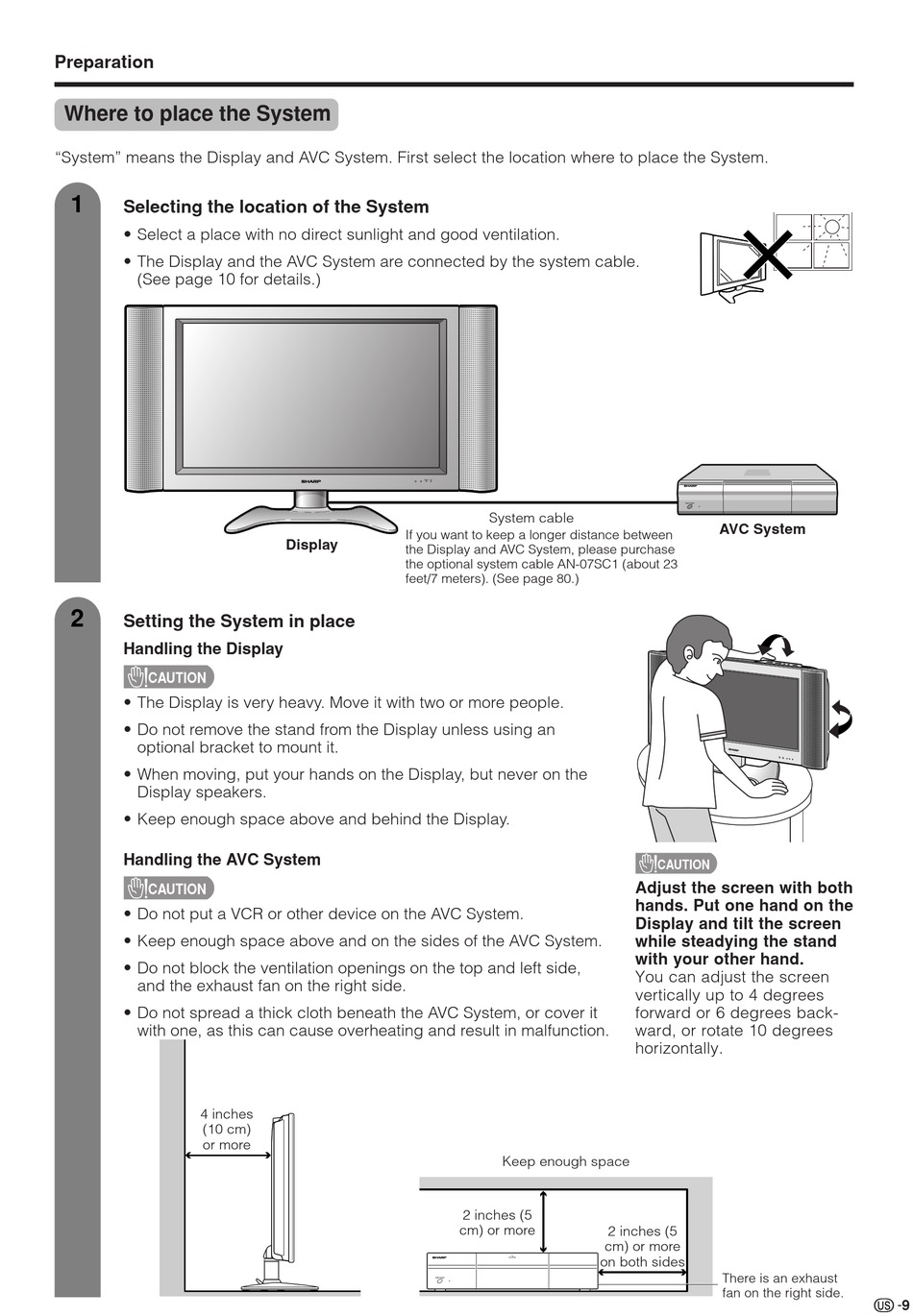

Where to place the System

"System" means the Display and AVC System. First select the location where to place the System.
1
Selecting the location of the System
• Select a place with no direct sunlight and good ventilation.
• The Display and the AVC System are connected by the system cable.
(See page 10 for details.)
2
Setting the System in place
Handling the Display
CAUTION
• The Display is very heavy. Move it with two or more people.
• Do not remove the stand from the Display unless using an
optional bracket to mount it.
• When moving, put your hands on the Display, but never on the
Display speakers.
• Keep enough space above and behind the Display.
Handling the AVC System
CAUTION
• Do not put a VCR or other device on the AVC System.
• Keep enough space above and on the sides of the AVC System.
• Do not block the ventilation openings on the top and left side,
and the exhaust fan on the right side.
• Do not spread a thick cloth beneath the AVC System, or cover it
with one, as this can cause overheating and result in malfunction.
4 inches
10 cm
(10 cm)
or more
or more
If you want to keep a longer distance between
Display
the Display and AVC System, please purchase
the optional system cable AN-07SC1 (about 23
feet/7 meters). (See page 80.)
5 cm or more 5 cm or more
System cable
Keep enough space
2 inches (5
cm) or more 2 inches (5
cm) or more
5 cm or more 5 cm or more
on both sides
AVC System
CAUTION
Adjust the screen with both
hands. Put one hand on the
Display and tilt the screen
while steadying the stand
with your other hand.
You can adjust the screen
vertically up to 4 degrees
forward or 6 degrees back-
ward, or rotate 10 degrees
horizontally.
There is an exhaust
fan on the right side.
9
