e. Settings Mode

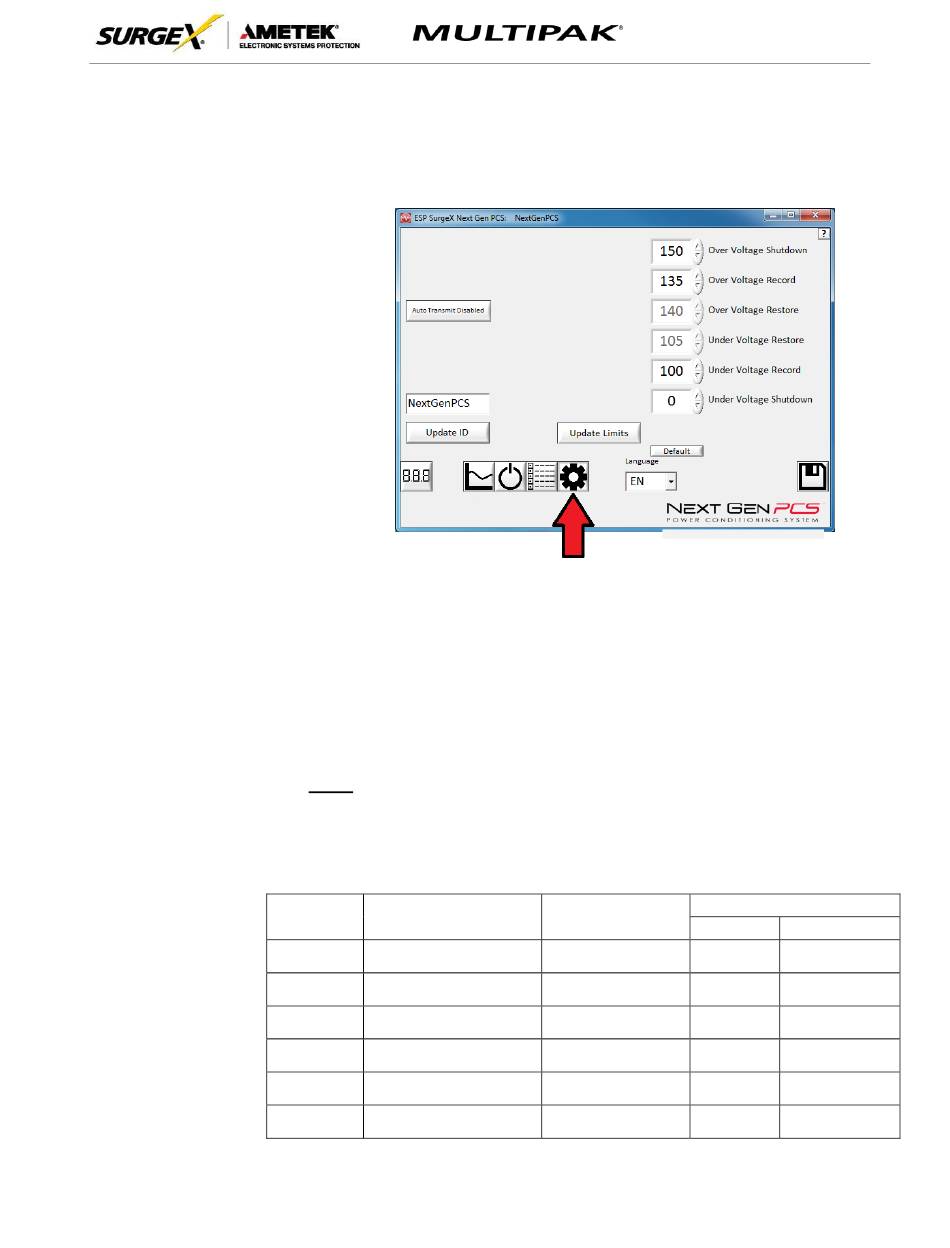

The Settings mode enables the specification of the user-configurable
parameters of Next Gen. When this mode is entered, it displays the
parameters currently in use. Firmware versions prior to 1.53 (120V models)
and 1.02 (208-240V models) do not support the Auto Transmit feature.
i. Auto Transmit: Enables/Disables the automatic transmission of status
information every 30 minutes. Primarily intended for use with Remote
Portal RP-IP.
ii. Update ID: Sets the product identifier specified in the text box. 10
character limit. This is a temporary setting intended to set an ID for
saved reports.
iii. Update Limits: Sets the voltage thresholds specified by the voltage
threshold selection fields. Press Default to select factory default limits.
Note: Restore points may not be specified for Next Gen PCS.
x. Language: Select the software's display language.
xi. Save: Save the current settings for reference.
Limit
Over Voltage
Shutdown
Over Voltage
Record
Over Voltage
Restore
Under Voltage
Restore
Under Voltage
Record
Under Voltage
Shutdown
© 2017 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com
When Activated Action
V > OV Outlets turned Off and
Shutdown
event recorded
OV > V > OV Outlets stay On and
Shutdown Record
event recorded
V < OV After OV
Outlets turned On
Restore Shutdown
V > UV After UV Outlets turned On
Restore Shutdown
UV < V < UV Outlets stay On and
Shutdown Record
event recorded
V < UV
Outlets turned Off and
Shutdown
event recorded
User Manual
Factory Default
120V 208/240V
150 260
135 260
140 250
105 190
100 180
0 140
(Disabled)
16
