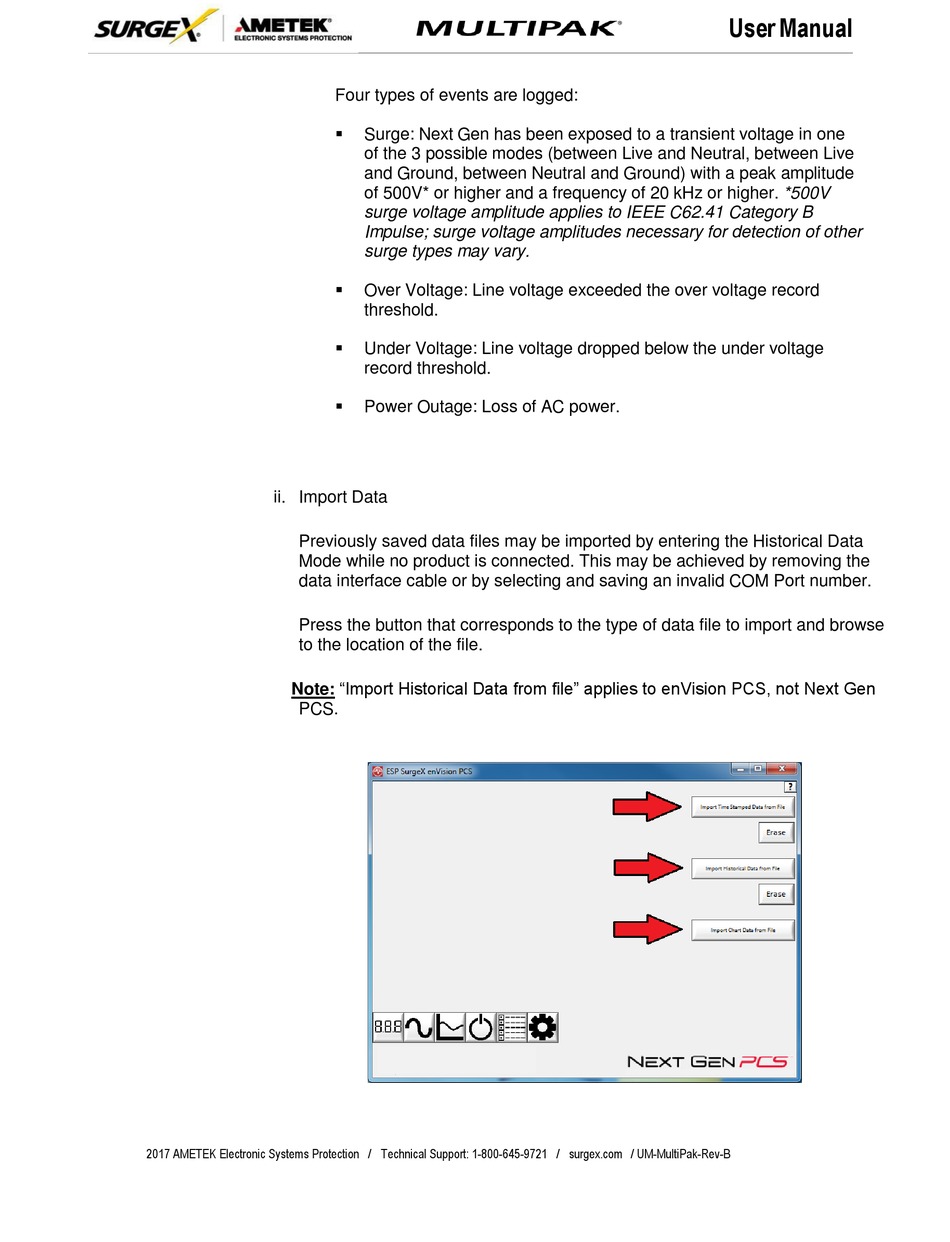

ii. Import Data
Previously saved data files may be imported by entering the Historical Data
Mode while no product is connected. This may be achieved by removing the
data interface cable or by selecting and saving an invalid COM Port number.
Press the button that corresponds to the type of data file to import and browse
to the location of the file.
Note: "Import Historical Data from file" applies to enVision PCS, not Next Gen
PCS.
2017 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com / UM-MultiPak-Rev-B
Four types of events are logged:
▪
Surge: Next Gen has been exposed to a transient voltage in one
of the 3 possible modes (between Live and Neutral, between Live
and Ground, between Neutral and Ground) with a peak amplitude
of 500V* or higher and a frequency of 20 kHz or higher. *500V
surge voltage amplitude applies to IEEE C62.41 Category B
Impulse; surge voltage amplitudes necessary for detection of other
surge types may vary.
▪
Over Voltage: Line voltage exceeded the over voltage record
threshold.
▪
Under Voltage: Line voltage dropped below the under voltage
record threshold.

▪
Power Outage: Loss of AC power.
