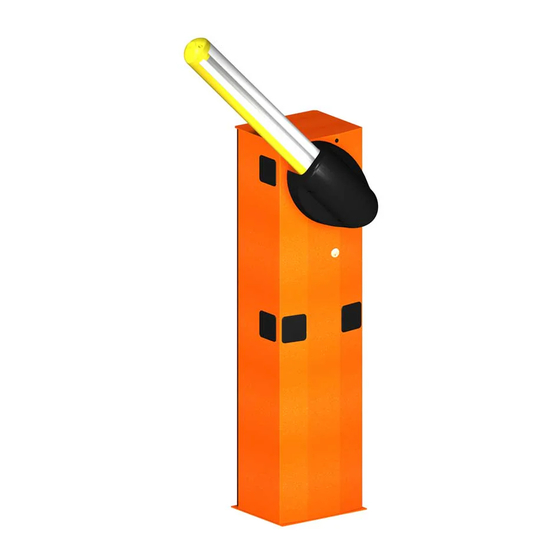

CAME GARD series Installation Manual

CAME GARD series Installation Manual

Street barriers
Hide thumbs Also See for GARD series:

Advertisement

Quick Links

STREET BARRIERS
B a r r i e r l i n e
INSTALLATION MANUAL
G3750
EN
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GARD series and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME GARD series

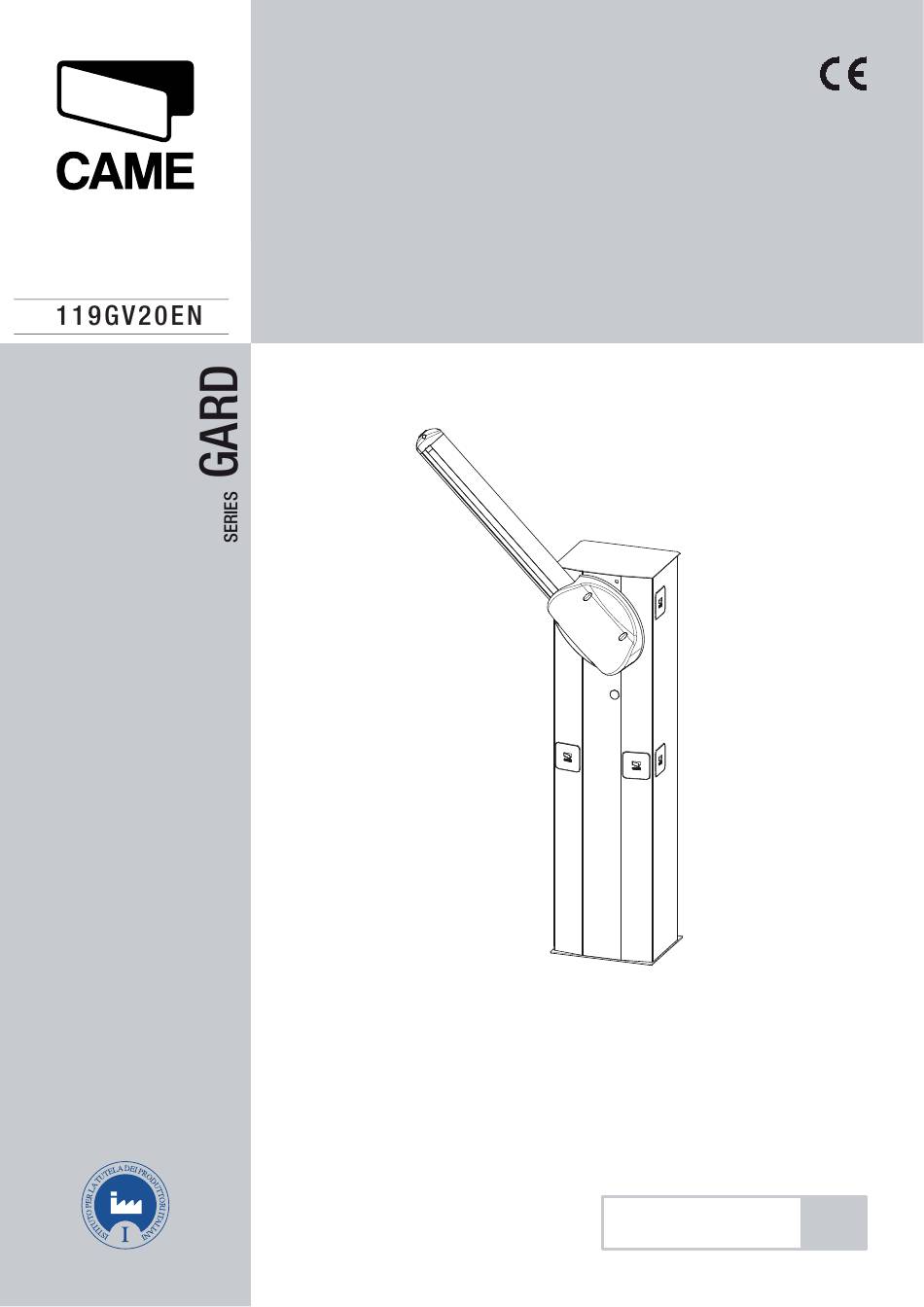

  • Page 1 STREET BARRIERS B a r r i e r l i n e INSTALLATION MANUAL G3750 English...
  • Page 2: Table Of Contents

    Index Legend of symbols p. 4 Intended use and limits to use p. 4 Intended use p. 4 Limits to use p. 4 Description p. 4 Technical data p. 5 Description of parts p. 5 Installation p. 6 Preliminary checks p.
  • Page 3 Warning Sings (e.g. gate plate). (i.e. that for which it was expressly built for). Any other use is Special instructions and to be considered dangerous. Came Cancelli Automatici S.p.A. advice for users is not liable for any damage resulting from improper, wrongful •...
  • Page 4: Legend Of Symbols

    Intended use and limits to use Intended use The 001G3750 automatic barrier is designed and built by CAME Cancelli Automatici S.p.A. in compliance with current safety regulations for use in private or public parking facilities and in residential and high-desnity fl ow areas.
  • Page 5: Technical Data

    Technical data Motor power supply (V: 24 V DC 50 / 60 Hz Opening time: 2÷6 sec. Maximum draw: 15 A Duty cycle:Intensive use Power: 300 W IP protection rating: IP54 Maximum Torque: 200 Nm Weight: 47 kg Reduction ratio: 1/202 Insulation class: I Description of parts BARRIER...
  • Page 6: Installation

    Dimensions max. 3750 Installation Installation must be carried by skilled, qualified technicians in accordance with current regualtions. Preliminary checks Before beginning to install, the following is necessary: Set up a suitable omnipolar cut-off device, with distances greater than 3 mm between contacts, wit sectioned power source; •...
  • Page 7: Types Of Cables And Thicknesses

    Types of cables and thicknesses Cable length Cable length Cable length Connection Cable type 1 < 10 m 10 < 20 m 20 < 30 m 230 V power source to control panel 3G x 1.5 mm 3G x 1,5 mm 3G x 2,5 mm Motor power supply (V) 24 V 3G x 1.5 mm...
  • Page 8: Preparing The Anchoring Base

    Preparing the anchoring base The following illustrations are just examples, in that the space for securing the operator and accessories depends on the overall measurements. It is up to the installer to choose the most suited solution. Dig a pit for the achoring base, set up the needed corrugated tubes for connections coming from the junction pit. N.B.
  • Page 9: Installing The Operator

    Note: install the cabinet with the inspection door facing an easily accessible direction. UNI 5588 M12 Washer To change rotation at a later date, request documentation from authorised dealer or directly contact the Came office near you (see last page or www.came.com) Entrance side...
  • Page 10 Length of arm 230 mm Calculate the length of the arm and of the anti- impact profi le using as reference the lenght of the passage width. . If necessary, cut off any excess length. Passage width (3750 mm maxx) 30 mm Length of anti-impact profile Position the arm attachment cover onto the transmission shaft plate with...
  • Page 11 Note: for mounting with 001G0402 barrier arm, insert and secure two shims (supplied with the barrier arm) into the arm attachment as shown in the drawing. Cut the raceway cover profi les to the length needed to insert them into the barrier arms' raceway.Procedure to follow on both sides.Secure the cap to the ends of the barrier.
  • Page 12: Balancing The Barrier Arm

    Balancing the barrier arm G03750 Before balancing the3 arm, check the table below, the congruance among the chosen spring, accessories to apply and passage width: 001G02040 Ø 40 mm spring YELLOW 001G04060 Ø 50 mm spring GREEN 001G06080 Ø 55 mm spring Passage width (3.75 m max.) Passage width (m) 3.75...
  • Page 13 Release the gearmotor, position the barrier arm vertically and relock the gearmotor. Tighten the screw on the anchoring which is hooked to the transmission shaft. Hook the eyelet piece of the spring to the anchoring bracket.
  • Page 14: Adjusting Endpoints

    Release the gearmotor and manually turn the spring to increase or decrease traction.The barrier arm must stabilise at 45°. Lock the rod securing nut on the spring. Relock the gearmotor. Note: Check proper working order of the spring: - with barrier arm in vertical position, the spring is not under tension. - with barrier arm in horizontal position, the spring is loaded.
  • Page 15 To correct the vertical position (=opening), lower the arm, open the inspection hatch and turn the mechanical stop either clockwise or counter-clockwise, then, secure the stop with the counter nut. Opening mechanical stop counter nut To correct the horizontal position (=closing), raise the bar, adjust the mechanical closing stop and secure it with the counter nut. Mechanical closing stop counter nut...
  • Page 16: Manual Release Of The Barrier Arm

    Description of the control panel Designed and made by CAME Cancelli Automatici S.p.A. The con- - increased braking action of the barrier arm. trol panel is powered by 230 V AC, at 50 / 60 Hz frequency.
  • Page 17: Main Component Parts

    Main component parts Accessories fuse 11 - LED for radio code/automatic closing line fuse 12 - Connectors for speed and breaking adjustments 3 - control panel fuse 13 - Connection connectors for 13LB002 card (battery charger) 4 - motor fuse Selection jumper for command type for button on 14-2 Accessories terminals 15 - Transformer...
  • Page 18: Power Source And Accessories

    Power source and accessories Terminals for powering accessories: - for 24 V AC at normal operation; - when emergency batteries are operating; Overall allowed power: 40 W 230 V AC powered, 50 / 60 Hz frequency Eyelet terminal with screw and washer for ground connection Command devices Stop button(NC contact) -Button to stop barrier armExcludes automatic closing.
  • Page 19: Warning Devices

    Warning devices Flashing light and luminous cord (contact voltage rating: 24 V - 32 W max.)- These fl ash on and off during barrier arm opening and closing. Warning light when barrier arm is open(contact voltage rating: 24V -3W max.) Warns that the barrier arm is open.
  • Page 20: Selecting Functions

    Selecting functions Default setting 1 ON - Automatic closing - The automatic closing timer activates upon upon full opening. The preset time is adjustabel, but is nevertheless subject to any intervention from the safety devices and is not activated after a Total Stop or in case of blackouts (1 OFF -deactivated);...
  • Page 21: Activating The Radio Command

    Activating the radio command Antenna Connect RG58 antenna cable to the apposite terminals. Radiofrequency card Cut off main power and/or disconnet batteries and insert the radiofrequency card. N.B.: The electronic card recognises the radiofrequency card only when it is powered up. Frequency-MHz radio frequency Series...
  • Page 22: Memorisation

    see instructions on package TOUCH TOP-432A • TOP-434A TOP-432NA • TOP-434NA TCH 4024 • TCH 4048 TOP-302A • TOP-304A TOP-862NA • TOP-864NA TOP-432S TWIN T432 • T434 • T438 T132 • T134 • T138 TWIN 2 • TWIN 4 TAM-432SA T152 •...
  • Page 23: Connecting Two Coupled Barriers

    Connecting two coupled barriers You need to determine which barrier will be the Master and which the Slavebecause: - on the Master COMMAND CARD MA- barrierperform all STER connections, settings and adjustments needed for the installation;also, activate the remote control on this barrier. - on the Slave bar- COMMAND CARD rieronly connect the...
  • Page 24: Safety Instructions

    Safety instructions Important general safety instructions This product is only intended to be used for the purpose it was designed. Any other use is therefore improper and dangerous. The manu- facturer is not liable for any damage caused by improper, wrongful or unreasonable use. Stay away from working mechancal parts.
  • Page 25: Extraordinary Maintenance

    Periodic maintenance log to be done by users (every 6 months) Date Notes Signature Extraordinary maintenance The following table is used to log extraordinary maintenance, repair and improvement jobs done by the specialised external firms. N.B. All extraordinary maintenance jobs must be carried out by skilled technicians. Extraordinary maintenance log Installer's stamp Product name...
  • Page 26: Trouble Shooting

    UNI EN ISO 14001 standard to ensure environmental protection. Please help us to safeguard the environment. At CAME we believe this to be one of the fundamentals in its market operations and deve- lopment strategies. Just follow these short disposal instructions: DISPOSING OF THE PACKAGING The components of the packaging (i.e.
  • Page 27: Ce Compliance Statement

    CE Compliance statement...
  • Page 28 (+34) 91 52 85 009 127273, Moscow Moscow (+34) 91 46 85 442 (+7) 495 739 00 69 (+7) 495 739 00 69 (ext. 226) CAME United Kingdom Ltd. CAME United Kingdom Ltd. GREAT BRITAIN PORTUGAL CAME Portugal CAME Portugal...
