Dynojet Power Commander V Installation Instructions Manual page 5

FIG.G
Unplug
Unplug
FIG.H
FIG.I
22-055 www.powercommander.com

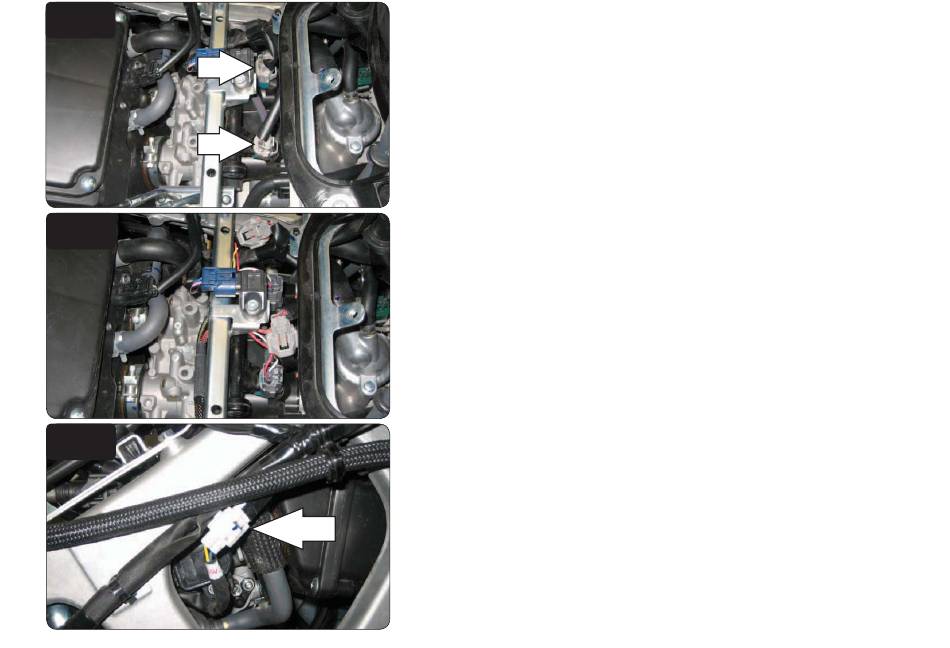

11 Locate the fuel injectors (Fig. G).
Unplug the stock wiring harness from the fuel injectors.
12 Plug the PCV connectors in-line with the fuel injectors and stock wiring
harness (Fig. H).
ORANGE PCV colored wires for the cylinder #1
YELLOW PCV colored wires for the cylinder #2
13 Locate the 3 pin white sub-connector of the Throttle Position Sensor on the
external right side of the frame (Fig. I).
2012 Yamaha T-Max 530 PCV - 5
