Dynojet Power Commander V Installation Instructions Manual page 4

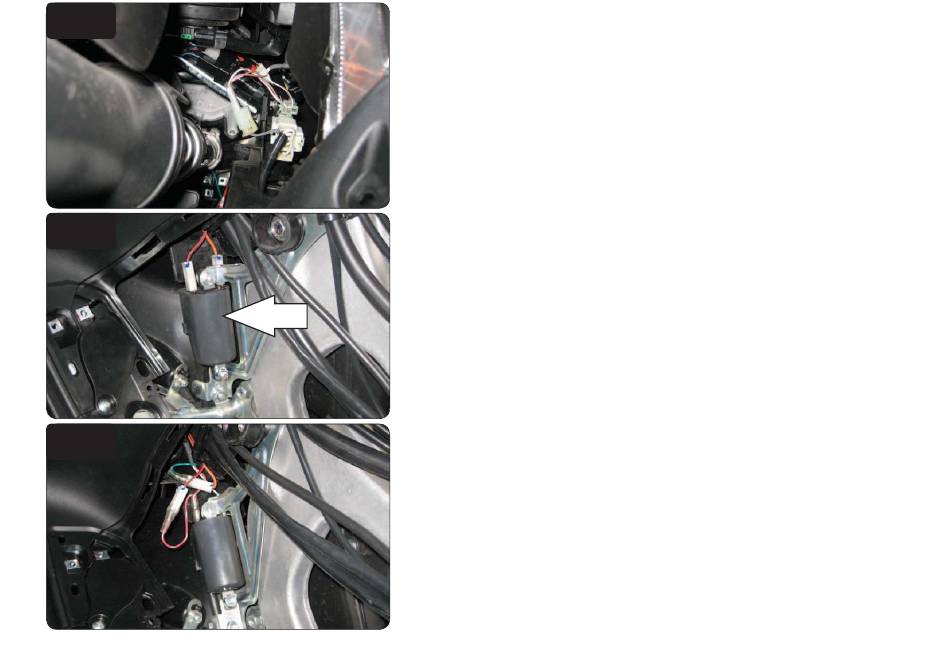

FIG.D
FIG.E
FIG.F
22-055 www.powercommander.com
7 Plug the PCV in-line of the stock crank pickup coil connectors (Fig. D).
Note: This picture is taken from the bottom looking upwards at the crank
pickup coil connectors.
8 Route the PCV harness down to the left side of the frame and toward the
throttle body following the stock harness.
9 Locate the ignition coil on the left side of the frame (Fig. E).
10 Unplug the ORANGE wire from the ignition coil and plug the GREEN colored
wires from the PCV in-line of the stock wiring harness and coil.
Unplug the RED/BLK wire from the ignition coil and plug the RED colored
wires from the PCV in-line of the stock wiring harness and coil (Fig. F).
2012 Yamaha T-Max 530 PCV - 4
