POH / AFM
Section 0
AQUILA AT01-100A
INTRODUCTION

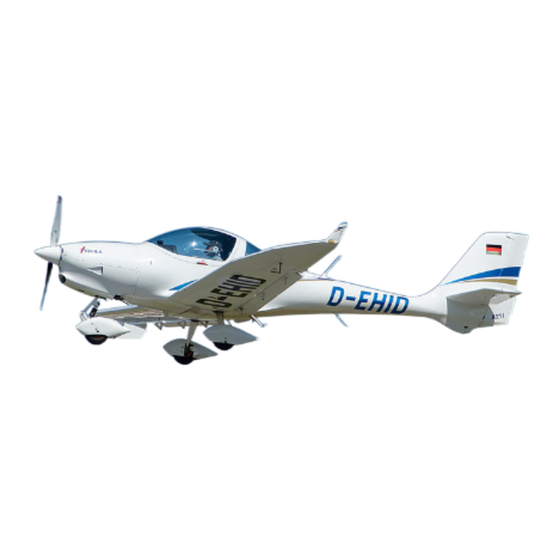

With the AQUILA AT01 you have acquired a very efficient training and utility aircraft, which is
easy to operate and exhibits excellent handling qualities.
To ensure reliable operation and trouble free flight, we recommend that you read this Pilot's
Operating Handbook thoroughly and adhere to the operating instructions and recommendations
given herein.
CAUTION
All limitations, procedures and performance data contained in this handbook are EASA/FAA
approved and mandatory. Failing to follow the procedures and limits set forth in this handbook
can lead to a loss of liability by the manufacturer.
THE HANDBOOK
The handbook is presented in loose-leaf form to ease the substitution of revisions and is sized
in A5-format for convenient storage in the aircraft.
Tab dividers throughout the handbook allow quick reference to each section. A Table of
Contents is located at the beginning of each section to aid the location of specific data within
that section.
All rights reserved.
Reproduction or disclosure to third parties of this document or any part thereof is not permitted,
except with the prior and express written permission of AQUILA Aviation International GmbH.
Copyright © by
Aviation International GmbH
Schönhagen, Germany
Document Nr.:
Issue:
Supersedes Issue:
Date:
Page:
FM-AT01-1010-101
A.06
A.05 (26.06.2017)
01.06.2018
0 – 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aquila AT01-100A
Summary of Contents for Aquila AT01-100A
- Page 1 AQUILA AT01-100A INTRODUCTION With the AQUILA AT01 you have acquired a very efficient training and utility aircraft, which is easy to operate and exhibits excellent handling qualities. To ensure reliable operation and trouble free flight, we recommend that you read this Pilot's Operating Handbook thoroughly and adhere to the operating instructions and recommendations given herein.
-
Page 2: Weight And Balance
POH / AFM Section 0 AQUILA AT01-100A TABLE OF CONTENTS SECTION GENERAL OPERATING LIMITATIONS (approved section) EMERGENCY PROCEDURES (approved section) NORMAL PROCEDURES (approved section) PERFORMANCE (partly approved section) WEIGHT AND BALANCE AIRCRAFT AND SYSTEMS DESCRIPTION HANDLING AND MAINTENANCE SUPPLEMENTS Document Nr.:... -
Page 3: List Of Effective Pages
POH / AFM Section 0 AQUILA AT01-100A LIST OF EFFECTIVE PAGES Section Issue Approved Page Date A.06 0-1 to 0-6 01.06.2018 A.06 1-1 to 1-12 01.06.2018 A.05 2-1 to 2-10 26.06.2017 A.05 3-1 to 3-16 26.06.2017 A.04 4-1 to 4-18 19.10.2015... -
Page 4: List Of Revisions
Generally only complete sections of the POH will be exchanged, and not individual pages. The operation of the AQUILA AT01 is only permitted with a current and up to date POH carried on board. Please refer to the following web page whenever the revision status of your POH is in question. - Page 5 POH / AFM Section 0 AQUILA AT01-100A Revision A.06 of AFM ref. FM-AT01-1010-101 is approved under the authority of DOA ref. EASA.21J.025. Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-101 A.06 A.05 (26.06.2017) 01.06.2018 0 – 5...
-
Page 6: Availability Of Technical Publications
AVAILABILITY OF TECHNICAL PUBLICATIONS To guarantee safe operation and correct maintenance of the AQUILA AT01-100 aircraft, all manuals and technical publications must be kept in the current effective status. All manuals and technical publications relating to the aircraft AQUILA AT01-100 are available... - Page 7 1.4.1 Overall Dimensions 1.4.2 Wings 1.4.3 Horizontal Stabilizer / Elevator 1.4.4 Fuselage and Vertical Stabilizer / Rudder 1.4.5 Landing Gear AQUILA AT01-100 – THREE VIEW DRAWING ENGINE PROPELLER FUEL OIL AND COOLANT 1.9.1 Engine Oil 1.9.2 Engine Coolant 1.10 WEIGHT 1.11...
- Page 8 AIRCRAFT TYPE CERTIFICATION The aircraft AQUILA AT01 is type-certified in accordance with the certification specifications of the Joint Aviation Requirements for Very Light Aeroplanes (JAR-VLA, including the revision VLA/92/1) by the Luftfahrt-Bundesamt, the National Aviation Authority of Germany.
-
Page 9: Warning, Cautions And Notes
Section 1 POH / AFM GENERAL AQUILA AT01-100A WARNING, CAUTIONS AND NOTES Throughout the text, special text boxes marked WARNING, CAUTION and NOTE are used. These terms are defined as follows: WARNING Procedures, practices, etc. which may result in personal injury or loss of life if not strictly adhered to. - Page 10 Section 1 POH / AFM GENERAL AQUILA AT01-100A PRINCIPLE AIRCRAFT DIMENSIONS 1.4.1 Overall Dimensions Wing Span: 33.79 ft (10.3 m) Length: 24.28 ft (7.4 m) Height: 7.87 ft (2.4 m) 1.4.2 Wings Airfoil: HQ-XX mod. Area: 113.02 sq. ft (10.5 m²)
- Page 11 Section 1 POH / AFM GENERAL AQUILA AT01-100A AQUILA AT01-100 – THREE VIEW DRAWING 2,4 m / 7,87 ft 7,4 m / 24,28 ft 10,3 m / 33,79 ft Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-101 A.06 A.02 (15.10.2013) 01.06.2018...
- Page 12 Section 1 POH / AFM GENERAL AQUILA AT01-100A ENGINE The ROTAX 912 S3 is a 4-cylinder 4-stroke engine with air cooled cylinders and liquid cooled ® cylinder heads. The Propeller is driven via an internal reduction gearbox with an integrated overload clutch and a hydraulic constant speed propeller governor.
- Page 13 Section 1 POH / AFM GENERAL AQUILA AT01-100A ENGINE OIL AND COOLANT 1.9.1 Engine Oil Use only oil with an API classification of “SG” or higher. Heavy duty 4-stroke motor oils tend to meet these requirements. For more information regarding engine oil selection, please refer to the Operator’s Manual for all versions of the 912 engine series, section 10.2.3, and to the...
- Page 14 Section 1 POH / AFM GENERAL AQUILA AT01-100A 1.9.2 Engine Coolant A conventional, ethylene glycol and water based coolant is used. Please refer to the Operator’s Manual for the 912 engine series, section 10.2.3, and to the current issue of the ROTAX Service Instructions SI-912-016 when choosing an engine ®...
-
Page 15: Terminology And Abbreviations
Section 1 POH / AFM GENERAL AQUILA AT01-100A 1.11 TERMINOLOGY AND ABBREVIATIONS 1.11.1 Speeds IAS: (Indicated Airspeed) - the speed shown on the airspeed indicator KIAS: IAS expressed in knots CAS: (Calibrated Airspeed) - the indicated airspeed, corrected for position and instrument error. - Page 16 Section 1 POH / AFM GENERAL AQUILA AT01-100A 1.11.2 Weight and Balance Reference Datum: imaginary vertical plane from which horizontal distances are measured for balance purposes Reference Line: fixed horizontal reference line Lever Arm: The horizontal distance from the reference datum to the center of gravity (C.G.) of an item...
- Page 17 Section 1 POH / AFM GENERAL AQUILA AT01-100A 1.11.4 Engine and Performance TOP: (Take-off Power) - maximum power permissible for takeoff MCP: (Max. Continuous Power) - maximum power permitted for continuous operation 1.11.5 Various Serial No. (S/N): Serial Number of the Aircraft Part No.
-
Page 18: Conversion Factors
Section 1 POH / AFM GENERAL AQUILA AT01-100A 1.12 CONVERSION FACTORS 1.12.1 Length 1 ft 0.304 1 in 25.4 1.12.2 Speed 1 kt 1.852 km/h 1 mph 1.609 km/h 1.12.3 Pressure 1 hPa N/m² 1 mbar 1 in. Hg 33.865 1 psi 68.97... - Page 19 If modifications requiring an STC have been conducted on your aircraft at a Maintenance Organization other than AQUILA Aviation, it is the owner’s responsibility to ensure that the appropriate supplements are included in this manual and properly recorded in the index of supplements in section 9.2.
- Page 20 AS-21 Garmin G5 Stby AI (AT01-100BC) AS-22 AS-23 Garmin G5 AI / HSI (AT01-100A) NOTE For the devices listed above and marked with an * software updates will be released on our website (www.aquila-aviation.de) via dedicated Service Information (SI). Document Nr.:...
