POH / AFM
Section 0
AQUILA AT01-100A
INTRODUCTION

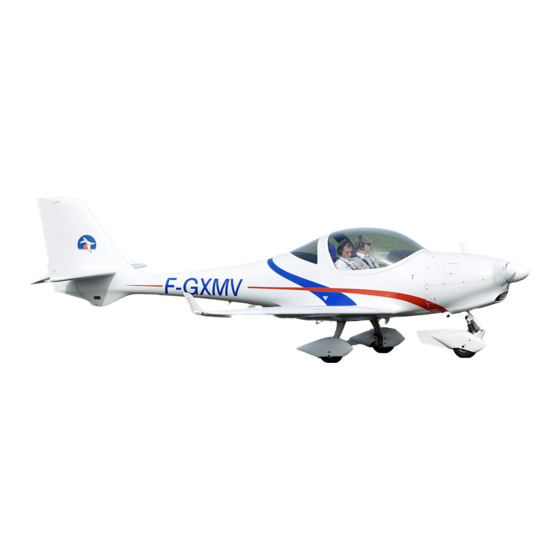

With the AQUILA AT01 you have acquired a very efficient training and utility aircraft, which is
easy to operate and exhibits excellent handling qualities.
To ensure reliable operation and trouble free flight, we recommend that you read this Pilot's
Operating Handbook thoroughly and adhere to the operating instructions and recommendations
given herein.
CAUTION
All limitations, procedures and performance data contained in this handbook are EASA/FAA
approved and mandatory. Failing to follow the procedures and limits set forth in this handbook
can lead to a loss of liability by the manufacturer.
THE HANDBOOK
The handbook is presented in loose-leaf form to ease the substitution of revisions and is sized
in A5-format for convenient storage in the aircraft.
Tab dividers throughout the handbook allow quick reference to each section. A Table of
Contents is located at the beginning of each section to aid the location of specific data within
that section.
All rights reserved.
Reproduction or disclosure to third parties of this document or any part thereof is not permitted,
except with the prior and express written permission of AQUILA Aviation International GmbH.
Copyright © by
Aviation International GmbH
Schönhagen, Germany
Document Nr.:
Issue:
Supersedes Issue:
Date:
Page:
FM-AT01-1010-101
A.05
A.04 (19.10.2015)
26.06.2017
0 – 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT01 and is the answer not in the manual?

Questions and answers

Related Manuals for Aquila AT01

Summary of Contents for Aquila AT01

  • Page 1 AQUILA AT01-100A INTRODUCTION With the AQUILA AT01 you have acquired a very efficient training and utility aircraft, which is easy to operate and exhibits excellent handling qualities. To ensure reliable operation and trouble free flight, we recommend that you read this Pilot's Operating Handbook thoroughly and adhere to the operating instructions and recommendations given herein.
  • Page 2 POH / AFM Section 0 AQUILA AT01-100A TABLE OF CONTENTS SECTION GENERAL OPERATING LIMITATIONS (approved section) EMERGENCY PROCEDURES (approved section) NORMAL PROCEDURES (approved section) PERFORMANCE (partly approved section) WEIGHT AND BALANCE AIRCRAFT AND SYSTEMS DESCRIPTION HANDLING AND MAINTENANCE SUPPLEMENTS Document Nr.:...
  • Page 3 POH / AFM Section 0 AQUILA AT01-100A LIST OF EFFECTIVE PAGES Section Issue Approved Page Date A.05 0-1 to 0-6 26.06.2017 A.02 1-1 to 1-12 15.10.2013 A.05 2-1 to 2-10 26.06.2017 A.05 3-1 to 3-16 26.06.2017 A.04 4-1 to 4-18 19.10.2015...
  • Page 4 Generally only complete sections of the POH will be exchanged, and not individual pages. The operation of the AQUILA AT01 is only permitted with a current and up to date POH carried on board. Please refer to the following web page whenever the revision status of your POH is in question.
  • Page 5 POH / AFM Section 0 AQUILA AT01-100A Revision A.05 of AFM ref. FM-AT01-1010-101 is approved under the authority of DOA ref. EASA.21J.025. Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-101 A.05 A.04 (19.10.2015) 26.06.2017 0 – 5...
  • Page 6 AVAILABILITY OF TECHNICAL PUBLICATIONS To guarantee safe operation and correct maintenance of the AQUILA AT01-100 aircraft, all manuals and technical publications must be kept in the current effective status. All manuals and technical publications relating to the aircraft AQUILA AT01-100 are available...
  • Page 7 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS SECTION 2 LIMITATIONS Page INTRODUCTION AIRSPEED LIMITATIONS AIRSPEED INDICATOR MARKINGS POWER PLANT LIMITATIONS 2.4.1 Engine 2.4.2 Propeller POWER PLANT INSTRUMENT MARKINGS OTHER INSTRUMENT MARKINGS WEIGHT LIMITS CENTER OF GRAVITY LIMITS MANEUVER LIMITS 2.10...
  • Page 8 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS INTRODUCTION This section includes all operating limitations, instrument markings and basic placards necessary for the safe operation of the aircraft, its engine, standard systems and standard equipment. WARNING The aircraft must be operated in compliance with the operating limitations.
  • Page 9 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS AIRSPEED INDICATOR MARKINGS The airspeeds given below are expressed in Indicated Airspeeds (IAS): Marking (IAS) [kts] Remarks White arc 39-90 Full flap operating range Green arc 49-130 Normal operating range Operations in this region must be conducted with...
  • Page 10 (66.9 in) 1,70 m Propeller speed limitations Maximum take-off propeller speed (max. 5 min): 2385 RPM Maximum continuous propeller speed: 2260 RPM old type of cylinder head at cylinder no. 3 (see SB-AT01-029) Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-240 A.04...
  • Page 11 [psi] (0.8) (2.0 – 5.0) 72.5 – 101.5 (7.0) ([bar[) (5.0 – 7.0) old type of cylinder head at cylinder no. 3 (see SB-AT01-029) MARKINGS ON OTHER INSTRUMENTS Green / Red or Green Arc Red Arc Red Arc Yellow Arc...
  • Page 12 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS WEIGHT LIMITS Maximum Takeoff Weight 1653 lb (750 kg) Maximum Landing Weight 1653 lb (750 kg) Max. Weight in Baggage Compartment 88.2 lb ( 40 kg) WARNING Exceeding the weight limits can overload the aircraft and is prohibited. In addition, aircraft performance and handling characteristics may be detrimentally affected.
  • Page 13 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS 2.10 FLIGHT LOAD FACTORS The following flight load factors may not be exceeded while performing any approved maneuvers. Flight Load Factor at V at V With Flaps Extended Positive Negative -2.0 -2.0 WARNING Exceeding the flight load factors limits may result in damage to the aircraft structure.
  • Page 14 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS 2.12 KINDS OF OPERATION LIMITS / MINIMUM EQUIPMENT Certified for: visual flights by Day and Night Table 1 For VFR by Day and Night* • Altimeter (0 – 20,000 ft) • Attitude Indicator Flight and navigational •...
  • Page 15 For approved fuel grades, please refer to paragraph 1.8. 2.14 TEMPERATURE LIMITATIONS Parts of the aircraft structure that are exposed to direct vertical sunlight must be painted WHITE. 2.15 OPERATING ALTITUDE The Aquila AT01-100 has a maximum operating altitude of 14,500 ft. Document Nr.: Issue: Supersedes Issue: Date:...
  • Page 16 Section 2 POH /AFM AQUILA AT01-100A (N/VFR) LIMITATIONS 2.16 PLACARDS • On the instrument panel, in the lower middle section of the panel: • On the instrument panel below the Airspeed Indicator: MANEUVERING SPEED = 112 KIAS • On the inner surface of the baggage compartment door: Document Nr.:...

  • Page 17: Emergency Procedures

    POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES SECTION 3 EMERGENCY PROCEDURES Page INTRODUCTION 3.1.1 Resetting circuit-breakers AIRSPEEDS FOR EMERGENCY OPERATION ENGINE FAILURES – CHECKLISTS 3.3.1 Engine Failure During the Take-off Run 3.3.2 Engine Failure Immediately After Take-off 3.3.3...
  • Page 18 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.12 TRIM CONTROL SYSTEM FAILURES 3-17 3.12.1 Trim System Inoperative 3-17 3.12.2 Trim Actuator Runaway 3-18 3.13 AVIONICS MALFUNCTIONS 3-18 3.13.1 Complete Avionics Failure 3-18 3.13.2 Receive Mode Failure of COM-Equipment 3-18 3.13.3...
  • Page 19 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES INTRODUCTION This section provides checklists with the recommended procedures for coping with various emergency situations. Emergencies caused by aircraft or engine malfunctions are extremely rare if all pre-flight inspections and required maintenance is properly conducted.
  • Page 20 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES ENGINE FAILURES – CHECKLISTS 3.3.1 Engine Failure before Take-off Throttle IDLE Brakes APPLY as required 3.3.2 Engine Failure Immediately After Take-off and during Climb Airspeed (IAS) 70 KIAS WARNING Depending on the own speed and altitude, the wind condition and the remaining engine power a forced landing must be initiated under consideration of the local conditions.
  • Page 21 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.3.3 In-flight Engine Failures ENGINE ROUGHNESS 1. Carburetor heat PULL (ON) 2. Fuel Pump switch 3. Ignition switch SWITCH through the positions L-BOTH, then R-BOTH 4. Throttle Maintain setting If roughness continues: 5.
  • Page 22 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES ENGINE RESTART PROCEDURE WITH STOPPED PROPELLER Non-essential electrical equipment ALT 1 / BAT switch Propeller control lever START position Fuel selector valve SWITCH to fullest tank Fuel Pump switch Throttle warm engine...
  • Page 23 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES When power is restored: Oil pressure CHECK Choke PUSHED (OFF) Electrical equipment SWITCH ON (as required) Oil temperature CHECK FORCED LANDINGS Generally the flight path under D/VFR and N/VFR-conditions should always be chosen such that, in the event of an emergency, a suitable landing field can be reached.
  • Page 24 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES Touch down with lowest possible airspeed. After touch down: Brakes APPLY as required Fuel selector valve Ignition switch ALT1 / BAT switch NOTE After switching off the ALT1/BAT switch, the landing light will also switched OFF. A suitable illumination of the landing area is not possible.
  • Page 25 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES SMOKE AND FIRE 3.5.1 Engine Fire on the Ground Fuel selector valve Throttle WIDE OPEN ALT1 / BAT switch Ignition switch Aircraft EVACUATE immediately once engine stops 3.5.2 Engine Fire In-flight...
  • Page 26 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES CAUTION When a large amount of smoke is present or the fire extinguisher has been used, ventilate the cabin by unlocking the canopy latch. If possible, the fire extinguisher should be secured after use.
  • Page 27 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES SPIN RECOVERY PROCEDURE Rudder Full deflection opposite direction of rotation Elevator Neutral or slightly forward Aileron Neutral Throttle IDLE Flaps Rudder Neutral when rotation stops Elevator Carefully ease out of dive Make a smooth recovery from the dive to regain level flight attitude.
  • Page 28 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES LANDING WITH A FLAT TIRE When landing with a defective tire, or this is suspected, proceed as follows: Flaps LDG position Perform touch down on the side of the runway opposite the defective tire. This allows...
  • Page 29 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.10.2 Alternator Failure 3.10.2.1 Ammeter shows discharge and / or ALT 1 warning light illuminates 1. ALT1 switch SWITCH OFF then ON, approx. 10 sec. interval 2. ALT1 circuit breaker (see 3.1.1)
  • Page 30 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.10.2.2 ALT 2 warning light illuminates 1. ALT 2 circuit breaker (see 3.1.1) RESET if tripped If ALT 2 warning light remains on: 2. ALT 2 circuit breaker PULL NOTE ALT 1 (external alternator) takes over the power supply. The flight may be continued, reducing electrical power consumption to a minimum (monitor ammeter) as sufficient power is available.
  • Page 31 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.10.2.4 VOLT warning light illuminates or blinks Both alternators supplies either too low (permanent red light) or too high voltage (red flashing light). 1. ALT 1 switch switch OFF then ON;...
  • Page 32 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.10.3 Low Voltage Indication Low voltage indication on the ground (needle in or below red-green shaded arc) Engine speed Increase RPM until the needle moves into the green arc. (RPM should be below 1350)
  • Page 33 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.11 FLAP CONTROL SYSTEM MALFUNCTIONS FLAP POSITION INDICATOR or FLAP ACTUATOR MALFUNCTION Flap Actuator circuit breaker (see 3.1.1) RESET, if tripped Flap Control circuit breaker (see 3.1.1) RESET, if tripped Flap position...
  • Page 34 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.12.2 Trim Actuator Runaway Control Column HOLD in position Trim Actuator circuit breaker PULL Trim switch CHECK if pressed or jammed If the problem is obvious, and can be solved: Trim Actuator circuit breaker (see 3.1.1)
  • Page 35 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES 3.14 STARTER MALFUNCTION During engine start on ground, power transmission from the starter to the engine is defect (a continuing and excessive howling tone is audible). Throttle IDLE Ignition switch Repair damage before conducting planned flight.
  • Page 36 POH /AFM SECTION 3 AQUILA AT01-100A (N/VFR) EMERGENCY PROCEDURES [intentionally left blank] Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-240 A.04 A.02 (15.10.2013) 26.06.2017 3 - 20...
  • Page 37 Section 5 POH / AFM AQUILA AT01-100A PERFORMANCE SECTION 5 PERFORMANCE Page INTRODUCTION PERFORMANCE CHARTS 5.2.1 Airspeed Calibration 5.2.2 Stall Speeds 5.2.3 Crosswind Component 5.2.4 Flight Planning 5.2.5 Take-off Distance 5.2.6 Climb Performance / Cruise Altitude 5.2.7 Climb: Fuel Consumption, Time and Distance 5.2.8...
  • Page 38 INTRODUCTION The performance data in the following charts give an overview on the performance and capabilities of the AQUILA AT01. This information provides the basis for flight planning prior to every flight. All data in the charts haves been acquired during flight testing conducted with an aircraft and engine in a good operating condition.
  • Page 39 Section 5 POH / AFM AQUILA AT01-100A PERFORMANCE PERFORMANCE CHARTS 5.2.1 Airspeed Calibration Airspeed calibration accounts for the position error of the pitot-static pressure system, but not for the instrument error. Assumption: zero instrument error Example: 120 KIAS (indicated airspeed) corresponds to 118 KCAS (calibrated airspeed)
  • Page 40 Section 5 POH / AFM AQUILA AT01-100A PERFORMANCE 5.2.2 Stall Speeds Stall speeds were determined in the following configuration: Forward center of gravity (CG) limit: 16.8 in (427 mm) behind the Ref. Datum Takeoff weight 1653 lb. (750 kg) Engine idle...
  • Page 41 Section 5 POH / AFM AQUILA AT01-100A PERFORMANCE 5.2.3 Demonstrated Crosswind Component, Crosswind Diagram Maximum demonstrated crosswind component: 15 knots (27 km/h) WARNING Stronger crosswind components may render the aircraft uncontrollable! 0° 10° 20° 30° 40° 50° 60° 70° 80°...
  • Page 42 Section 5 POH / AFM AQUILA AT01-100A PERFORMANCE 5.2.4 Flight Planning The performance tables and diagrams on the following pages contain all information required for flight planning from take-off at your point of departure to the landing at your destination.
  • Page 43 Section 5 POH / AFM AQUILA AT01-100A PEFORMANCE 5.2.5 Take-off Distance 1000 3280 Notes: Take-off Weight Airspeed [KIAS] [lbs]([kg]) Lift-Off 50 ft - For operations on dry, grass runway, increase ground roll 1653 (750) distance by 25%, on soft grass runway up to 40%.
  • Page 44 Example: Pressure Altitude 3000 ft Weight 1587 lb (720 kg) Rate-of-Climb 575 ft/min Outside Air Temperature +59°F (15°C) Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-101 FM AT01 1010 101 A.05 A.05 A.02 (15.10.2013) A.02 (15.10.2013) 26.06.2017 26.06.2017 5 - 8...
  • Page 45 POH / AFM Section 5 PERFORMANCE AQUILA AT01-100A 5.2.7 Climb: Fuel, time and Distance Conditions: Vy= 65 KIAS, to 5000 ft 2260 rpm, MCP, Vy= 63 KIAS, to 10.000 ft Flaps : UP For each 8°C above ISA, increase Vy= 61 KIAS, to 13.000 ft m = 750 kg (1653 lb) time, distance and fuel by 10%.
  • Page 46 Density Altitude: 5600 ft Set Performance: 75% Speed: 121 kts Outside Air Temperature +50°F (+10°C) Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-101 FM AT01 1010 101 A.05 A.05 A.02 (15.10.2013) A.02 (15.10.2013) 26.06.2017 26.06.2017 5 - 10 5 10...
  • Page 47 POH / AFM Section 5 AQUILA AT01-100A PERFORMANCE 5.2.9 Cruise Power Settings Engine performance in % of MCP Pressure Standard altitude Head temperature [ft] [°C] [°F] [U/min] [in Hg] [l/h] [gal/h] [U/min] [in Hg] [l/h] [gal/h] [U/min] [in Hg] [l/h]...
  • Page 48 Power Setting: 75% Endurance: 4.52 h = 4 h 31' Outside Air Temperature: 50°F (+10°C) Document Nr.: Issue: Supersedes Issue: Date: Page: FM-AT01-1010-101 FM AT01 1010 101 A.05 A.05 A.02 (15.10.2013) A.02 (15.10.2013) 26.06.2017 26.06.2017 5 - 12 5 12...
  • Page 49 POH / AFM Section 5 PERFORMANCE AQUILA AT01-100A 5.2.11 Maximum Range Condition: NOTE: Fuel quantity: usable fuel 28.9 US gal (109.6 l) Power setting: according to the table on page 5-11 A not properly maintained engine The calculation of the range includes:...
  • Page 50 POH / AFM Section 5 AQUILA AT01-100A PERFORMANCE 5.2.12 Descent: Fuel, Time and Distance Process: Conditions: In descent follow a speed of 121 KIAS. Manifold Pressure: as required. Approx. 15 in Hg Set performance for a descent rate of 750 ft / min.

  • Page 51: Landing Distance

    Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A 5.2.13 Landing Distance NOTES: Ldg Weight Airspeed [KIAS] - When landing on a dry, grass runway, increase the required landing distances by 15%. [lbs]([kg]) in 50 ft Touchdown - Increase ground roll appropriately for wet grass/ground, ice, snow and slush.
  • Page 52 POH / AFM Section 5 PERFORMANCE AQUILA AT01-100A 5.2.14 Climb Performance after Balked Landing Conditions: 1000 Performance: full throttle Rotation spees: 2385 rpm Flaps: LDG Speed: 55 KIAS Pressure Head (-22) (-4) (14) (32) (50) (68) (86) (1650) (1550) (1500)
  • Page 53 Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A 5.2.15 Flight Planning Example The following contains a flight-planning example to demonstrate the use of the tables, charts and data presented in this section of the POH. The flight planning is based upon...
  • Page 54 Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A We now have all the necessary data to determine the required take-off distances from chart 5.2.5: Take-off ground roll.........202 m Lift-off speed...........50 KIAS Take-off distance over a 50 ft obstacle...375 m Airspeed in 50 ft..........57 KIAS The required take-off distance is less than the available runway length (TODA) of 620m.
  • Page 55 Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A CRUISE Cruise altitude is chosen under consideration of flight distance, en-route winds and aircraft performance. In this flight-planning example, a typical cruise altitude and en- route wind condition has been chosen. The range diagram 5.2.11 on page 5-13 shows the relationship between the engine power setting and the maximum achievable range.
  • Page 56 Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A CALCULATION OF FUEL REQUIRED Fuel required for engine start-up and taxiing 0.53 US gal (2.0 ltr) (General Value, see remark “Fuel Quantity” on pg. 5-12 and 5-13) Fuel required for climb (page 5-18) +0.92 US gal (3.5 ltr)
  • Page 57 Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A The total amount of fuel required is calculated as follows: Engine start-up, taxiing and climb 1.45 US gal (5.5 ltr) Cruise 20.65 US gal (77.7 ltr) Descent 0.23 US gal (0.9 ltr) Total fuel required 22.33 US gal (84.1 ltr)
  • Page 58 Section 5 POH / AFM PERFORMANCE AQUILA AT01-100A Sample Calculation: Cruise altitude: 2000 ft ISA temperature: 52°F (11°C) Temperature in cruise altitude: 70°F (21°C), 18°F (10°C) above ISA in 2000 ft Power setting: RPM: 2000 RPM Manifold pressure for ISA (see chart): 24.7 in Hg...
  • Page 59 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) SECTION 7 DESCRIPTION OF THE AIRCRAFT AND ITS SYSTEMS Seite INTRODUCTION AIRFRAME FUESELAGE WING EMPENNAGE FLIGHT CONTROLS 7.6.1 Ailerons 7.6.2 Elevator and Trim System 7.6.3 Rudder 7.6.4 Flaps and Flap Position Indication INSTRUMENT PANEL 7.7.1...
  • Page 60 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.12.1 Engine 7-11 7.12.2 Propeller 7-11 7.12.3 Throttle and Propeller Control 7-12 7.12.4 Choke 7-13 7.12.5 Carburetor Heat 7-13 7.13 FUEL SYSTEM 7-14 7.13.1 Overview 7-14 7.13.2 Fuel Tank 7-15 7.13.3...
  • Page 61 The Aquila AT01-100 is a modern single engine two seater in a side-by-side configuration. Due to its high useful load, roomy cockpit, large baggage compartment, good cruise performance and light yet incredibly sturdy airframe, the Aquila is not only a great aircraft for longer tours but also an ideal training platform.
  • Page 62 The horizontal stabilizer assembly is bonded directly to the fuselage and cannot be removed. FLIGHT CONTROLS The flight controls of the Aquila AT01-100 are of conventional design using a control column and non-adjustable rudder pedals. The elevator and ailerons are controlled via push-pull-rods, the rudder via cables.
  • Page 63 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.6.3 Rudder The rudder is controlled by the rudder pedals by way of cables running in special guides. The control surface travel is limited by stops at the lower rudder attachment fitting.
  • Page 64 Section 7 POH /AFM AQUILA AT01-100A (N/VFR) SYSTEM DESCRIPTION NOTE: INSTRUMENT PANEL AT01-100A (N/VFR, sample) actual installation differ depending certified changes complementary equipment. 13 14 For minimum instrument requirements, refer to Section 2.12 of this manual. Description Description No. Description No.
  • Page 65 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.7.1 Overview Control Panel Controls and displays located on the control panel which is located below the midsection of the instrument panel, are placed so as to be easily viewed and operated from both seats.
  • Page 66 SEATS, SEATBELTS AND HARNESSES The seats of the AQUILA AT01-100 are fabricated from composite materials and are equipped with integrated head rests and removable, energy-absorbing seat cushions. An oil/gas spring strut with locking mechanism holds the seat in the adjusted position.
  • Page 67 AQUILA AT01-100A (N/VFR) 7.10 CANOPY The large canopy of the AQUILA AT01-100 offers an excellent all around view and allows unrestricted access to the cabin. Small sliding windows on both sides of the canopy serve as emergency view windows and can be used for additional cabin ventilation.
  • Page 68 It is important that no dirt or snow accumulate underneath the wheel pants. For this reason the Aquila AT01-100 can be operated with either full wheel pants (high-speed), with mud guards (soft-field), or without any wheel fairings. The aircraft can also be flown with a combination of wheel fairings, as long as the left and right main wheels have the same fairing.
  • Page 69 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.12 POWER PLANT 7.12.1 Engine The ROTAX 912S is a 4 cylinder, 4 stroke horizontally opposed engine with liquid- cooled cylinder heads and air-cooled cylinder barrels. It has brushless magnetos, 2 carburetors, a mechanical fuel pump, a reduction drive, an integrated alternator (ALT2), an alternator (ALT1) and an attachment for a hydraulic constant speed propeller.
  • Page 70 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.12.3 Throttle and Propeller Control The black throttle lever and the blue propeller control lever are located on the central control panel. The throttle controls the manifold pressure (MP): Throttle forward:...
  • Page 71 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.12.4 Choke The choke control knob is located on the control panel to the right of the carburetor heat and cabin heat controls. The choke may only be used for a short time when starting the engine in cold conditions.

  • Page 72: Fuel System

    Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.13 FUEL SYSTEM 7.13.1 Overview right wing tank left wing tank Fuel supply line Fuel return line Fuel Vent Carburetor Drain valve Fuel pressure warning light Coarse fuel filter element Dual fuel level indicator...
  • Page 73 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.13.2 Fuel Tank Each wing is equipped with an integral fuel tank. The fuel line of each tank is equipped with a removable coarse fuel filter. The fuel filler caps can be locked.
  • Page 74 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.13.4 Fuel Level Indication A floating sensor which is easy to maintain supplied information concerning fuel levels, which are then displayed on the fuel indicator. The floating gauge is located above the fuel supply.;...
  • Page 75 AQUILA AT01-100A (N/VFR) 7.14 ELECTRICAL SYSTEM The AT01-100 is equipped with a 12 V direct current (DC) electrical system that is powered by an engine-driven alternator and a battery. When the ALT1 / BAT switch is engaged, the electrical equipment can be operated and controlled by rocker switches located on the lower left section of the instrument panel.
  • Page 76 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) ALT1 - Excitation ALT1 Fuel Pressure Sensor Chronograph (opt.) Excitation ALT1 ALT1 ALT1 Pitot Heat FUEL Warning Lights opt. Battery Relay ALT2 ALT2 Voltage Monitoring ALT2 NVFR Module <12.5V >15.5V (optional)
  • Page 77 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.14.3 Electrical Equipment and Circuit Breakers All electrical equipment can be turned on or off by push-pull type circuit breakers or by rocker switches with built-in circuit breaker function. COM/NAV-equipment along with other avionic equipment is supplied with electrical power through the Avionics switch.
  • Page 78 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.14.6 Warning Light FUEL If the fuel pressure at the fuel distributor ahead of the carburetors drops below 2.2 PSI (0.15 bar), a pressure-controlled switch activates the red warning light FUEL located in the upper mid-section of the instrument panel.
  • Page 79 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) Procedure for starting up the engine with an external power source: • Plug in and switch on the external power • ALT1 / BAT switch ON • Start-up engine (in accordance with section 4.5.2 “Engine Start-up”) •...
  • Page 80 Section 7 POH /AFM AIRCRAFT DESCRIPTION AQUILA AT01-100A (N/VFR) 7.16 STALL WARNING SYSTEM The stall warning system causes a loud buzzing sound at least 5 kts before the stall is reached in all flap settings. As the aircraft approaches a stalled condition, a switch on the wing leading edge is activated due to a change in airflow as the angle-of-attack increases.
  • Page 81 Section 9.2 “Index of Supplements” lists all existing approved supplements for the AQUILA AT01. This table may be also used as a directory for this section, adapted to your aircraft. If modifications requiring an STC have been conducted on your aircraft at a Maintenance Organization other than AQUILA Aviation, it is the owner’s responsibility to ensure that the...
  • Page 82 Garmin GTX 335 / 345 AS-21* NOTE For the devices listed above and marked with an *, it is possible to perform a software update. These will be released on our website (www.aquila-aviation.de) by an appropriate SI (Service Information). Document Nr.: Issue:...
  • Page 83 3, 4 und 7 of this supplement. The information in this supplement adds to or replaces information in the basic POH. Revision A.04 of AFM Supplement AS-01 ref. FM-AT01-1010-240 is approved under the authority of DOA ref. EASA.21J.025. Document No.:...
  • Page 84 POH-Supplement POH /AFM AS-01 AQUILA AT01-100A (N/VFR) RECORD OF REVISIONS Issue Reason for Change Effected Pages Date of Issue A.01 Initial Issue 28.05.2013 A.02 Editorial Changes, 15.10.2013 A.03 Amendment to Normal Procedures 4-1 to 4-18 19.10.2015 A.04 Minor Changes chapter 2, 3, 7 26.06.2017...
