Genelec 1038-437B Instruction Manual

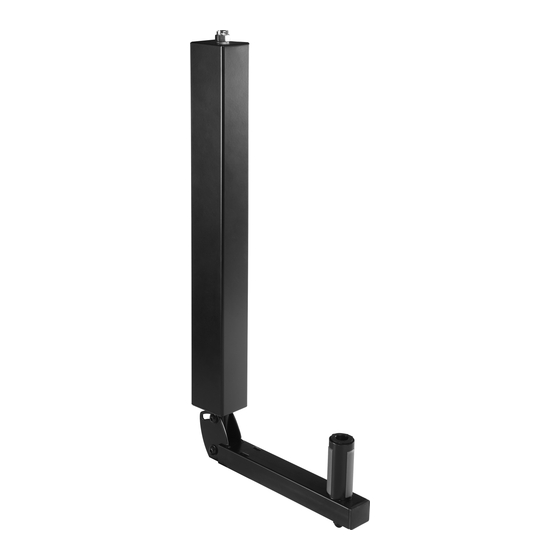

WALL MOUNT 1038-437B for GENELEC 1038CF/1238CF
instruction manual

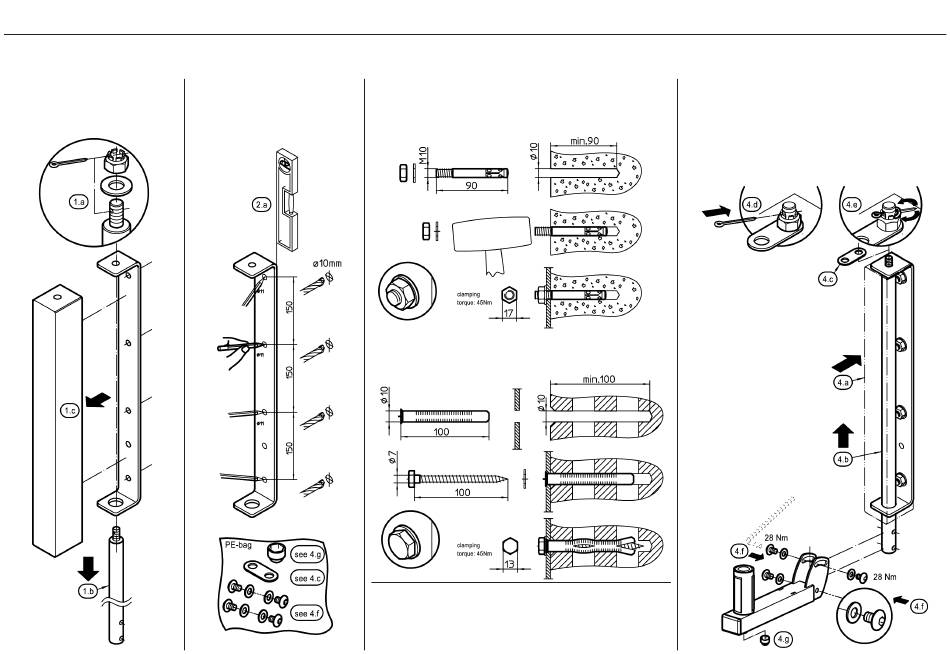

1. mounting preparation
1.a Loosen split pin, washer, nut, bolt
1.b Pull out the threaded rod
1.c Detach the frame
2. wall bracket fastening
2.a Adjust wall plate vertically
2.b Anchor holes drilling (4x)
2.b diameter 10 mm
3. wall mount options
3.a concrete wall - e.g.: steel-anchor-bolt M 6 x 65 mm
3.a
- drill and blow out hole, place anchor, wall bracket and washer,
3.a -
tighten hexnut
3.b perforated bricks - e.g.: unsiversal frame fixing set 8 x 80 mm
3.b
- drill, countersink and blow out hole, place anchor and bracket, fix
3.b - hexagon head wood screw
3.c injection-molded-anchor
without sieve bushing for concrete wall - with sieve bushing for perforated
bricks / optional with threaded bolt M6 or threaded bushing M6
NOTE: fixing without pressure, enables repeated mounting, capable for diverse
NOTE: wall materials (please notice instructions of anchor manufacturers).
adjustable in direction and angle
4. installation after wall bracket fastening
4.a Attach the frame
4.b Move in the threaded rod
4.c Place the joint bar above the thread and ...
4.d ...screw the castle nut to the threaded rod
4.e Secure the bolt assembly by mounting the split pin
4.f Bolt together (4x) vertical rod and speaker arm
4.f (tighten w/28Nm)
