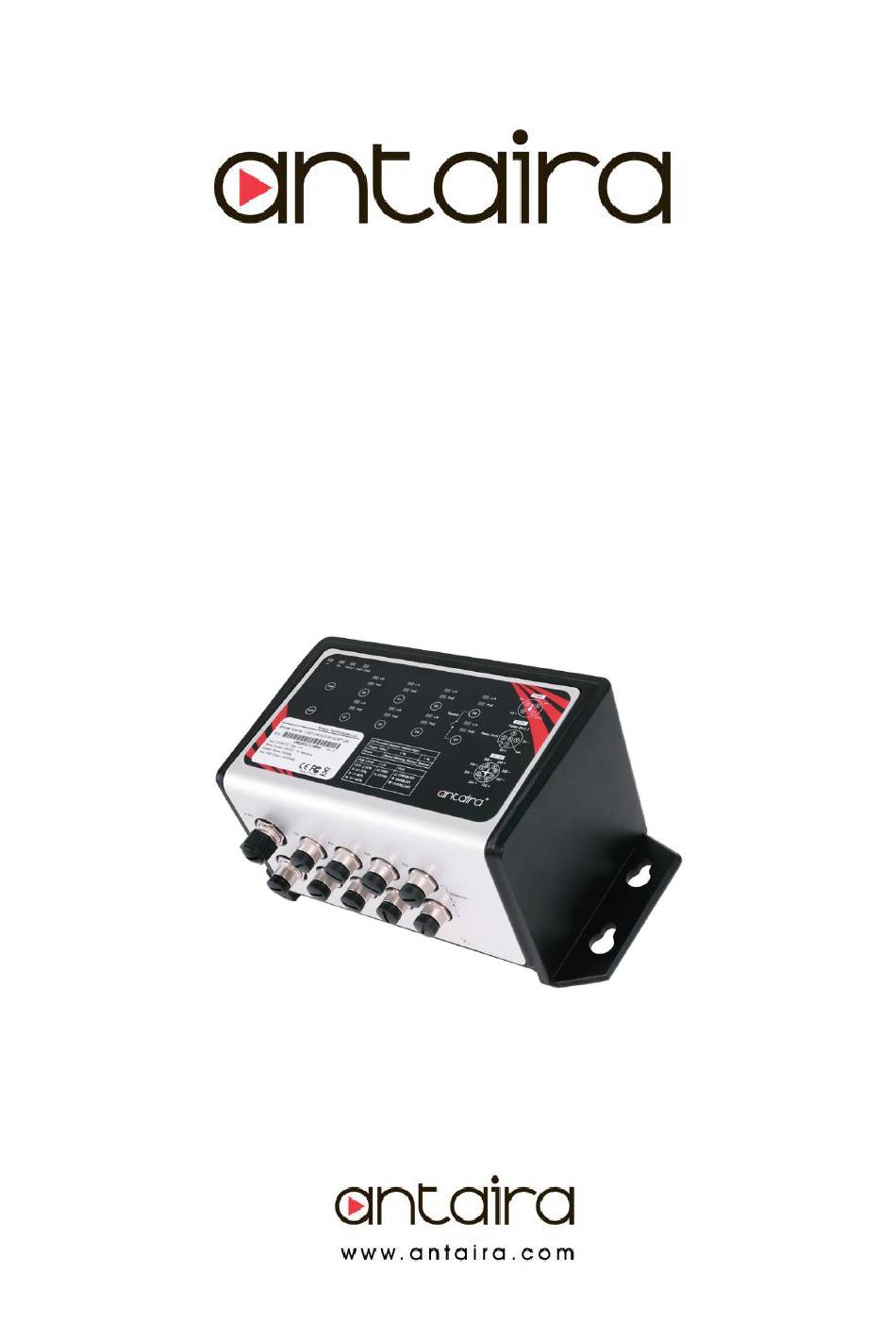

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 LNP-0800G-M12-67-24 8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch, w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded), 24~55VDC; -10° to 60°C Version 1.0 (September 2018) User Manual...
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Industrial Ethernet Switches User Manual This manual supports the following models: • LNP-0800G-M12-67-24 Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........1 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
Being able to operate under the temperature range from -10°C to 60°C, the LNP-0800G-M12-67-24 can be installed in almost any harsh environment. - Page 6 Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 with the device. (Shown in Figure 1) Figure 1: Caution Label...
-
Page 7: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0800G-M12-67-24: (W x H x D) is 253.6mm x 122mm x 116.1mm Figure 2.1... -
Page 8: Front Panel
Connector 2.3 Top View Figure 2.3, below, shows the bottom panel of the LNP-0800G-M12-67-24 that is equipped with 8 x M12 X-Coded female connectors, 1 x M12 T-Coded male connector for dual DC power inputs (24- 55VDC), and 1 x M12 A-Coded female connector for relay contact/digital input. -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 Figure 2.3 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that displays the power and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Grounding
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 Connected to the network with 1000Mbps Green Flashing Networking is active Port G1 to G8 Not connected to network Connected to network with 10/100Mbps Amber Flashing Networking is active Not connected to network... -
Page 11: Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 connections. Auto MDI/MDIX means that you can connect to another switch or workstation without changing straight through or crossover cabling. See pin assignment shown in Table 2.2. M12 8-Pin X-Coded Female Connector... -
Page 12: Relay Contact And Digital Input
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 M12 4-Pin T-Coded Male Connector Pinouts Function Table 2.3 Connection of Cables ◼ Minimum Wire Gauge: 18AWG Please follow the steps below to insert the power wire. 1. Insert the positive and negative power wires into the power connector on the industrial Ethernet switch with Power 1 (V+,V-), and Power 2 (V2+,V2-). - Page 13 Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 Relay Contact By using an M12 5-Pin A-Coded cable to connect the normally closed relay contact, it will detect the fault status and form an open circuit when any of the following abnormal conditions occurs: 1.
-
Page 14: Prioritization Of Poe Ports
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 Nominal Input Current 5mA (typical) Max. Input Current Table 2.9 As described in Relay Contact section, if the fault status (total output power over device's PoE power budget, or any one of PoE ports over 30Watts) happens, you have to use DI function to reset the Fault LED;... -
Page 15: Prioritization Of Packets
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 2.11 Prioritization of Packets This Ethernet switch provides QoS based IEEE 802.1p class of service (CoS) values that range from 0 to 7. These CoS values are mapped to 4 priority queues that go from high to low priority. -
Page 16: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 3. Mounting Installation 3.1 Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.1. Figure 3.1 1. - Page 17 Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 Figure 3.2 Caution: “Wall” means industrial control panel wall.
-
Page 18: Hardware Installation
LNP-0800G-M12-67-24 User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install LNP-0800G-M12-67-24. Caution: This device is intended for indoor use and at altitudes up to 2000 meters. In addition, the environmental condition should be maximum relative humidity of 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity... -
Page 19: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. -
Page 20: Network Application
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 5. Network Application This segment provides an example of an industrial M12 Ethernet switch application (Figure 5.1). Figure 5.1 Industrial M12 Ethernet Switch Application Example... -
Page 21: Trouble Shooting
Check for loose power connections, power losses, or surges at the power outlet. Please contact Antaira for technical support service if the problem still cannot be resolved. If the industrial switch’s LED indicators are normal and the connected cables are correct but the... -
Page 22: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-0800G-M12-67-24 User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNP-0800G-M12-67-24: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standards IEEE 802.3ab 1000BaseT IEEE 802.3af/at Power over Ethernet... - Page 23 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
