Antaira Technologies

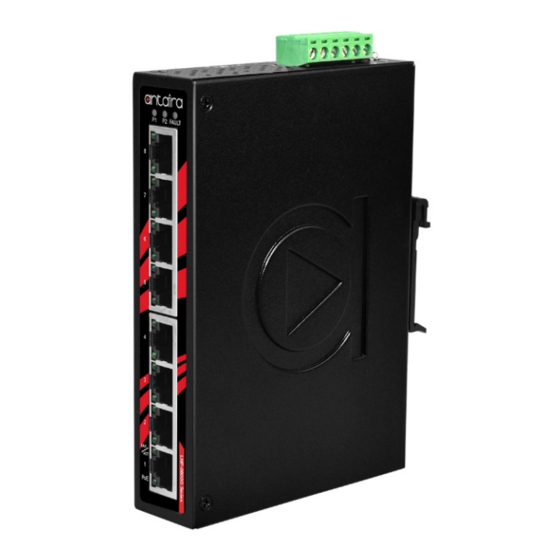

LNP-0800G Series
8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch,
w/8*10/100/1000Tx (30W/Port)

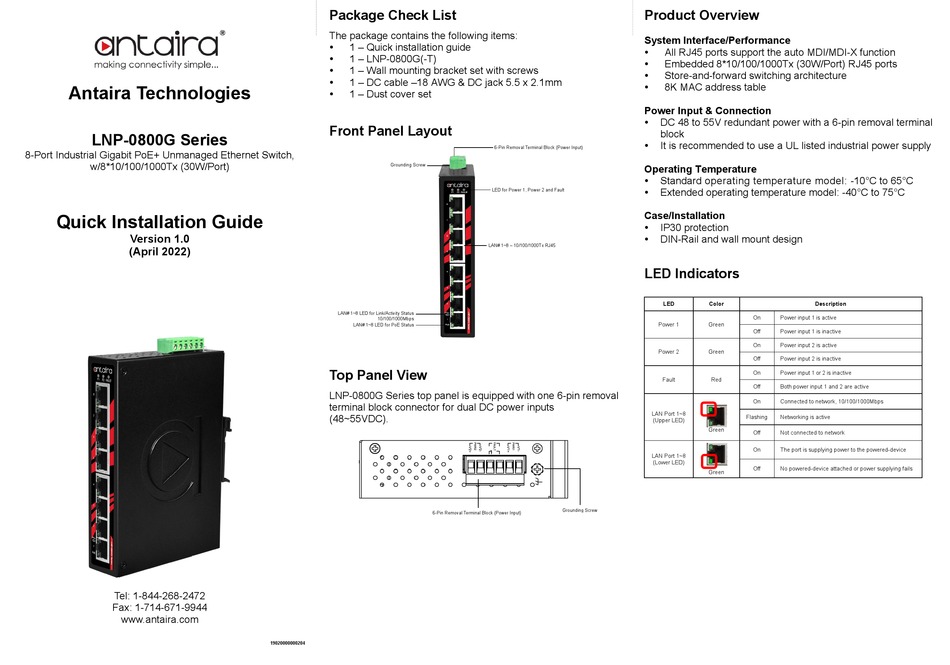

Quick Installation Guide
Version 1.0
(April 2022)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
1 – Quick installation guide
1 – LNP-0800G(-T)
1 – Wall mounting bracket set with screws
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
1 – Dust cover set
Front Panel Layout
Grounding Screw
LAN# 1~8 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~8 LED for PoE Status
Top Panel View
LNP-0800G Series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)
19020000000204
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function
Embedded 8*10/100/1000Tx (30W/Port) RJ45 ports
Store-and-forward switching architecture
8K MAC address table
Power Input & Connection
DC 48 to 55V redundant power with a 6-pin removal terminal
block
It is recommended to use a UL listed industrial power supply
6-Pin Removal Terminal Block (Power Input)
Operating Temperature
Standard operating temperature model: -10°C to 65°C
Extended operating temperature model: -40°C to 75°C
LED for Power 1, Power 2 and Fault
Case/Installation
IP30 protection
DIN-Rail and wall mount design
LAN# 1~8 – 10/100/1000Tx RJ45
LED Indicators
LED
Power 1
Power 2
Fault
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
Grounding Screw
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails
Green
