ANTAIRA LNP-0800G-M12-67-24 Series Quick Installation Manual

Antaira Technologies

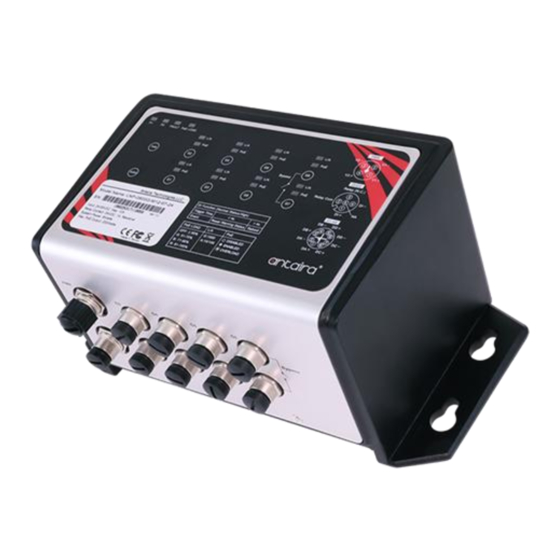

LNP-0800G-M12-67-24 Series
8-Port M12 Industrial IP67 Waterproof Gigabit PoE+ Ethernet
Switch, with 8*10/100/1000Tx with M12 Connector
Quick Installation Guide
Version 1.0
(June 2023)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
 1 – Quick installation guide
 1 – LNP-0800G-M12-67-24(-T)
 10 – M12 protective caps

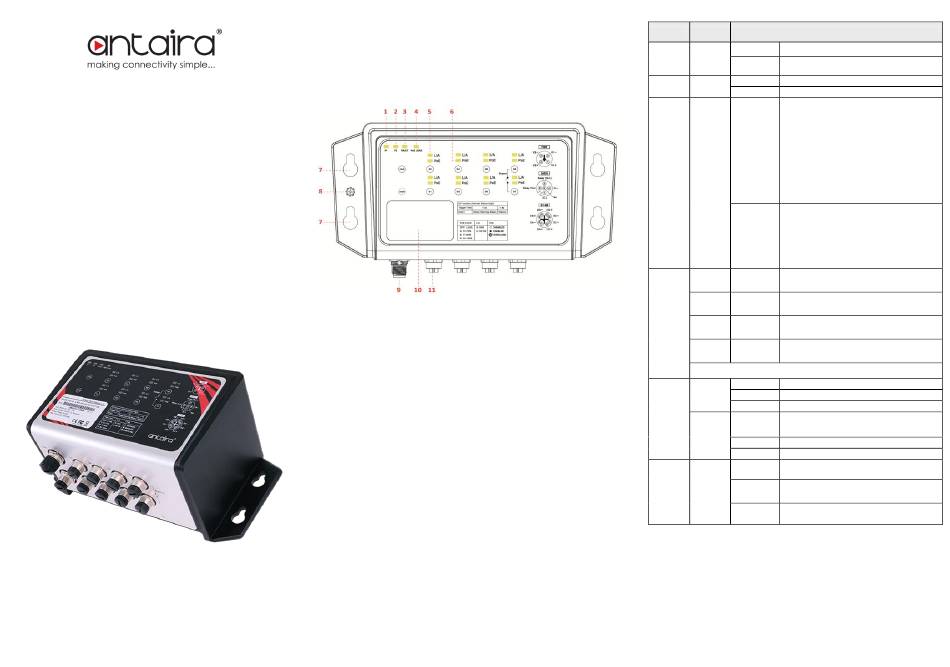

Front Panel Layout
1. Power 1 LED
2. Power 2 LED
3. Fault LED
4. PoE Load LED
5. 10/100/1000Mbps Link/Act LED
6. PoE Output LED
7. Screw Holes for Wall Mounting
8. Grounding Screw
9. Power Input Port: M12 4-Pin T-Coded Male Connector
10. Product Label
11. 10/100/1000Base-T(X) Ethernet Port: From port G1 to G8
with M12 8-Pin X-Coded Female Connector
Product Overview
System Interface/Performance

All Ethernet ports support the auto MDI/MDI-X function

M12 connector with IP67 rated protection

Store-and-forward switching architecture
Power Input & Connection

DC 24 to 55V redundant power

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -1 0°C to 60°C

Extended operating temperature model: -40°C to 70°C
Case/Installation

IP67 protection

Wall Mount design
19020000000210
LED Indicators
LED Color Description
On
Power input 1 is active
P1 Green
Off Power input 1 is inactive
On Power input 2 is active
P2 Green
Off Power input 2 is inactive
There were three possible conditions
would make LED light up:
1. If the current PoE output of all
connected PDs was overload
On (>200 Watts)
2. If Power 1 or Power 2 was inactive
3. If the current PoE output of one or
FAULT Red
more PDs were overload
(>30Watts)
Since the last reset of the FAULT LED,
the PoE output of all connected PDs
Off has not over 200W and no PD has
been overloaded in this period and the
power 1 & power 2 have not failed
The current PoE output of all
Off Off
connected PDs is ≤ 50%
The current PoE output of all
Green On
connected PDs is 51% ~ 70%
PoE
The current PoE output of all
Blue On
LOAD
connected PDs is 71% ~ 90%
The current PoE output of all
Red On
connected PDs is 91% ~ 100%
Note: The Max. PoE output of this switch is 200Watts.
On Connected to network with 1000 Mbps
Green Flashing Networking is active
L/A
Off Not connected to network
(G1 to
Connected to network with 10/100
G8) On
Mbps
Amber
Flashing Networking is active
Off Not connected to network
On
The current PoE output is enabled
PoE.
Overload occurred (>30Watts) at the
Flashing
Orange
(G1 to
connected PD
G8)
Off The current PoE output is disabled
Quick Installation
Ethernet Ports
M12 Ports (Auto MDI/MDI-X)
All M12 ports (8-Pin X-Coded Female Connector) are
auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T device
connections. Please follow the wiring pin assignment table below
for Ethernet port installation.
