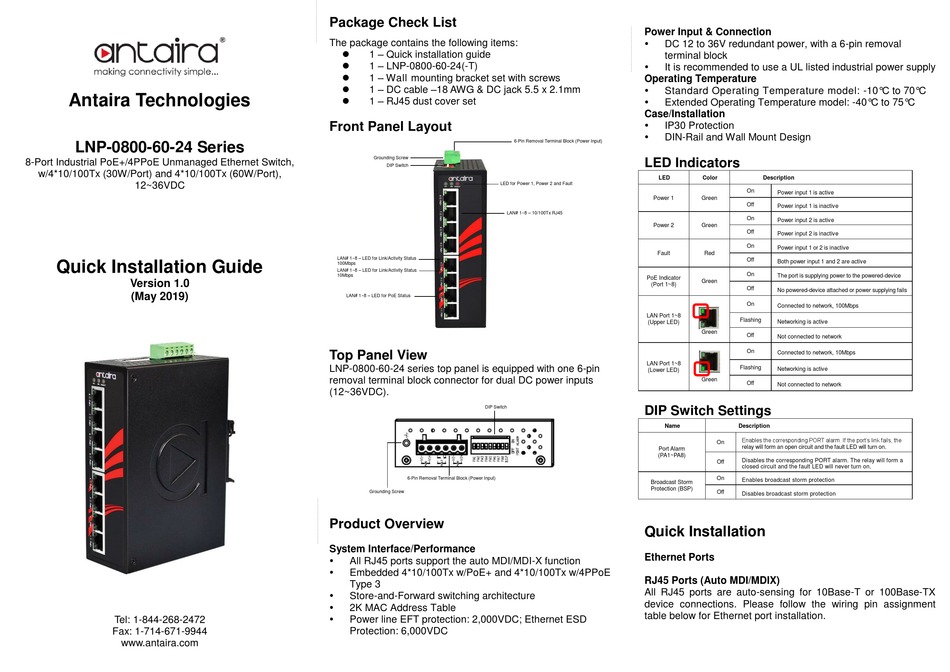

ANTAIRA LNP-0800-60-24 Series Quick Installation Manual

Antaira Technologies
LNP-0800-60-24 Series
8-Port Industrial PoE+/4PPoE Unmanaged Ethernet Switch,
w/4*10/100Tx (30W/Port) and 4*10/100Tx (60W/Port),
12~36VDC
Quick Installation Guide
Version 1.0
(May 2019)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNP-0800-60-24(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set

Front Panel Layout

Grounding Screw
DIP Switch
LED for Power 1, Power 2 and Fault
LAN# 1~8 – 10/100Tx RJ45
LAN# 1~8 – LED for Link/Activity Status
100Mbps
LAN# 1~8 – LED for Link/Activity Status
10Mbps
LAN# 1~8 – LED for PoE Status

Top Panel View

LNP-0800-60-24 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~36VDC).
DIP Switch
6-Pin Removal Terminal Block (Power Input)
Grounding Screw

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Embedded 4*10/100Tx w/PoE+ and 4*10/100Tx w/4PPoE
Type 3

Store-and-Forward switching architecture

2K MAC Address Table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
Power Input & Connection

DC 12 to 36V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply

Operating Temperature


Standard Operating Temperature model: -10°C to 70°C

Extended Operating Temperature model: -40°C to 75°C

Case/Installation


IP30 Protection

DIN-Rail and Wall Mount Design
6-Pin Removal Terminal Block (Power Input)

LED Indicators

LED
Power 1
Power 2
Fault
PoE Indicator
(Port 1~8)
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)

DIP Switch Settings

Name
Port Alarm
(PA1~PA8)
Broadcast Storm
Protection (BSP)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T or 100Base-TX
device connections. Please follow the wiring pin assignment
table below for Ethernet port installation.
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
The port is supplying power to the powered-device
Green
Off
No powered-device attached or power supplying fails
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
Description
Enables the corresponding PORT alarm. If the port's link fails, the
On
relay will form an open circuit and the fault LED will turn on.
Disables the corresponding PORT alarm. The relay will form a
Off
closed circuit and the fault LED will never turn on.
On
Enables broadcast storm protection
Off
Disables broadcast storm protection
