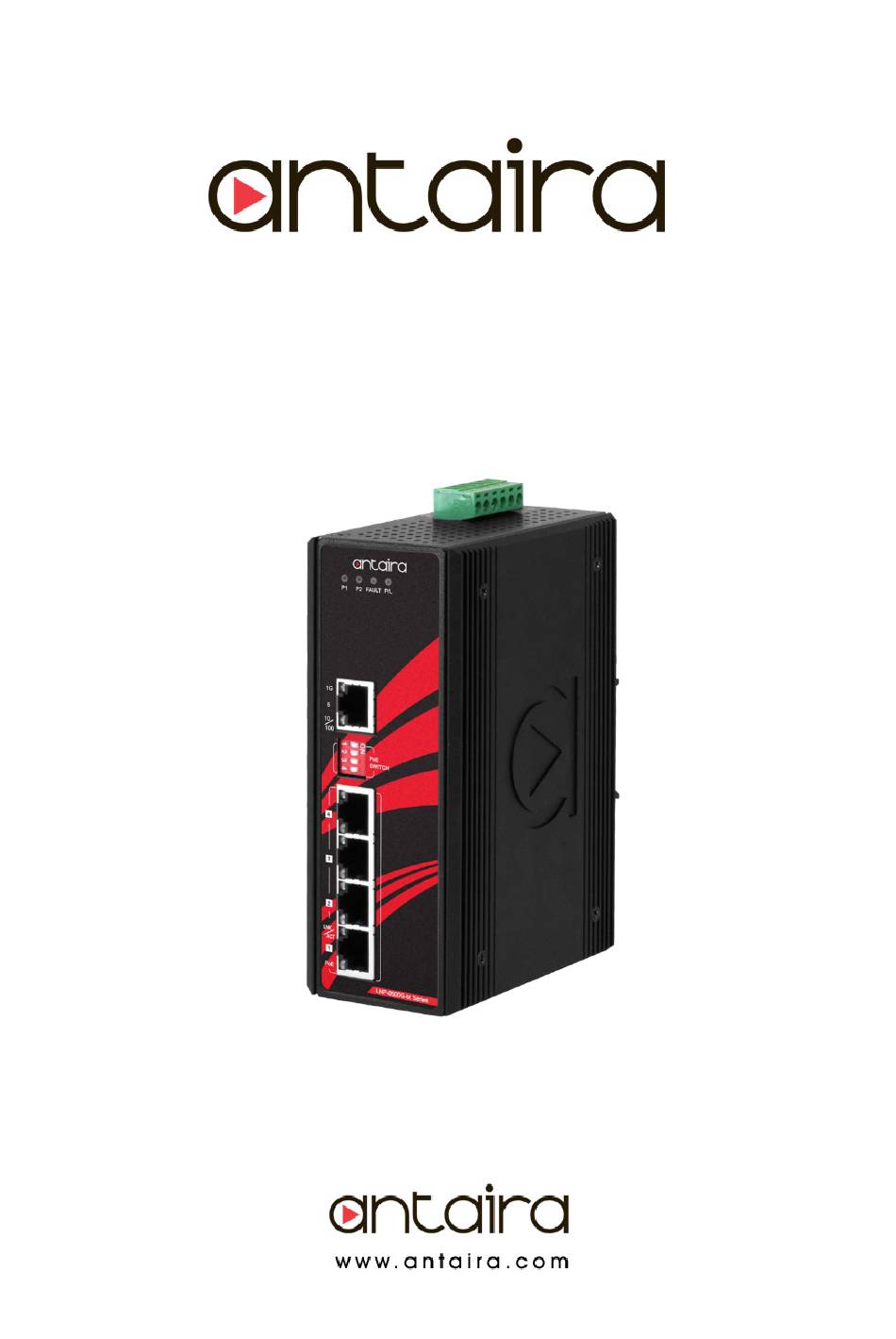

LNP-0500G-bt Series User Manual V1.1
LNP-0500G-bt Series
5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet
Switch, with 4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx
User Manual
Version 1.1
(June 2020)
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LNP-0500G-BT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ANTAIRA LNP-0500G-BT Series

  • Page 1 Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 LNP-0500G-bt Series 5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, with 4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx User Manual Version 1.1 (June 2020)
  • Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
  • Page 3 Industrial Grade Unmanaged Ethernet Switches User Manual Version 1.1 (June 2020) This manual supports the following models: • LNP-0500G-bt • LNP-0500G-bt-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
  • Page 4: Table Of Contents

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 Table of Contents 1. Overview ............... 1 1.1 Key Features..........1 1.2 Package Contents.......... 2 1.3 Safety Precaution........... 2 2. Hardware Description .......... 3 2.1 Physical Dimensions ........3 2.2 Front Panel ............
  • Page 5: Overview

    PoE power source within any harsh or outdoor environment. The LNP-0500G-bt series is IP30 rated and DIN-rail mountable with two wide operating temperature models to support either a standard temperature range (STD: -10°C to 65°C), or an extended temperature range (EOT: -40°C to 75°C);...
  • Page 6: Package Contents

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 1.2 Package Contents  1 - LNP-0500G-bt(-T)  1 - Quick Installation Guide  2 - Wall mounting brackets and screws  1 - DC cable –18 AWG & DC jack 5.5x2.1mm 1.3 Safety Precaution...
  • Page 7: Hardware Description

    LNP-0500G-bt Series User Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0500G-bt series: (W x D x H) is 54mm x 99mm x 142mm Figure 2.1 LNP-0500G-bt Series Physical Dimensions...
  • Page 8: Front Panel

    Figure 2.2 - Front Panel of the LNP-0500G-bt Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-0500G-bt series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48-55 VDC).
  • Page 9: Led Indicators

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
  • Page 10: Dip Switch

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 IEEE 802.3af/at connection (Single Signature PD Class 0~4) Amber No powered-device attached or power supplying fails Connected to network, 1000Mbps LAN Port 5 Networking is active Blinking (Upper LED)
  • Page 11: Poe Port Led Indicators

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 [Notice] When the relay is triggered because of Event 2~5, the relay contact alarm, will update the status every 30 seconds. If there’s no event happening for 30 seconds, the relay contact alarm will be turn off.
  • Page 12 Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 After the PoE port is recovered from the PoE Port Over Current event, the PoE LED of the port will act cyclically as below until the event indicator is clear manually: **AF/AT: Amber;...
  • Page 13: Ethernet Ports

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 [Notice] 1. The system will automatically retry to recover from the event failure every 20 seconds. 2. To clear the warning PoE Indicator of the recovered port, please re-plug the port cable or re- open the PoE function of the port via DIP Switch(>=2sec).
  • Page 14: Cabling

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 The following figures show the cabling schematics for straight-through and crossover cables. Figure 2.4 - Straight-Through Cables Schematic Figure 2.5 - Crossover Cables Schematic 2.9 Cabling  Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable.
  • Page 15: Wiring The Fault Alarm Contact

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 • **Note: Only use copper conductors, 125°C, tighten to 5 lbs. • The wire gauge for the terminal block should range between 18~20 AWG. 2.11 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8.
  • Page 16: Mounting Installation

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch.
  • Page 17 Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
  • Page 18: Wall Mounting

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
  • Page 19: Hardware Installation

    LNP-0500G-bt Series User Manual V1.1 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LNP-0500G-bt(-T). Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. 2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
  • Page 20: Trouble Shooting

    If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. •...
  • Page 21: Technical Specifications

    Antaira Technologies - Industrial Ethernet Switches LNP-0500G-bt Series User Manual V1.1 6. Technical Specifications Table 6.1 has the technical specifications for Antaira Technologies LNP-0500G-bt series: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx and 100Base-Fx Fast Ethernet Standards IEEE 802.3ab 1000Base-Tx Gigabit Ethernet IEEE 802.3af/at/bt...
  • Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
