Summary of Contents for ANTAIRA LNP-0802C-SFP Series

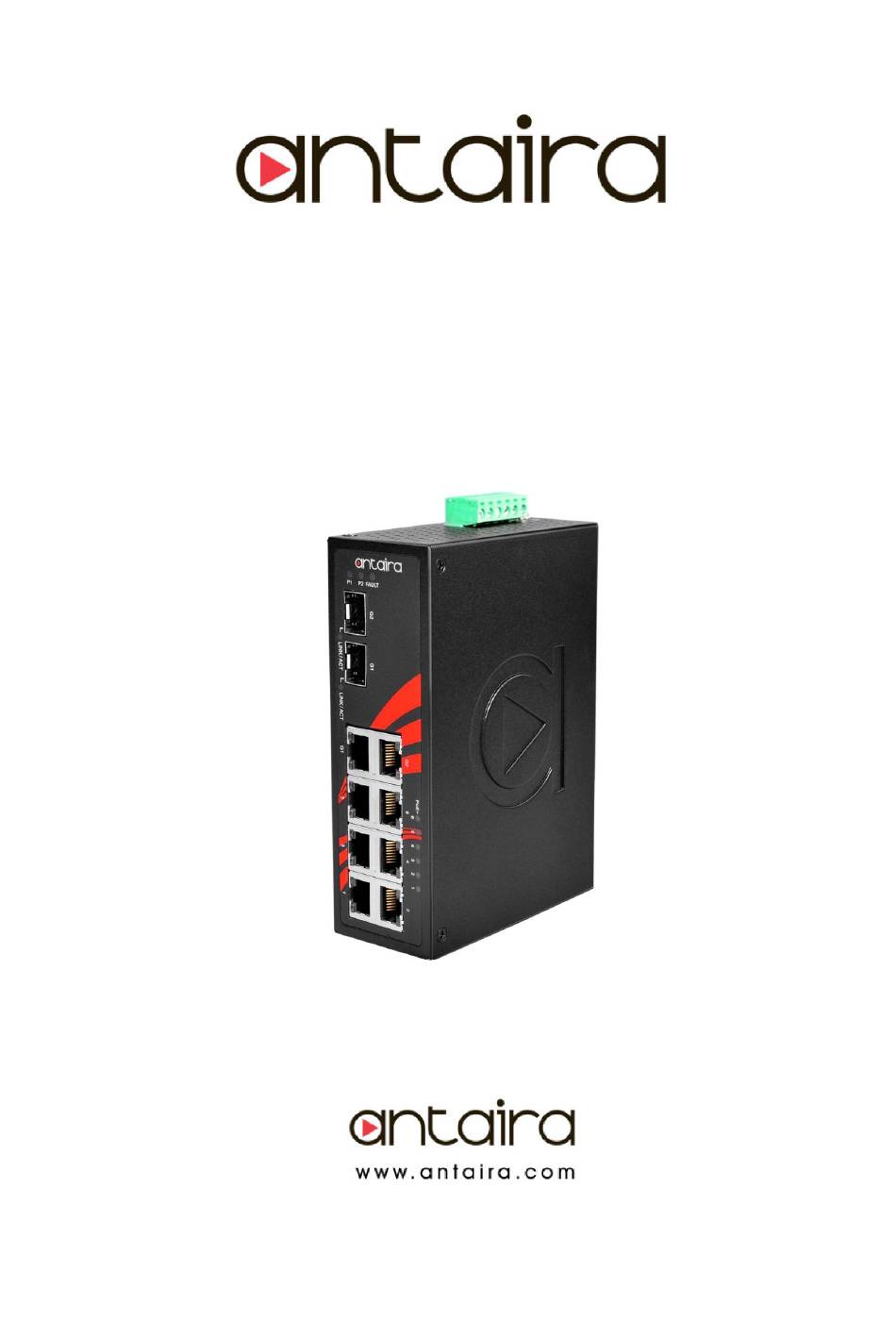

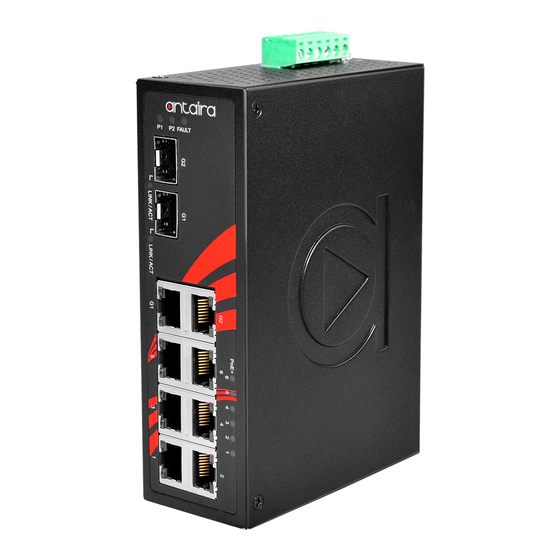

- Page 1 Antaira Industrial Ethernet Switches LNP-0802C-SFP series User Manual V1.2 LNP-0802C-SFP Series 8-Port Industrial PoE+ Unmanaged Ethernet Switches, with 6*10/100Tx (30W/Port), 2* Gigabit Combo Ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP Slots) User Manual Version 1.2...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit Unmanaged Ethernet Switches User Manual Version 1.2 (April 2018) This manual supports the following models: LNP-0802C-SFP LNP-0802C-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
The LNP-0802C-SFP series includes two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments. -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 1.2 Package Contents 1 - LNP-0802C-SFP (T): 8-port industrial PoE+ unmanaged Ethernet switch, with 6*10/100Tx (30W/port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots) ... -
Page 7: Hardware Description
LNP-0802C-SFP Series User Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0802C-SFP series: 8-port industrial PoE+ unmanaged switches, with 6*10/100Tx (30W/port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots) (W x D x H) is 46mm x 99mm x 142mm Figure 2.1... -
Page 8: Front Panel
Figure 2.2 - The Front Panel of the LNP-0802C-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-0802C-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC). -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 2.5 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~6) are auto-sensing for 10Base-T or 100Base-Tx device connections. The Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing for 10Base-T, 100Base-Tx, and 1000Base-T device connections. - Page 11 Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 - Straight-Through Cable Schematic Figure 2.5 - Crossover Cable Schematic The following figures show the 10 and 100 Ethernet RJ-45 pin outs.
-
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 2.6 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. - Page 13 Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. To connect the transceiver and LC cable, please follow the steps below: First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9.
- Page 14 Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.12.
-
Page 15: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 2.7 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.14. -
Page 16: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. - Page 18 Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
-
Page 19: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 20: Hardware Installation
LNP-0802C-SFP Series User Manual V1.2 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LNP-0802C-SFP series: 8-port industrial PoE+ unmanaged Ethernet switches, with 6*10/100Tx (30W/Port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots). -
Page 21: Network Application
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Industrial PoE Ethernet Switch Application Reference... -
Page 22: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira Technologies for technical support service at (844) 268-2472, if the problem still cannot be resolved. ... -
Page 23: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNP-0802C-SFP series: 8-port industrial PoE+ unmanaged Ethernet switches, with 6*10/100Tx (30W/Port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots). - Page 24 Antaira Technologies - Industrial Ethernet Switches LNP-0802C-SFP Series User Manual V1.2 Over Current Protection Single-blown fuse Redundant power DC 48~55V with connective Power Input 1*6-pin removable terminal block Fault Output 1 Relay output 160 Watts @ 48V, 190 Watts @ 51-55V...
