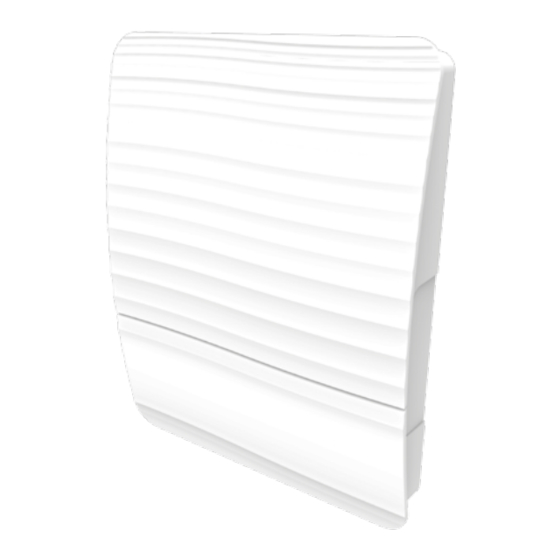

- Page 1 AXIAL FAN Vents 100 Style User’s manual www.ventilation-system.com...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................6 Brief description ..............................................6 Operation guidelines ............................................6 Designation key ..............................................7 Mounting ................................................. 7 Fan setup ................................................8 Maintanance ................................................9 Storage and transportation regulations ....................................9 Manufacturer’s warranty ..........................................10... - Page 3 The manual contains information about purpose, technical details, operating principle, design, and installation of the Vents 100 Style unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
- Page 4 FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance.
- Page 5 • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or extract vents in order to ensure the efficient air flow. • Do not sit on the unit and do not put objects on it.
-
Page 6: Delivery Set
DELIVERY SET - 1 pc. Screws with dowels - 4 pcs. Plastic screwdriver - 1 pc. (only for the models with a timer) User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The products described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan is designed for connection to 100 mm air ducts. -
Page 7: Designation Key
DESIGNATION KEY Vents 100 Style (220-240 V/60 Hz) Voltage: _ : 220-240 V/50 Hz 220-240 V/60 Hz : voltage 220-240 V, frequency 60 Hz Extra options: _: basic modification (turning on and off ) T: turn-on delay timer, turn-off delay timer and interval timer... -
Page 8: Fan Setup
FAN SETUP : to adjust the humidity set point turn the control knob H clockwise to increase and counter-clockwise to decrease the humidity sensor set point, adjustable from 60% up to 90%. : turning of the interval timer on and its adjustment is performed with the potentiometer T . -
Page 9: Maintanance
MAINTANANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Cut off power supply to the fan and make that the power is disconnected (Fig. 17). • Take off the front panel and clean the fan with a soft dry cloth or a brush (Fig. 18). •... -
Page 10: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. - Page 11 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user's manual. •...
- Page 12 ø99...
- Page 14 Vents 100 Style Vents 100 Style T Fan does not run Activation of the interval S switch is ON timer (6/12/24 hours) Activation of the turn-on Fan runs delay timer for 60 seconds Activation of the turn-off delay timer (2…30 minutes)
- Page 15 Vents 100 Style Duo T Off 6/12/24 hours Interval timer Fan runs with Fan does not run low speed Activation of the interval S switch is ON S switch is ON timer (6/12/24 hours) Activation of the turn-on delay Activation of the turn-on...
- Page 16 Vents 100 Style TH Fan does not run S switch is ON Activation of the turn-on delay timer for 60 seconds Switch S is OFF during Humidity is above countdown of the turn-on set point delay timer Fan runs S switch is OFF...
- Page 17 Vents 100 Style Duo TH Fan does not run S switch is ON Activation of the turn-on delay timer for 60 seconds Switch S is OFF during Humidity is above countdown of the turn-on set point delay timer Fan runs with...
- Page 19 Approval mark Sold (name and stamp of the seller) Manufacturing date Sales date...
- Page 20 Acceptance certificate Vents 100 Style Duo 220-240 V 50 Hz The fan is recognized as serviceable. 220-240 V We hereby declare that the product complies 60 Hz with the essential protection requirements of Electromagnetic Council Directive 2004/108/EC, 89/336/EEC and Low Voltage Directive 2006/95/EC,...
