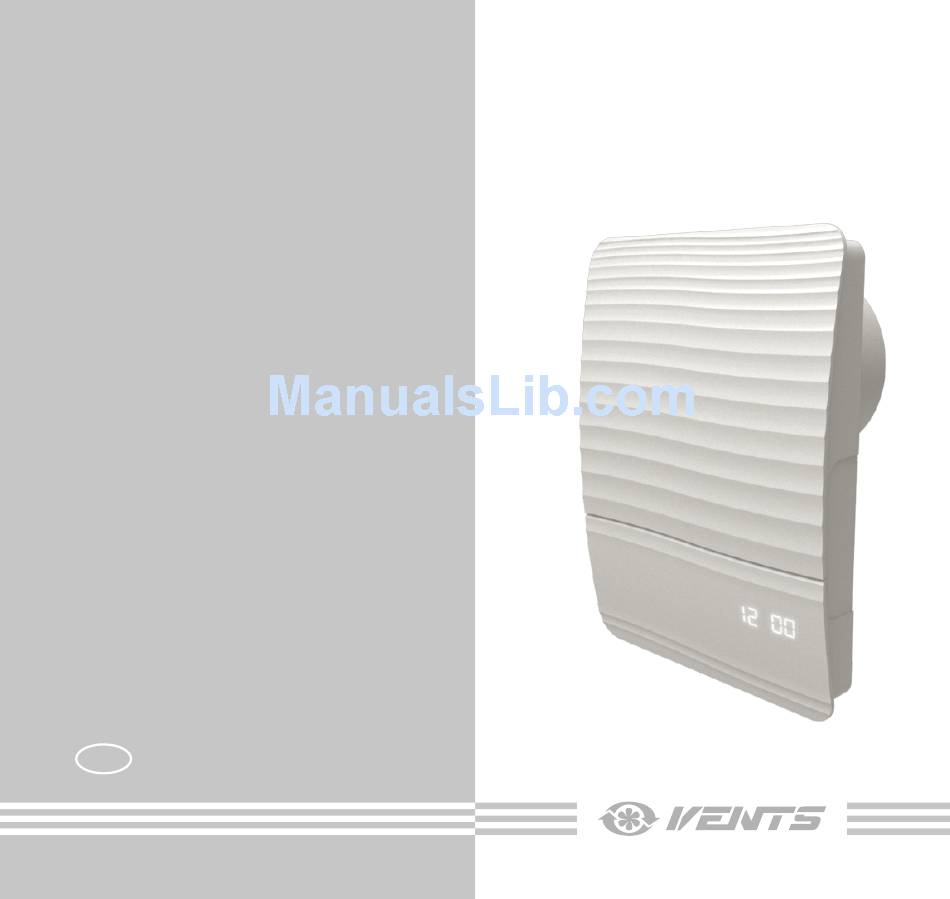

- Page 1 AXIAL FAN 100 Style Eco User’s manual www.ventilation-system.com...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................6 Brief description ..............................................6 Operation guidelines ............................................6 Designation key ..............................................7 Installation and set-up............................................. 7 Connection to power mains ........................................8 Fan control ................................................9 Maintenance................................................22 Storage and transportation regulations ....................................22 Manufacturer’s warranty ..........................................23... - Page 3 The manual contains information about the purpose, technical details, operating principle, design, and installation of the 100 Style Eco unit and all of its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
- Page 4 FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance.
- Page 5 • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or extract vents in order to ensure the efficient air flow. • Do not sit on the unit and do not put objects on it.
-
Page 6: Delivery Set
DELIVERY SET — 1 pc. Screws and dowels — 4 pcs. Plastic screwdriver — 1 pc. User’s manual — 1 pc. Packing box — 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan fits 100 mm air ducts. -
Page 7: Designation Key
DESIGNATION KEY Style Eco Backlight of the unit’s interior (only for the fans with the LED option) Fan series Outlet duct diameter [mm] INSTALLATION AND SET-UP The fan is designed for wall mounting with direct air exhaust to the ventilation shaft or into the round air duct of matching diameter. -
Page 8: Connection To Power Mains
CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. WIRING DIAGRAM The fan is rated for connection to single-phase AC 100-240 V/50 (60) Hz power mains. -
Page 9: Fan Control
FAN CONTROL The fan is controlled by the application on the mobile device. The application is available for download at App Store, Play Market or via the QR code. App Store download link Play Market download link Your mobile device must have an operating system matching the following parameters: •... - Page 10 SETTING CONNECTION WITH THE APP Select a desired connection type. 1. Enter the app menu. Connection-Connection list. 2. Select Default 3. If the fan is operating in Wi-Fi access point mode, select the connection. Connection is initiated automatically. 4. If the fan is connected to a home Wi-Fi network, search for devices on the network. 5.
- Page 11 WI-FI PARAMETER SETUP Menu – Connection – Wi-Fi setup. Then, press Receive. The screen will Go to the application menu on your mobile device Access Point Client. display the current Wi-Fi parameter settings. Select one of the Wi-Fi operation modes: Access Point Client —...
- Page 12 SPECIAL «SETUP MODE/RESET» The LED has the following states: Switched off. • Normal operation mode of the device. Glowing blue. • Warning of switching the device to the Setup Mode. Blinking blue. • The device is in Setup Mode. Glowing red. •...
- Page 13 «RES.» The LED backlight will stop blinking and the message will appear on the 7-segment LED indicator. The LED backlight Setup Mode. will turn red, informing the user about the exit from the Wi-Fi name: Setup Mode. Wi-Fi password: 11111111. To return to factory settings, keep the button pressed for another 4 seconds, until the backlight and message on the 7-segment indicator start blinking, and until the acoustic signal is sounded.
- Page 14 HOME PAGE Indicators: — turn-on or turn-off delay timer operation indicator — humidity exceeding indicator — light sensor indicator — temperature rise indicator — warning indicator (battery needs replacing) — external switch operation indicator — motion sensor indicator — Interval ventilation mode indicator Turning the fan on/off —...
- Page 15 RESTORE FACTORY DEFAULT SETTINGS Settings – Setting To restore the factory settings, go to the menu reset. Then press the Reset to factory settings button. After restore, connection with device may be lost due to Wi-Fi settings reset. If necessary, reset your Wi-Fi connection. Setup Mode/Reset You can also reset the settings using the button.
- Page 16 CLOCK WITH CURRENT TIME Settings - Current To set the clock for the current time, go to the time menu. Current time is used to indicate the time and operation of some scheduled modes (see Modes). When the fan is disconnected from the mains, the clock continues to operate from an internal power source (battery).
- Page 17 SENSOR OPERATION SETUP When setting up the sensors, take into account that it is possible to select the operation by a temperature sensor or any other sensors (humidity or an external switch). Adjustment of operation based on temperature sensor Settings – Sensors, set and activate the temperature sensor.
- Page 18 Adjustment of operation based on humidity sensor This mode is available only when operation by a temperature sensor is turned off. Three modes are available: Disable — the humidity sensor is deactivated. Auto — intelligent humidity control. This mode provides for changing the humidity threshold and fan speed selection in automatic mode with an option to independently choose the optimal threshold for the room where the fan is located.
- Page 19 Adjustment of operation based on external switch Settings – Sensors Go to the menu and activate the external switch. If this sensor selection is inactive, then deactivate the temperature sensor first. If a signal from the external switch appears for Silent longer than the set turn-on delay time, the fan will go to the preset speed.
- Page 20 Activated/deactivated from the main screen of the application. Performs a forced switching to a high speed (Max) from any current operating mode. The speed can be adjusted with the Vents Fan application in the range from 30 % to 100 %.
- Page 21 TIMER SETUP Settings – Timers. To configure the timers, go to the menu Turn-off delay timer is designed to prolong the fan operation in Boost Mode the mode caused by sensor triggering or activation, after sensor threshold values are not exceeded any more. The operating time of the timer may be terminated: •...
-
Page 22: Maintenance
MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 12). • Remove the front cover by pressing on the lower latch (Fig. 13). •... -
Page 23: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. - Page 24 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 27 Use a flat screwdriver to dis- Do not pull on the connect the socket. electric cable.
- Page 28 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 32 Certificate of acceptance 100 Style The fan is recognized as serviceable. V179EN-01...
