- Page 1 Quiet 100 DC Quiet-Style 100 DC AXIAL FAN USER’S MANUAL www.ventilation-system.com...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................7 Brief description ..............................................7 Operation guidelines ............................................7 Designation key ..............................................8 Installation and set-up............................................. 10 Fan setup ................................................. 13 Fan options ................................................14 Maintenance................................................16 Storage and transportation regulations ....................................17 Manufacturer’s warranty ..........................................20 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. - Page 3 This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
- Page 4 Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
- Page 5 Disconnect the power supply prior to any operations with the unit. All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit.
- Page 6 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 7: Delivery Set

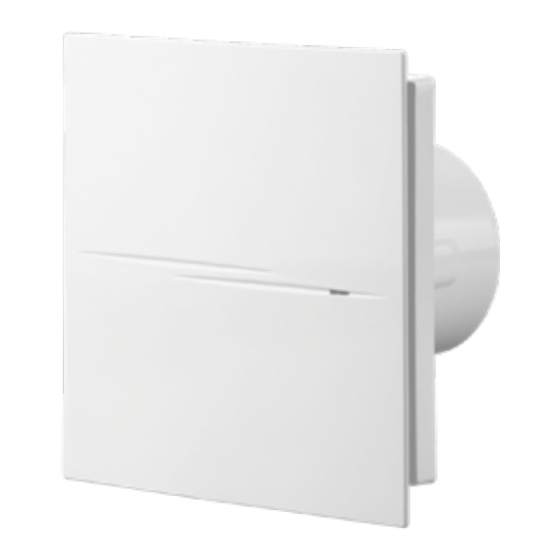

DELIVERY SET 1 pc. Screws and dowels 4 pcs. Plastic screwdriver (only for the models with a timer) 1 pc. User’s manual 1 pc. Packing box 1 pc. BRIEF DESCRIPTION Quiet(-Style) 100 DC is an axial fan for extract ventilation of small and medium-sized domestic spaces heated during the cold season. -
Page 8: Designation Key
DESIGNATION KEY Quiet 100 DC Additional options: V : cord-operated switch Т : deactivation delay timer ТН : humidity sensor and deactivation delay timer ТР : motion sensor and deactivation delay timer DC : direct current electric motor Outlet duct diameter [mm] Fan series Quiet;... - Page 9 Dimensions [mm] Ø D Quiet 100 DC Quiet-Style 100 DC...
-
Page 10: Installation And Set-Up
INSTALLATION AND SET-UP The fan can be mounted to the ceiling or to a wall with air extraction into a ventilation shaft or a matching diameter round air duct. Mounting configurations with direct air discharge upwards are not allowed. The fan installation steps are as follows: —... - Page 11 Quiet 100 DC fan installation...
- Page 12 Quiet-Style 100 DC fan installation...
-
Page 13: Fan Setup
FAN SETUP THE TIMER BOARD IS UNDER MAINS VOLTAGE. MAKE SURE THE FAN IS COMPLETELY DISCONNECTED FROM THE POWER MAINS BEFORE ADJUSTING The fan is set up by changing the DIP switch position. To access the DIP switch take off the face panel and remove the rubber plug. The fan is supplied with a special plastic screwdriver to toggle the DIP switch without damaging its components. -
Page 14: Fan Options
FAN OPTIONS (S)Т — fans are equipped with a deactivation delay timer. The timer activates upon control voltage application to input terminal LT by an external switch (e.g. indoor light switch). Upon control voltage removal the fan continues to operate for the period of time set by means of a DIP switch. - Page 15 (V)ТН, (V)ТР Operation mode Upon sensor actuation or Upon sensor actuation or The fan continuously The fan is disabled. Upon switch operation the fan switch operation the fan operates at low speed. Upon sensor actuation the fan switches to low speed. switches to high speed.
-
Page 16: Maintenance
MAINTENANCE The fan must undergo technical maintenance at least every 6 months. Maintenance steps: • power off the fan and make sure that it is completely de-energised; • remove the face panel and clean the fan with a soft dry cloth or a brush; •... -
Page 17: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to +40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. - Page 18 Quiet 100 DC technical maintenance...
- Page 19 Quiet-Style 100 DC technical maintenance...
-
Page 20: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 21 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user's manual. •...
- Page 23 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 24 Certificate of acceptance Quiet _____________________________________ The fan is recognized as serviceable. V162EN-04...
