Front panel

7.1

The CH1 and CH2 BNC connectors are the main inputs of the acquisition system.

The outside of the BNC connectors is connected to the ground of the Handy-

scope HS5. Connecting the outside of the BNC connector to a potential other

than ground will result in a short circuit that may damage the device under test,

the Handyscope HS5 and the computer.

7.2

The AWG BNC connector is the output of the internal Arbitrary Waveform Gener-

ator. The outside of this BNC connector is connected to the ground of the Handy-

scope HS5.

7.3

A power indicator is situated at the top cover of the instrument. It is lit when the

Handyscope HS5 is powered.

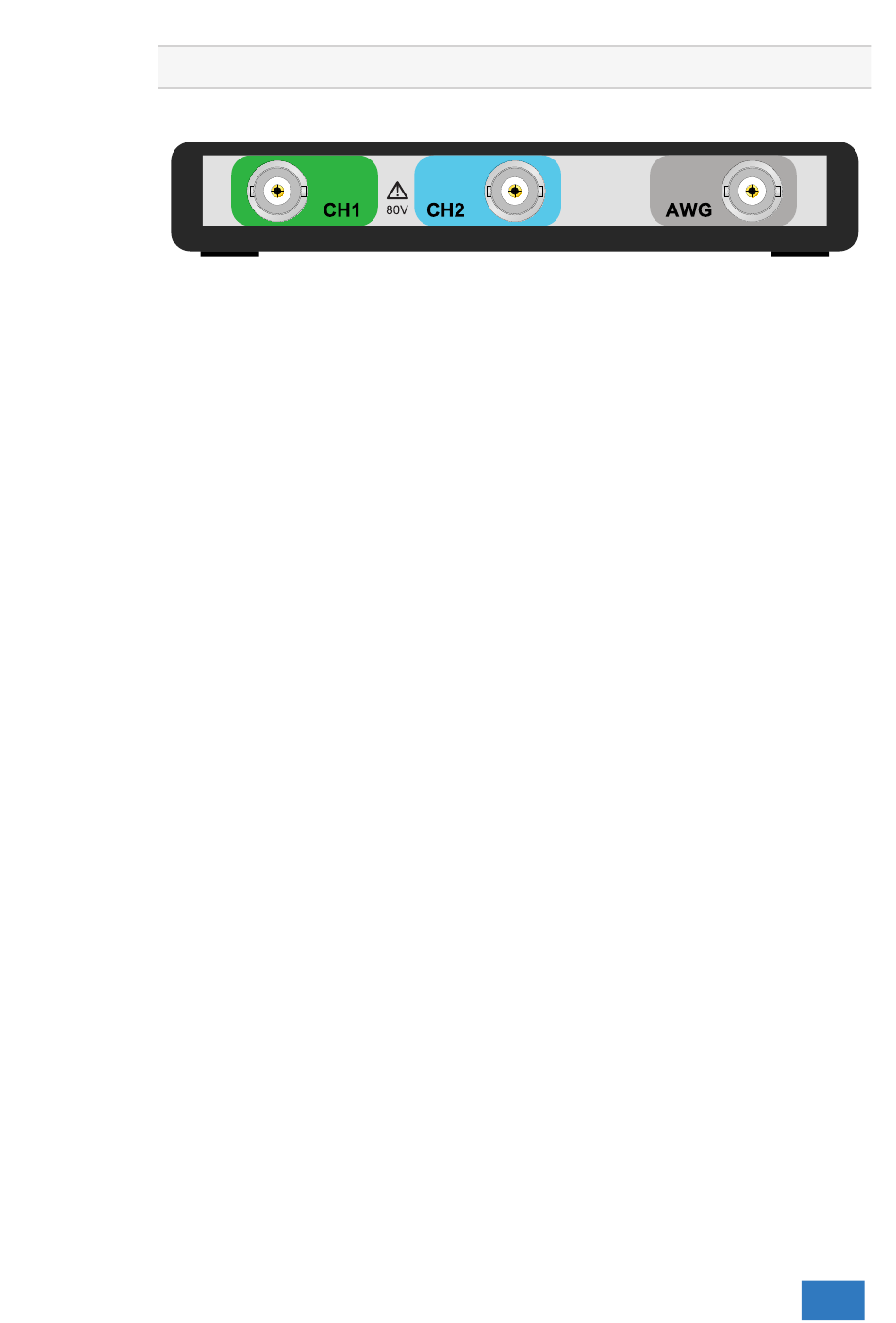

Figure 7.1: Front panel

Front panel
