Front panel

7.1

CH1 and CH2 input connectors

The CH1 and CH2 BNC connectors are the main inputs of the ac-
quisition system. The outside of the BNC connectors is connected
to the ground of the Handyscope HS5. Connecting the outside of
the BNC connector to a potential other than ground will result in
a short circuit that may damage the device under test, the Handy-
scope HS5 and the computer.
7.2

AWG output connector

The AWG BNC connector is the output of the internal Arbitrary
Waveform Generator. The outside of this BNC connector is con-
nected to the ground of the Handyscope HS5.
7.3

Power indicator

A power indicator is situated at the top cover of the instrument.
It is lit when the Handyscope HS5 is powered.

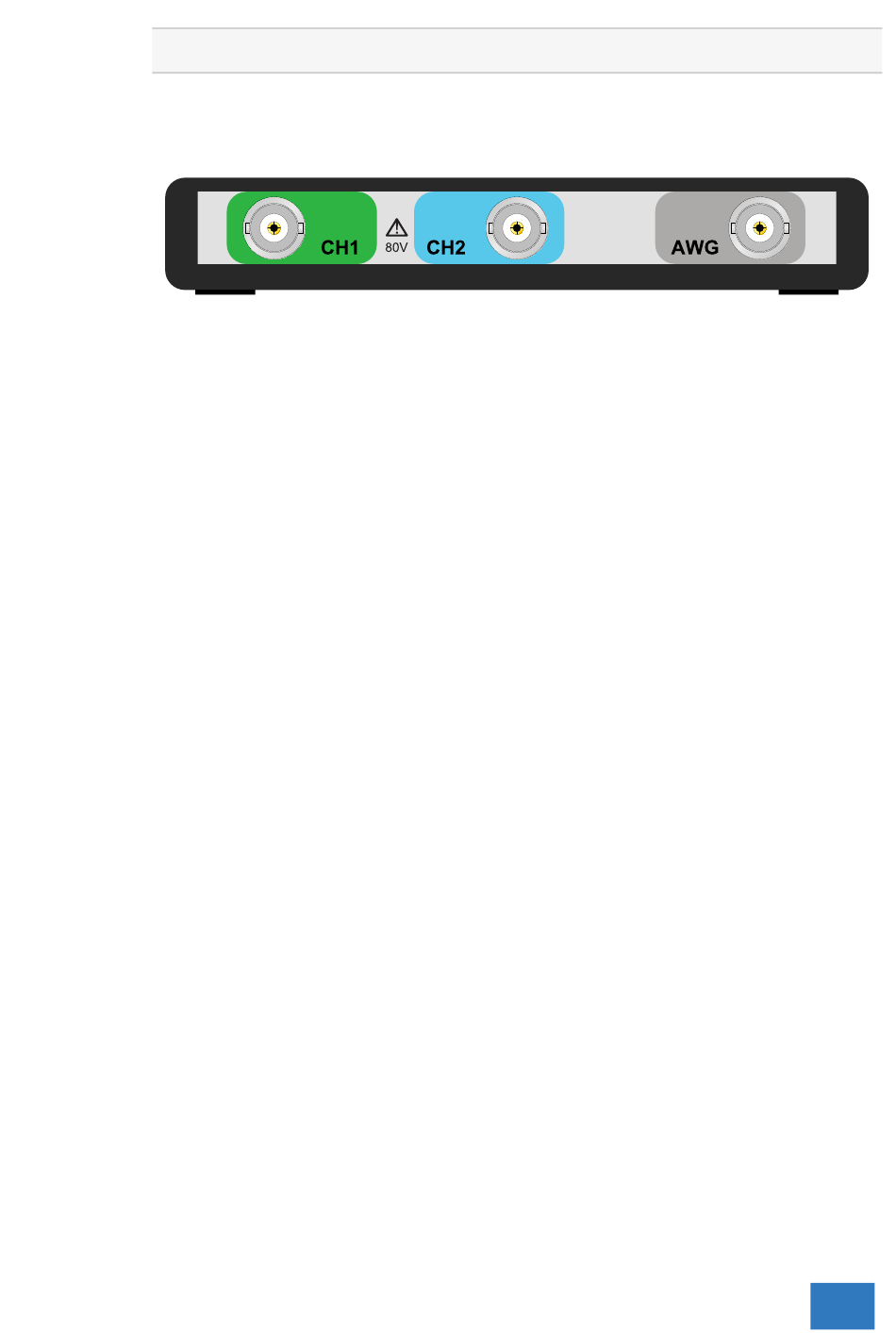

Figure 7.1: Front panel
