Download The Sample Program To The Processor - ProSoft inRAx MVI56-DEM User Manual

Start Here
1.5

Download the Sample Program to the Processor

Note: The key switch on the front of the ControlLogix module must be in the REM position.

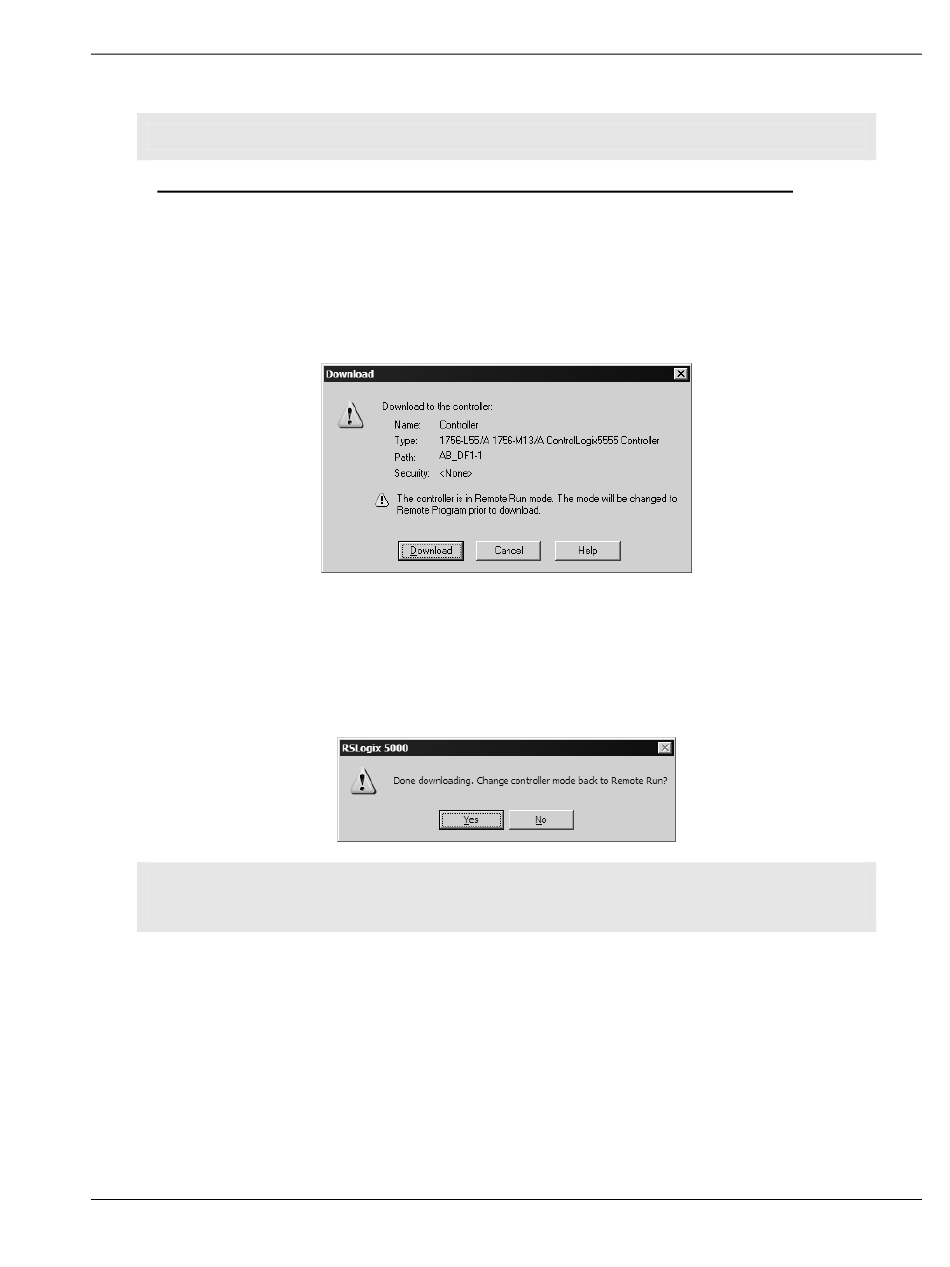

To download the sample program from RSLogix 5000 to the ControlLogix processor
If you are not already online to the processor, open the Communications
1
menu, and then choose Download. RSLogix will establish communication
with the processor.
When communication is established, RSLogix will open a confirmation dialog
2
box. Click the Download button to transfer the sample program to the
processor.
RSLogix will compile the program and transfer it to the processor. This
3
process may take a few minutes.
When the download is complete, RSLogix will open another confirmation
4
dialog box. Click OK to switch the processor from Program mode to Run
mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to
interpret and correct the error.
