Connect Your Pc To The Processor - ProSoft inRAx MVI56-DEM User Manual

MVI56-DEM ♦ ControlLogix Platform
Honeywell DE Communication Module
1.4

Connect your PC to the Processor

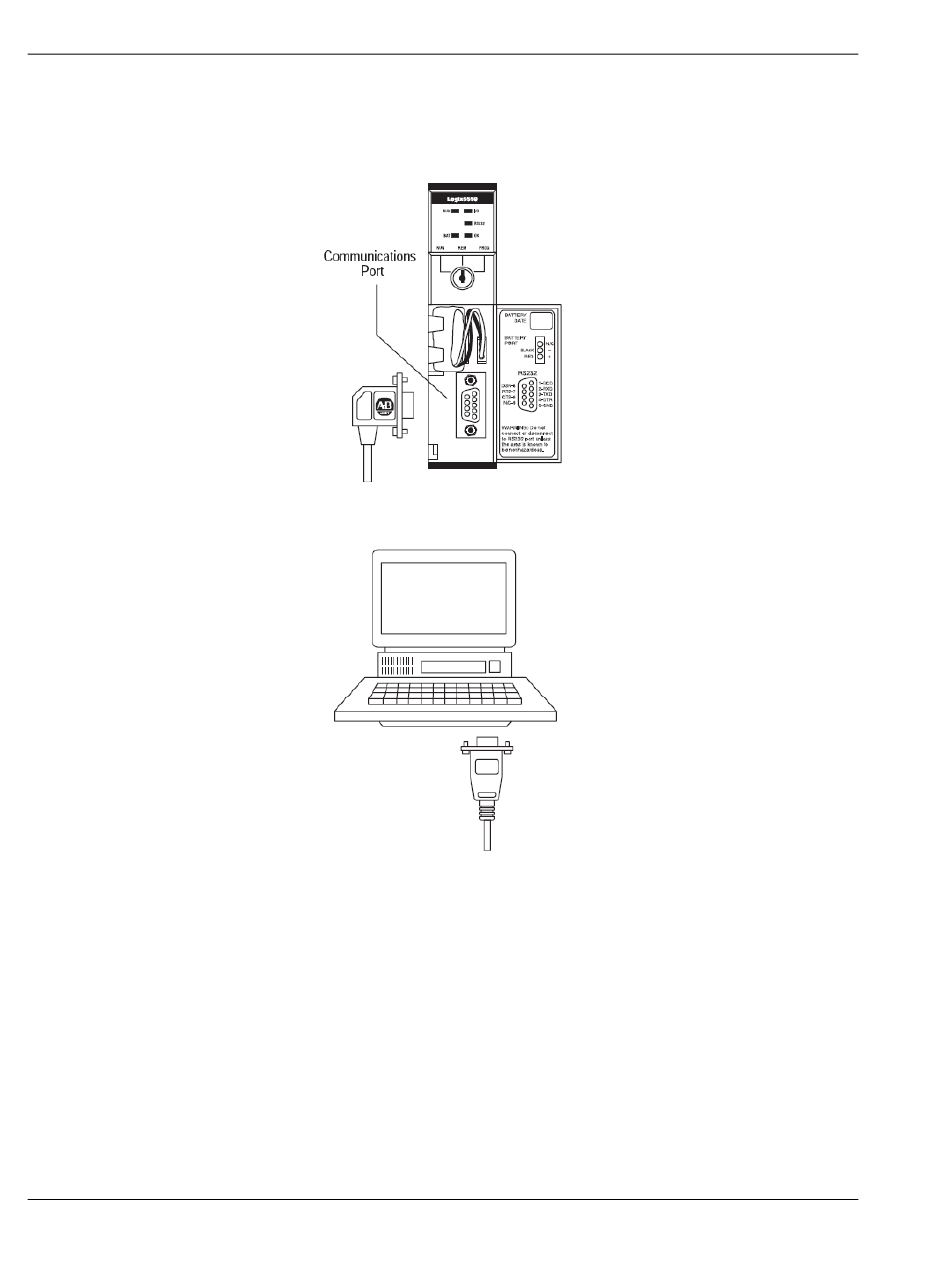

Connect the right-angle connector end of the cable to your controller at the
1
communications port.
Connect the straight connector end of the cable to the serial port on your
2
computer.
